CV20L-UEMDXW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )CV20

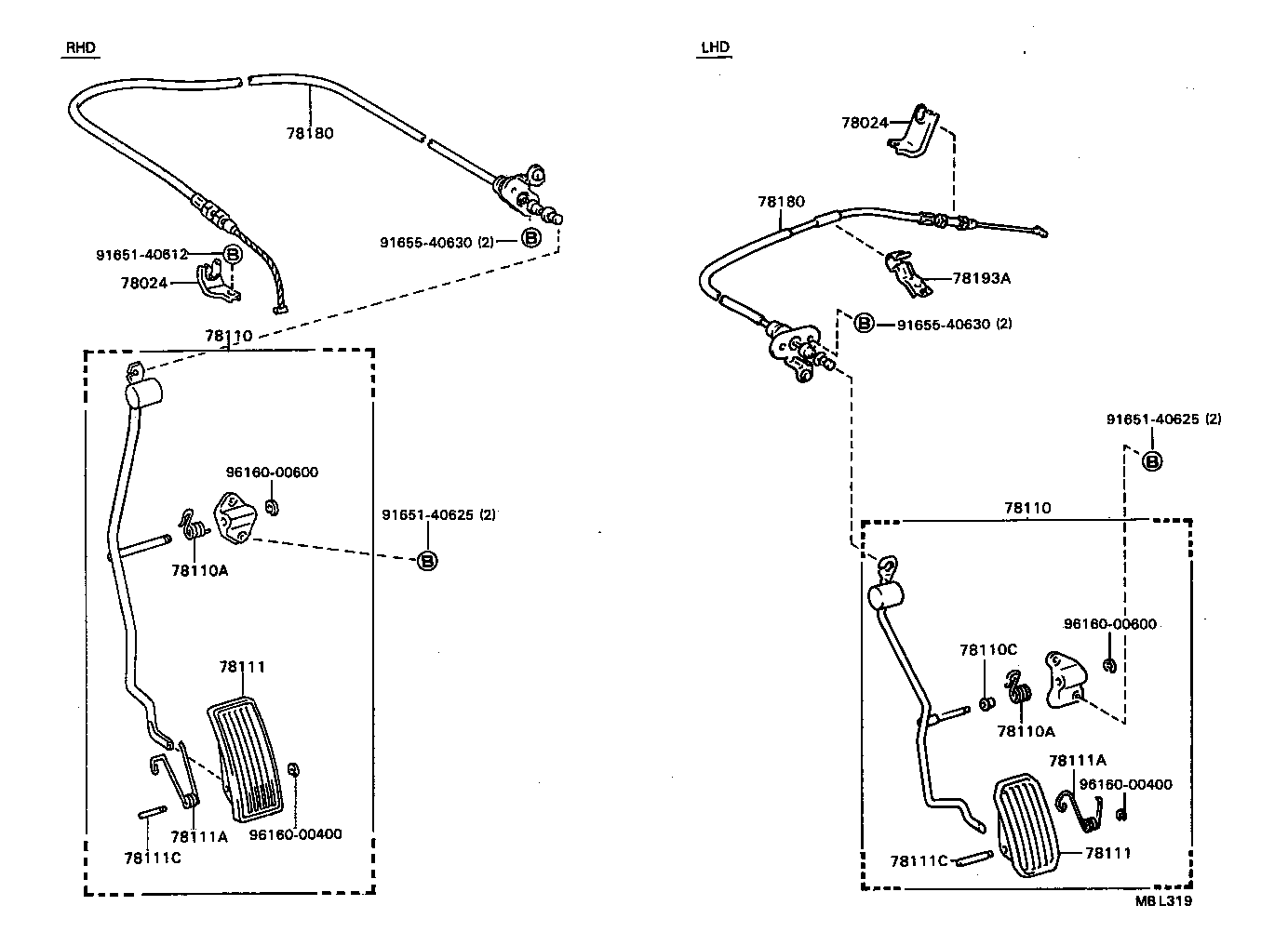

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32050 |
CV20..LHD |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32050 |
CV20..LHD |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-32100 |
CV20,SV21,25,VZV21..LHD..5F |
1 | ||
| 78120-32100 |
CV20,SV2#..LHD..5F |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-32100 |
CV20,SV21,25,VZV21..LHD..5F |
1 | ||
| 78120-32100 |
CV20,SV2#..LHD..5F |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23069 |
CV20,SV21,25,VZV21..5F |
1 | ||
| 90508-23069 |
CV20,SV2#..5F |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23069 |
CV20,SV21,25,VZV21..5F |
1 | ||
| 90508-23069 |
CV20,SV2#..5F |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-12023 |
CV20,SV2#..LHD |
1 | ||
| 90386-12023 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
CV20,SV2#..LHD |
1 | ||
| 78111-32010 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
CV20,SV2#..LHD |
1 | ||
| 78111-32010 |
CV20,SV2#,VZV21..LHD |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18046 |
VZV21..5F;CV20,SV2#..LHD |
1 | ||
| 90508-18046 |
VZV21..5F;CV20,SV2#..LHD |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18046 |
VZV21..5F;CV20,SV2#..LHD |
1 | ||
| 90508-18046 |
VZV21..5F;CV20,SV2#..LHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
CV20,SV2#,VZV21 |
1 | ||
| 90249-05001 |
CV20,SV2# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
CV20,SV2#,VZV21 |
1 | ||
| 90249-05001 |
CV20,SV2# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-32110 |
CV20..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-32110 |
CV20..LHD |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-32030 |
CV20..LHD |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40625 | ||||
| 91655-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
