CV20L-UEMDXW (1986)
Toyota Camry
Production
Oct 1986
-
Aug 1988
Engine
2CT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610- )2CT

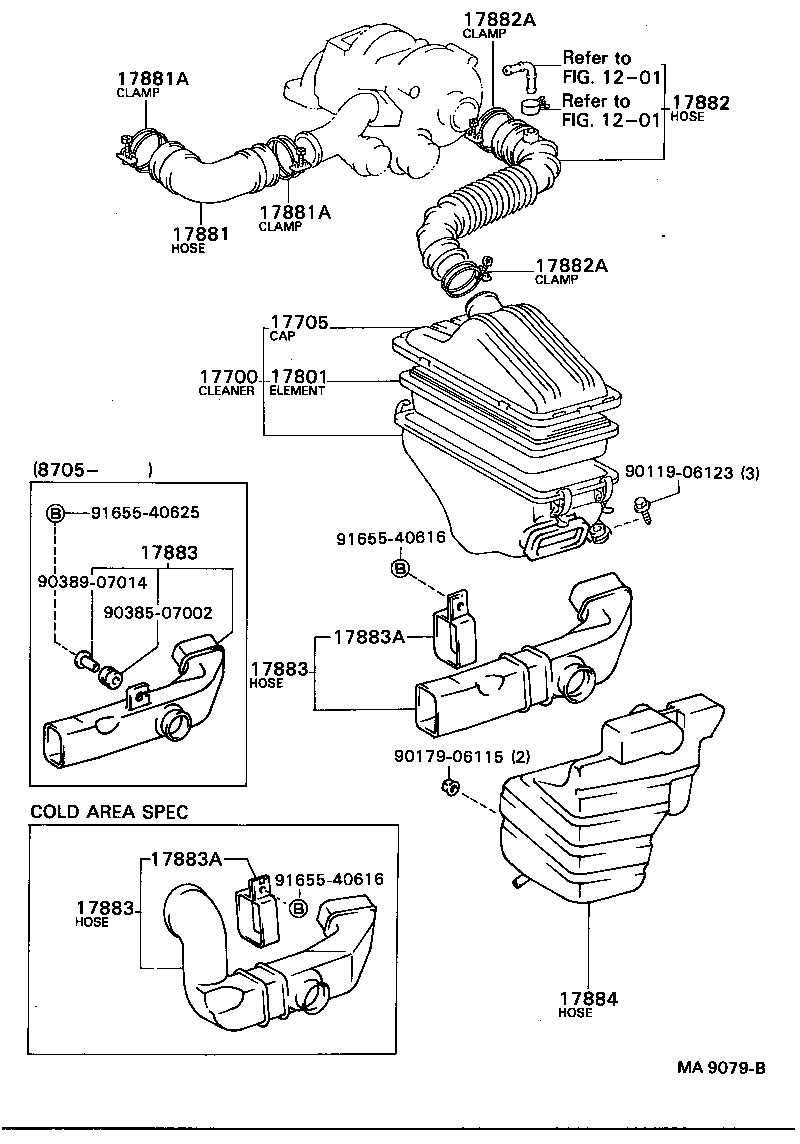

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-64200 |
2CT..CV20 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-64030 |
2CT..CV20 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64040 |
2CT..CV20 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17341-64020 |
2CT..CV20 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70001 |
2CT..CV20 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70001 |
2CT..CV20 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-64050 |
2CT..CV20 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10670 |
2CT..CV20 AIR CLEANER SIDE |
1 | ||
| 96111-10670 |
2CT..CV20 AIR CLEANER SIDE |
1 | ||
| 90460-75001 |
2CT..CV20 TURBO SIDE |
1 | ||
| 90460-75001 |
2CT..CV20 TURBO SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10670 |
2CT..CV20 AIR CLEANER SIDE |
1 | ||
| 96111-10670 |
2CT..CV20 AIR CLEANER SIDE |
1 | ||
| 90460-75001 |
2CT..CV20 TURBO SIDE |
1 | ||
| 90460-75001 |
2CT..CV20 TURBO SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-63110 |
2CT..CV20 |
1 | ||
| 17882-63110 |
2CT..CV20 |
1 | ||
| 17882-64040 |
2CT..CV20..LHD COLD SPEC |
1 | ||
| 17882-64040 |
2CT..CV20 COLD SPEC |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-63110 |
2CT..CV20 |
1 | ||
| 17882-63110 |
2CT..CV20 |
1 | ||
| 17882-64040 |
2CT..CV20..LHD COLD SPEC |
1 | ||
| 17882-64040 |
2CT..CV20 COLD SPEC |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-63110 |
2CT..CV20 |
1 | ||
| 17882-63110 |
2CT..CV20 |
1 | ||
| 17882-64040 |
2CT..CV20..LHD COLD SPEC |
1 | ||
| 17882-64040 |
2CT..CV20 COLD SPEC |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01046 |
2CT..CV20 |
1 | ||
| 90460-01046 |
2CT..CV20..LHD COLD SPEC |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01046 |
2CT..CV20 |
1 | ||
| 90460-01046 |
2CT..CV20..LHD COLD SPEC |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-63030 |
2CT..CV20 |
1 | ||
| Common parts | ||||
| 90119-06123 | ||||
| 90179-06115 | ||||
| 90385-07002 | ||||
| 90389-07014 | ||||
| 91655-40616 | ||||
| 91655-40625 | ||||
| Linked diagrams | ||||
| 1201 | ||||
