CV11L-UEMEXW (1985)
Toyota Camry
Production
Aug 1985
-
Oct 1986
Engine
2CTL
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )2CTL

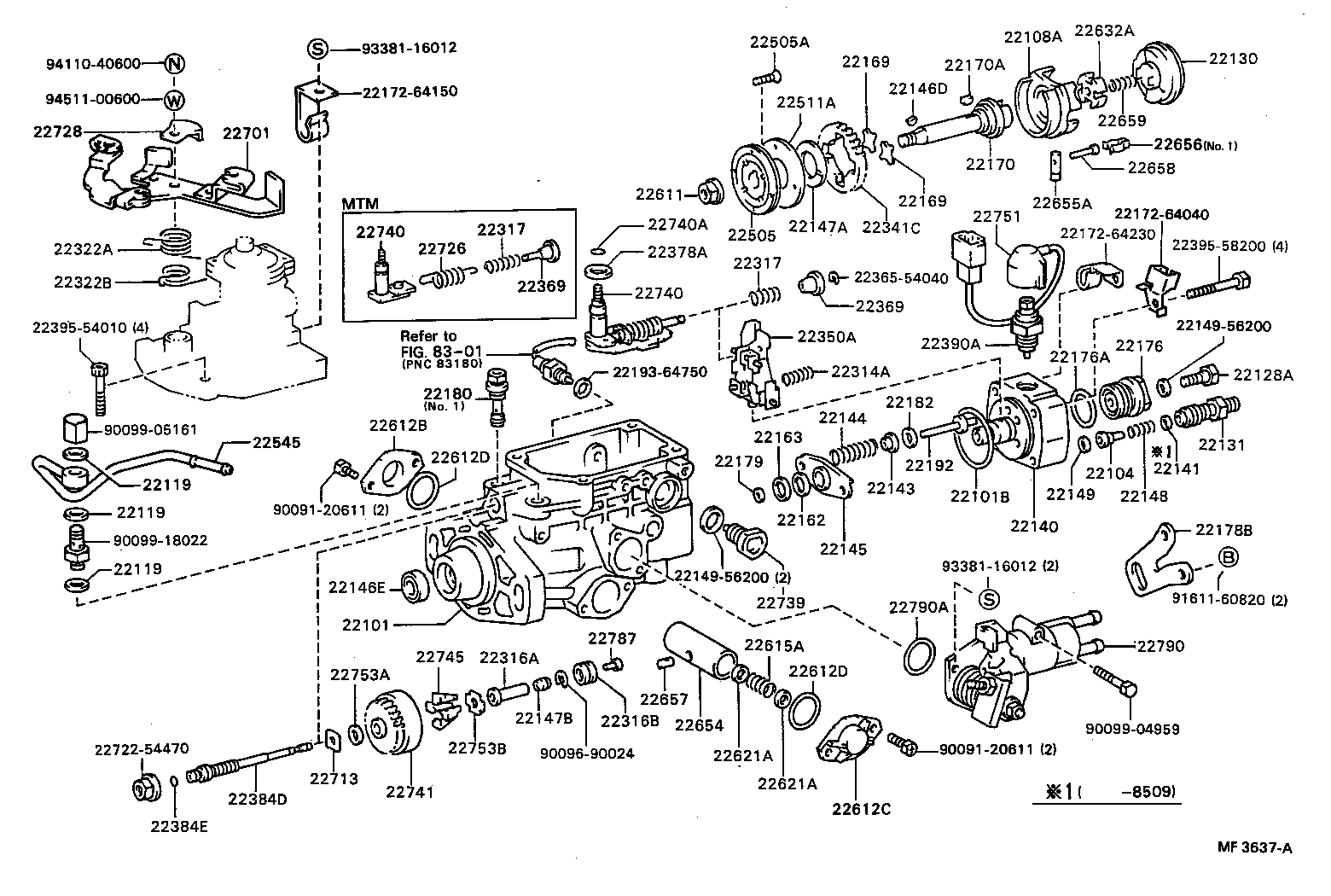

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64010 |
2CTL..CV11..5F |
1 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
2CTL..CV11 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-54170 |
2CTL..CV11 |
4 | ||
| 22190-64740 |
2CTL..CV11 |
4 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54250 |
2CTL..CV11 |
4 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
2CTL..CV11 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-64850 |
2CTL..CV11 NO.2 |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54351 |
2CTL..CV11 MARK 28 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64010 |
2CTL..CV11..5F |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-64010 |
2CTL..CV11..5F |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64850 |
2CTL..CV11..5F |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
2CTL..CV11..5F |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
2CTL..CV11..5F |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
2CTL..CV11 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-64850 |
2CTL..CV11 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54490 |
2CTL..CV11 NO.2 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-54310 |
2CTL..CV11 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54010 |
2CTL..CV11..5F |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-54010 |
2CTL..CV11..5F |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-64850 |
2CTL..CV11 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2CTL..CV11 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-64040 | ||||
| 22172-64150 | ||||
| 22172-64230 | ||||
| 22193-64750 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90091-20611 | ||||
| 90096-90024 | ||||
| 90099-04959 | ||||
| 90099-05161 | ||||
| 90099-18022 | ||||
| 91611-60820 | ||||
| 93381-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 8301 | ||||
