CV10R-UEMEXW (1983)

Toyota Camry

Production Aug 1983 - Aug 1985
Engine 1CTL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1CTL,2CTL

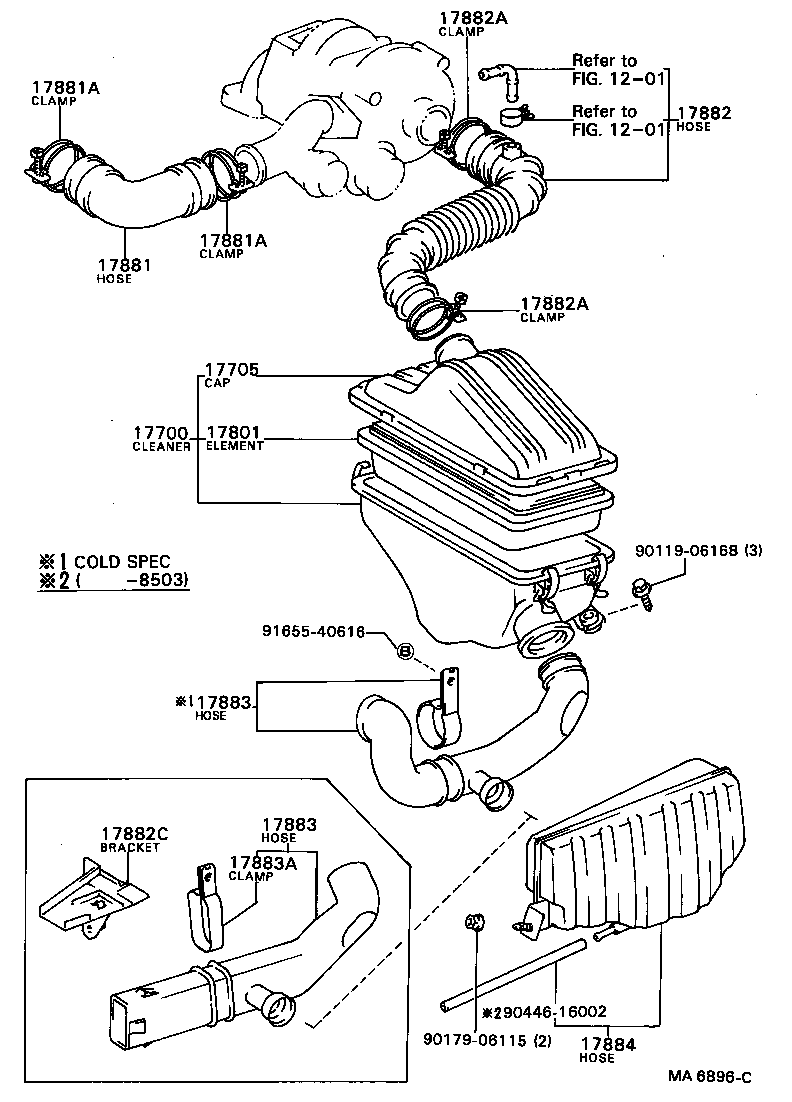

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17801 17881 17881A 17881A 17882 17882A 17882A 17882C 17883 17883 17883A 17884 9011906168 9017906115 9044616002 9165540616
Part # Description Qty Price
17882C - BRACKET(FOR COOL AIR INTAKE)
53849-32010

1CTL..CV10

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-32030

1CTL..CV10

COLD SPEC

 1
17882-32040

1CTL..CV10

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-32030

1CTL..CV10

COLD SPEC

 1
17882-32040

1CTL..CV10

 1
Common parts
90119-06168
90179-06115
90446-16002
91655-40616
Linked diagrams
1201
