ACV40R-AEMNKW (2009)
Toyota Camry

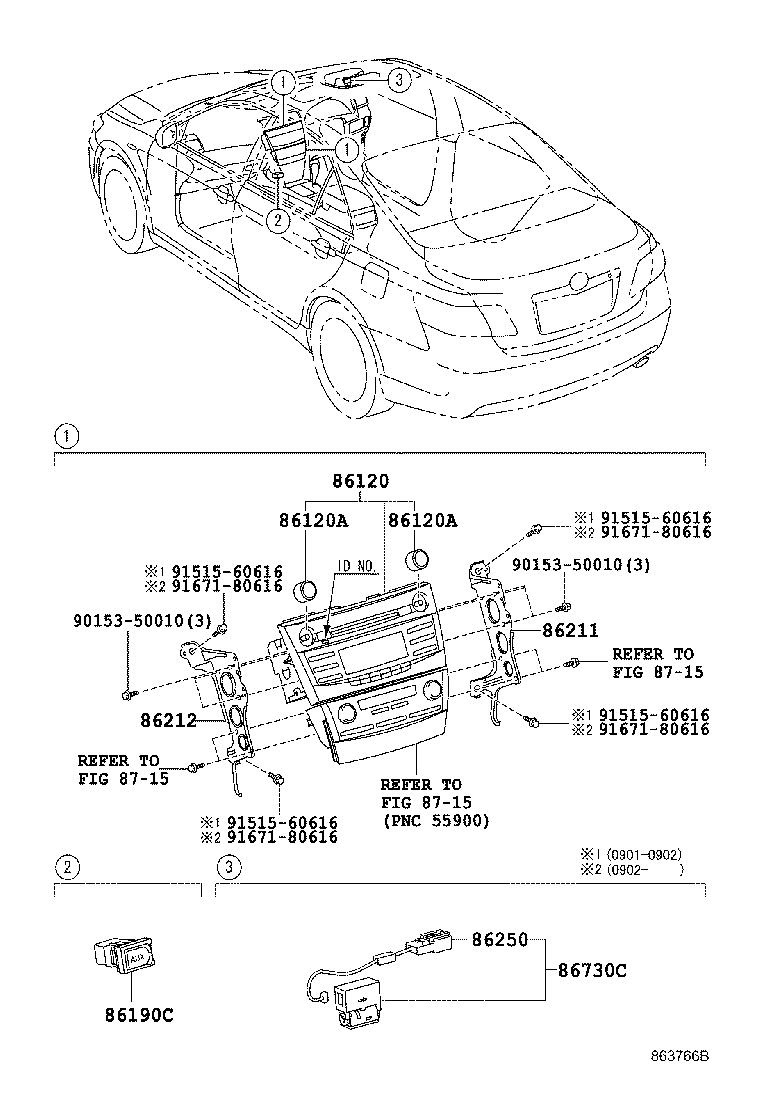

ILLUST NO. 1 OF 2(0901- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-33870 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12821,AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER |
1 | ||
| 86120-33850 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12820,AUDIO-AM9K/FM, CD 2W 6SPEAKER |
1 | ||
| 86120-33D70 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12898,AUDIO-AM9K/FM,6CD CHANGER,6SPEAKER |
1 | ||
| 86120-33D60 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12897,AUDIO-AM9K/FM,CD,6SPEAKER |
1 | ||
| 86120-33860 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12823,AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER |
1 | ||
| 86120-33D80 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12899,AUDIO-AM10K/FM,6CD CHANGER,6SPEAKER |
1 | ||
| 86120-33D80 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12899 |
1 | ||
| 86120-33D60 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12897 |
1 | ||
| 86120-33860 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12823 |
1 | ||
| 86120-33870 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12821 |
1 | ||
| 86120-33D70 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12898 |
1 | ||
| 86120-33850 |
ACV40,GSV40..LE,XLE FUJITSU TEN,ID=12820 |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90011-23013 |
ACV40,GSV40..LE,XLE AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER |
2 | ||
| 90011-23013 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER |
2 | ||
| 90010-23025 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM,6CD CHANGER,6SPEAKER |
2 | ||
| 90010-23025 |
ACV40,GSV40..LE,XLE AUDIO-AM10K/FM,6CD CHANGER,6SPEAKER |
2 | ||
| 90011-23013 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM, CD 2W 6SPEAKER |
2 | ||
| 90010-23025 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM,CD,6SPEAKER |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90011-23013 |
ACV40,GSV40..LE,XLE AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER |
2 | ||
| 90011-23013 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER |
2 | ||
| 90010-23025 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM,6CD CHANGER,6SPEAKER |
2 | ||
| 90010-23025 |
ACV40,GSV40..LE,XLE AUDIO-AM10K/FM,6CD CHANGER,6SPEAKER |
2 | ||
| 90011-23013 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM, CD 2W 6SPEAKER |
2 | ||
| 90010-23025 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM,CD,6SPEAKER |
2 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48010 |
ACV40,GSV40..LE,XLE AUDIO-AM10K/FM,6CD CHANGER,6SPEAKER |
1 | ||
| 86190-48010 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM,6CD CHANGER,6SPEAKER |
1 | ||
| 86190-48010 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM,CD,6SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-33210 |
ACV40,GSV40 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-33210 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91515-60616 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(0901- )LE,XLE ; (0903- )COMF,PREM
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04157 |
ACV40..LE |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04157 |
ACV40..LE |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04148 |
ACV40,GSV40 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04198 |
GSV40..XLE;ACV40..RHD;ACV40..LHD..5FC..LE TYPE A:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91621-J0612 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
