ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

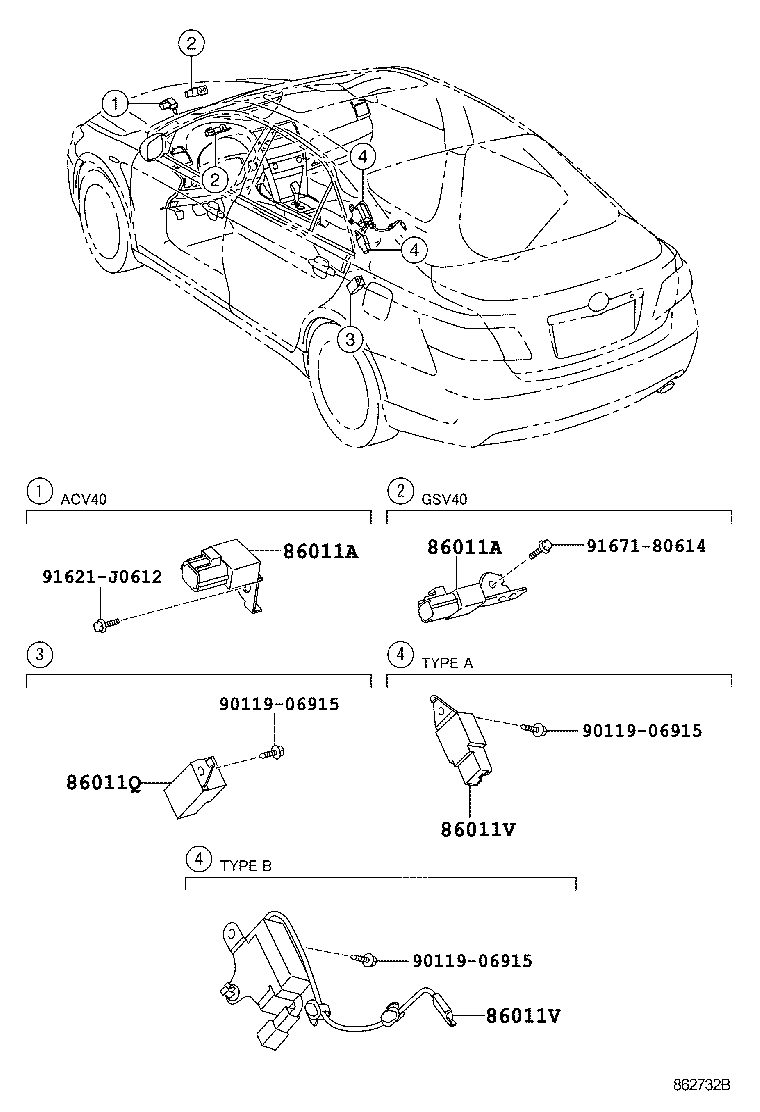

ILLUST NO. 2 OF 2(0601-0901)LE,XLE ; (0712-0903)COMF,PREM

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 86011V 86011V 9011906915 9011906915 9011906915 91621J0612 9167180614
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04157

ACV40..LE

 1
86011A - CONDENSER, RADIO SETTING
90980-04157

ACV40..LE

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

ACV40,GSV40

 1
86011V - CONDENSER, RADIO SETTING
90980-04198

GSV40..XLE;ACV40..RHD;ACV40..LHD..5FC..LE

TYPE A:REFER ILLUST.

 1
86011V - CONDENSER, RADIO SETTING
90980-04198

GSV40..XLE;ACV40..RHD;ACV40..LHD..5FC..LE

TYPE A:REFER ILLUST.

 1
Common parts
90119-06915
91621-J0612
91671-80614

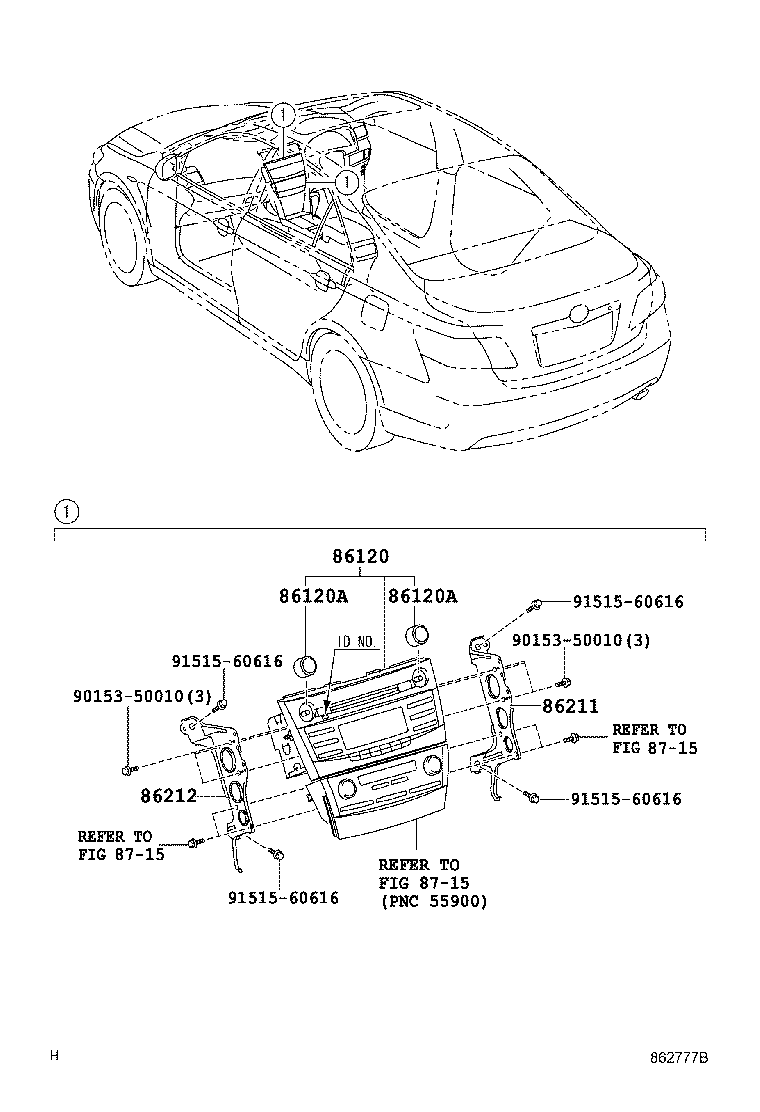

ILLUST NO. 1 OF 2(0601-0901)RHD

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86211 86212 8715 8715 8715 9015350010 9015350010 9151560616 9151560616 9151560616 9151560616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-33870

ACV40,GSV40..LE,XLE

FUJITSU TEN,ID=12821,AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER

 1
86120-33850

ACV40,GSV40..LE,XLE

FUJITSU TEN,ID=12820,AUDIO-AM9K/FM, CD 2W 6SPEAKER

 1
86120-33860

ACV40,GSV40..LE,XLE

FUJITSU TEN,ID=12823,AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER

 1
86120-33860

ACV40,GSV40..LE,XLE

FUJITSU TEN,ID=12823

 1
86120-33870

ACV40,GSV40..LE,XLE

FUJITSU TEN,ID=12821

 1
86120-33850

ACV40,GSV40..LE,XLE

FUJITSU TEN,ID=12820

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-23013

ACV40,GSV40..LE,XLE

AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER

 2
90011-23013

ACV40,GSV40..LE,XLE

AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER

 2
90011-23013

ACV40,GSV40..LE,XLE

AUDIO-AM9K/FM, CD 2W 6SPEAKER

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-23013

ACV40,GSV40..LE,XLE

AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER

 2
90011-23013

ACV40,GSV40..LE,XLE

AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER

 2
90011-23013

ACV40,GSV40..LE,XLE

AUDIO-AM9K/FM, CD 2W 6SPEAKER

 2
86211 - BRACKET, RADIO, NO.1
86211-33210

ACV40,GSV40

 1
86212 - BRACKET, RADIO, NO.2
86212-33210

ACV40,GSV40

 1
Common parts
90153-50010
91515-60616
Linked diagrams
8715
