ACV40R-AEMNKW (2006)
Toyota Camry
ILLUST NO. 1 OF 8(0601- )ACV40
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACV40,GSV40 DENSO |
1 | ||
| 83530-60020 |
ACV40,GSV40 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ACV40..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-33440 |
ACV40 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33080 |
ACV40 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ACV40 |
1 | ||
| Common parts | ||||
| 87616-42020 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
ILLUST NO. 4 OF 8(0601- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
ACV40,GSV40 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
ACV40,GSV40 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33320 |
ACV40,GSV40 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33730 |
ACV40,GSV40..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69015 |
ACV40,GSV40 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACV40,GSV40 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-33010 |
ACV40..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ACV40..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ACV40..5F |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ACV40,GSV40 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
ACV40,GSV40 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02027 |
ACV40,GSV40 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02025 |
ACV40,GSV40 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-33120 |
ACV40,GSV40..RHD |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-33160 |
ACV40,GSV40..RHD |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90119-06941 | ||||
| 90179-06115 | ||||
| 90179-06323 | ||||
| 91641-C0612 | ||||
| 93313-14010 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 6 OF 8(0601- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ACV40,GSV40 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42080 |
ACV40,GSV40..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42080 |
ACV40,GSV40..RHD |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-33160 |
ACV40,GSV40..LE,XLE |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-33010 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM, CD 2W 6SPEAKER |
1 | ||
| 84250-33010 |
ACV40,GSV40..LE,XLE AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER |
1 | ||
| 84250-33010 |
ACV40,GSV40..LE,XLE AUDIO-AM9K/FM, CD CHANGER 2W 6SPEAKER |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
ACV40,GSV40 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
ACV40,GSV40 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33450 |
ACV40,GSV40..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33450 |
ACV40,GSV40..RHD |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-33050 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||

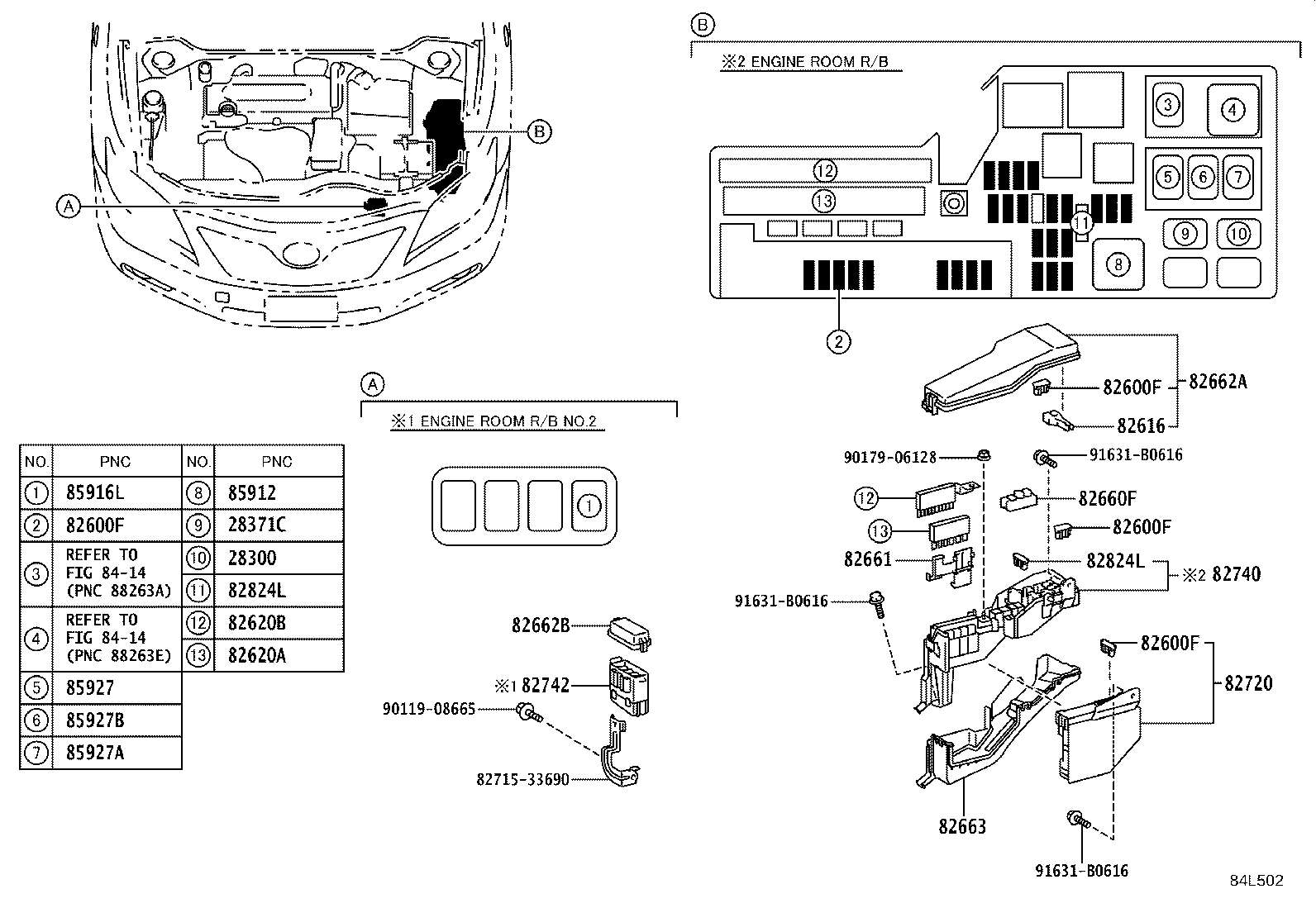

ILLUST NO. 2 OF 8(0601- )ACV40
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30020 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH |
1 | ||

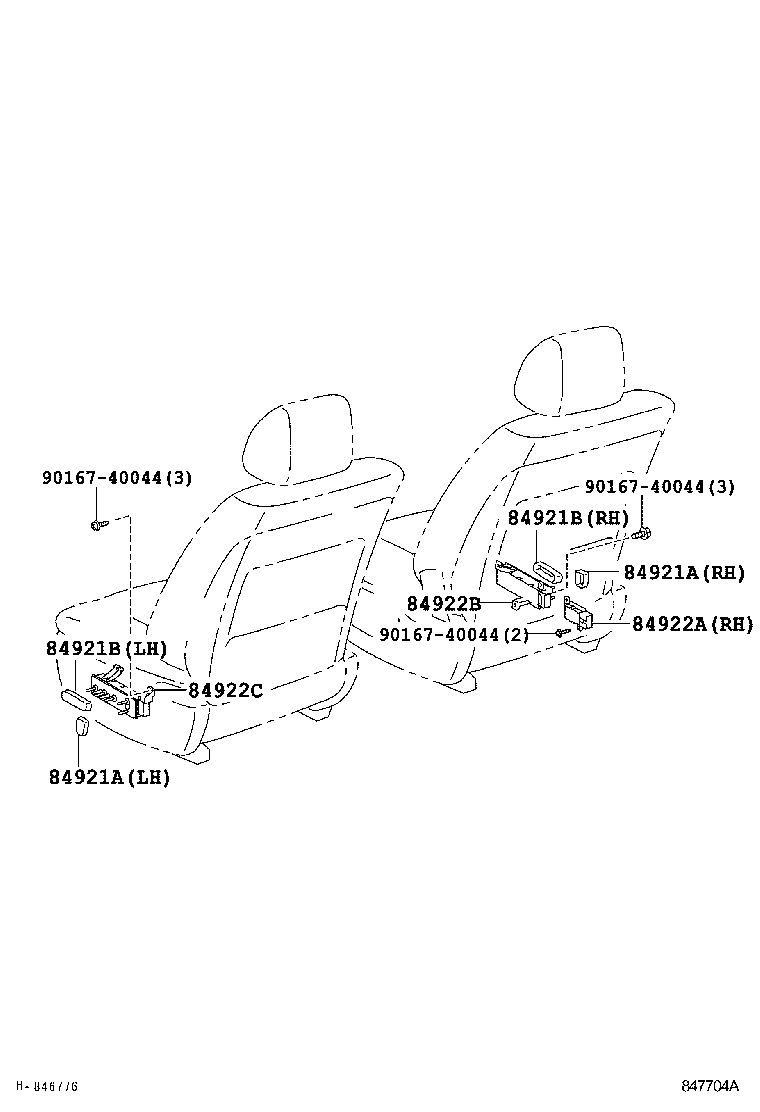

ILLUST NO. 7 OF 8(0601- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-58010B3 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84921-58010E2 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921-58010B3 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84921-58010E2 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-58010B3 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84921-58010E2 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921-58010B3 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84921-58010E2 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-58020E2 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921-58020E2 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921-58020B4 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84921-58020B4 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-58020E2 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921-58020E2 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4# |
2 | ||
| 84921-58020B4 |
ACV40..5FC..COMF;ACV40,GSV40..LE,XLE *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84921-58020B4 |
ACV40,GSV40..LE,XLE *DRP POWER SEAT PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60040E2 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE,GREGE,TRIM4# |
1 | ||
| 84920-60040B4 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 84920-60040E2 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4# |
1 | ||
| 84920-60040B4 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-58010 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE |
1 | ||
| 84922-58010 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60110 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE |
1 | ||
| 84922-60110 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||

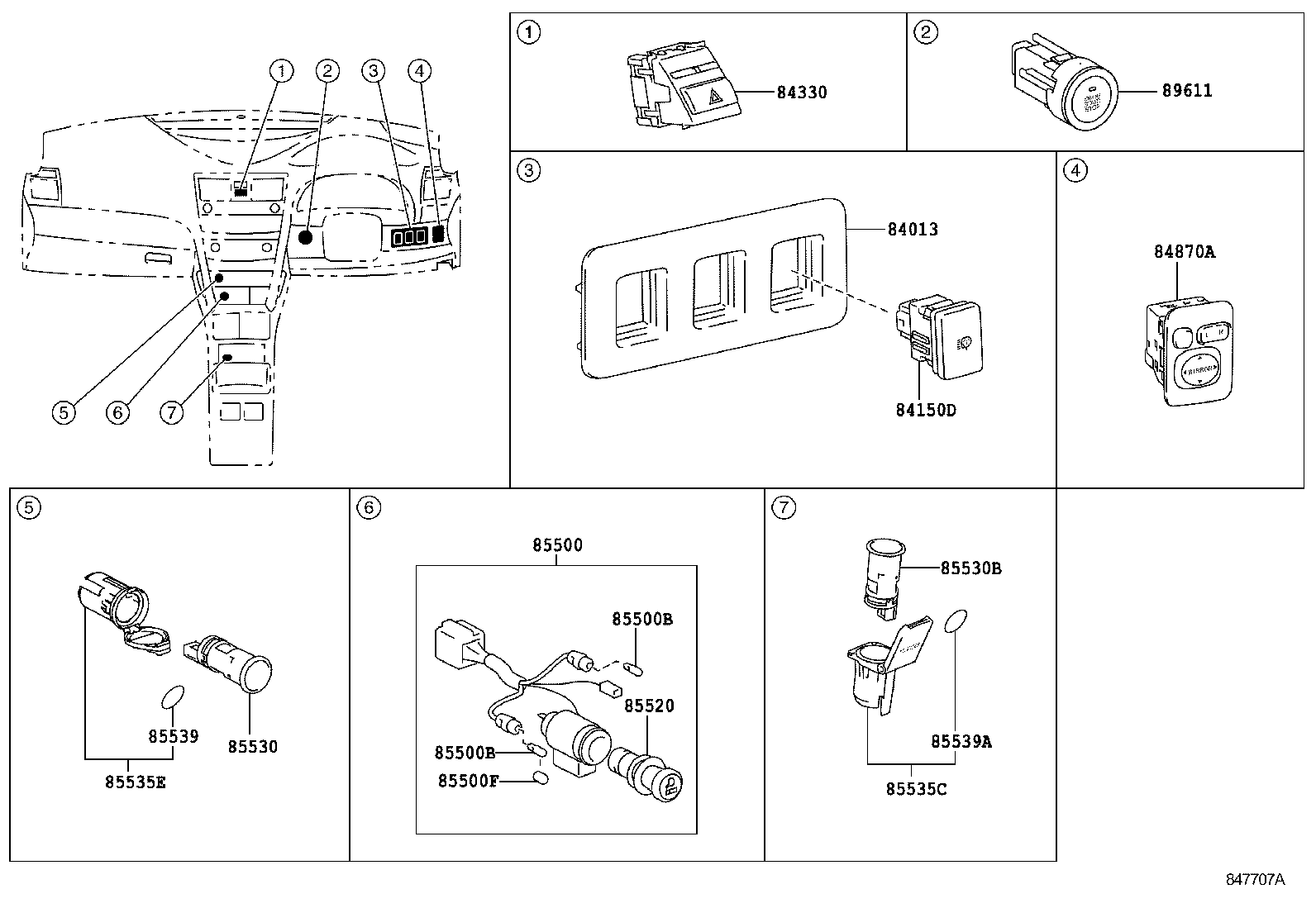

ILLUST NO. 5 OF 8(0601- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84013 - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-33020B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 84013-33020E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-33050 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-33080B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 84332-33080E0 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-33170E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 84870-33170B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-33050 |
ACV40,GSV40 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
ACV40,GSV40 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
ACV40,GSV40 14V 1.4W |
2 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
ACV40,GSV40 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACV40,GSV40 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ACV40,GSV40 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-60100C0 |
ACV40,GSV40 BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
ACV40,GSV40 |
1 | ||

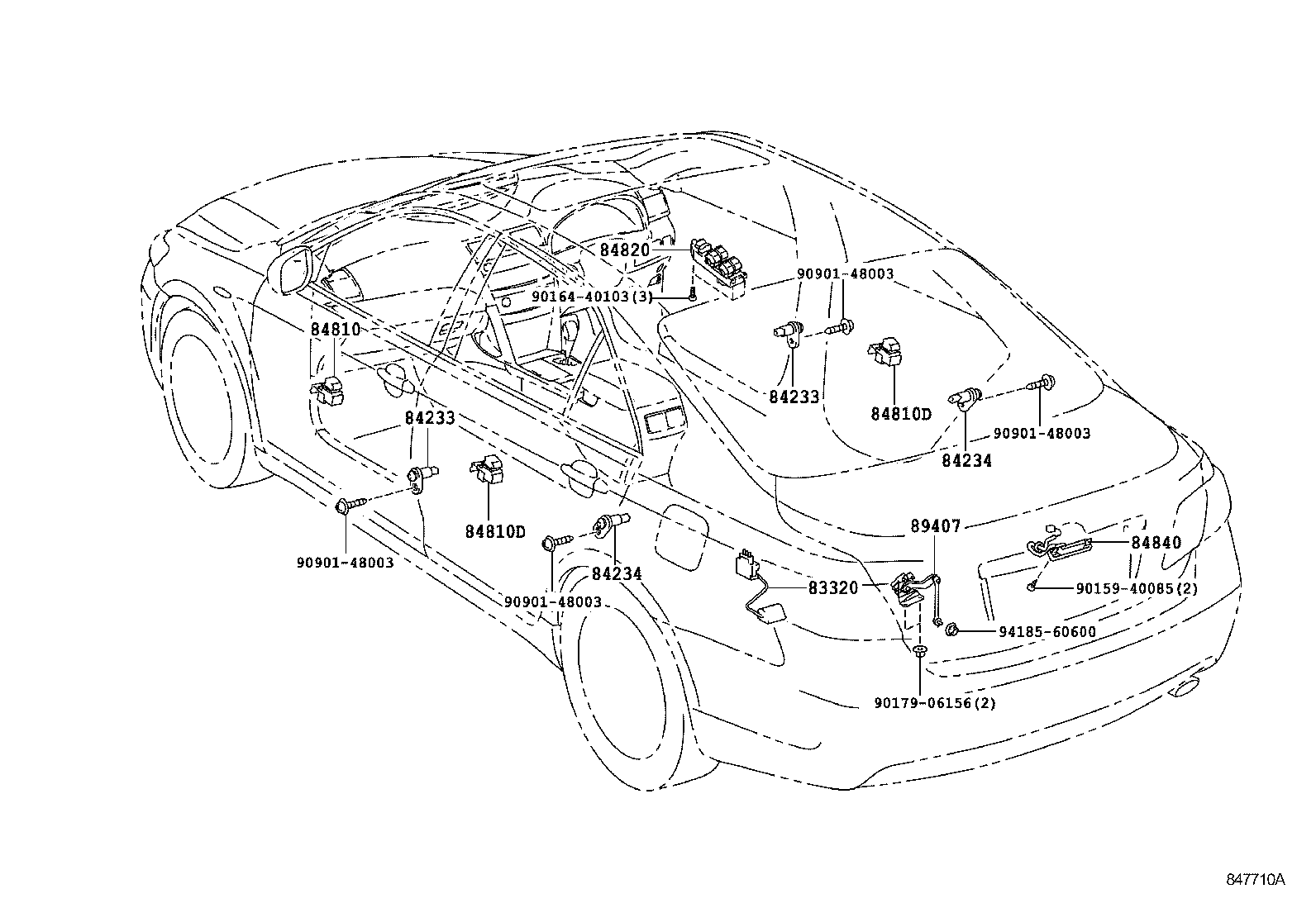

ILLUST NO. 8 OF 8(0601- )RHD
DOOR,ROOF,FLOOR & LAGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33100 |
ACV40 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACV40,GSV40 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACV40,GSV40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACV40,GSV40 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACV40,GSV40 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ACV40,GSV40 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ACV40,GSV40 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ACV40,GSV40 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52200 |
ACV40,GSV40..RHD |
1 | ||
| 84820-33260 |
ACV40,GSV40..RHD |
1 | ||
| 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-41010 |
GSV40..PREM;ACV40,GSV40..RHD |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90164-40103 | ||||
| 90179-06156 | ||||
| 90901-48003 | ||||
| 94185-60600 | ||||
ILLUST NO. 3 OF 8(0601- )ACV40
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2GRFE..GSV40;2AZFE..ACV40..RHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ACV40,GSV40 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ACV40,GSV40 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ACV40,GSV40 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ACV40,GSV40 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ACV40,GSV40 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ACV40,GSV40 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ACV40,GSV40 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33030 |
ACV40,GSV40 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-07050 |
ACV40,GSV40 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-33010 |
ACV40 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-07020 |
ACV40,GSV40 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-33140 |
ACV40 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-33160 |
ACV40,GSV40 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33070 |
ACV40,GSV40 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-33120 |
ACV40..RHD |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33020 |
ACV40 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-33020 |
ACV40,GSV40 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ACV40,GSV40 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ACV40,GSV40 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ACV40,GSV40 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACV40,GSV40 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ACV40 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACV40 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ACV40 |
1 | ||
| Common parts | ||||
| 82715-33690 | ||||
| 90119-08665 | ||||
| 90179-06128 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
