ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

Click highlighted areas on diagram

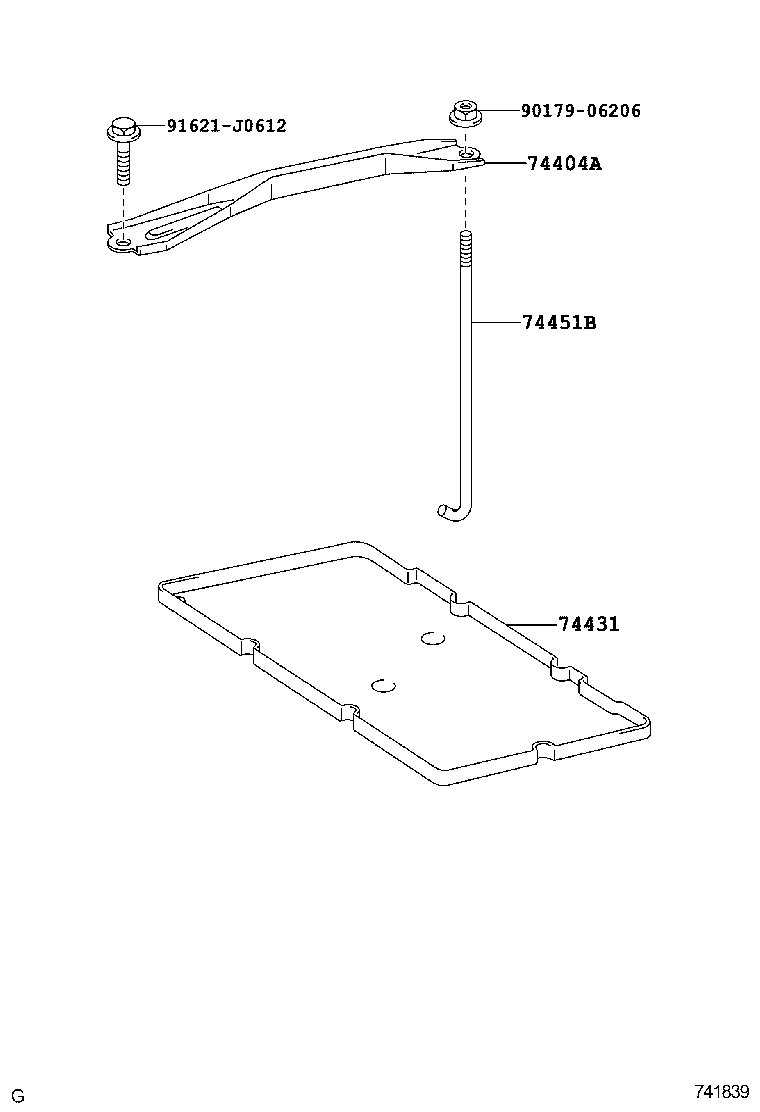

diagram 74404A 74431 74451B 9017906206 91621J0612
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-33100

ACV40,GSV40

 1
74431 - TRAY, BATTERY
74431-33011

ACV40,GSV40

 1
74451B - BOLT, BATTERY CLAMP
74452-33010

ACV40,GSV40

 1
Common parts
90179-06206
91621-J0612
