ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

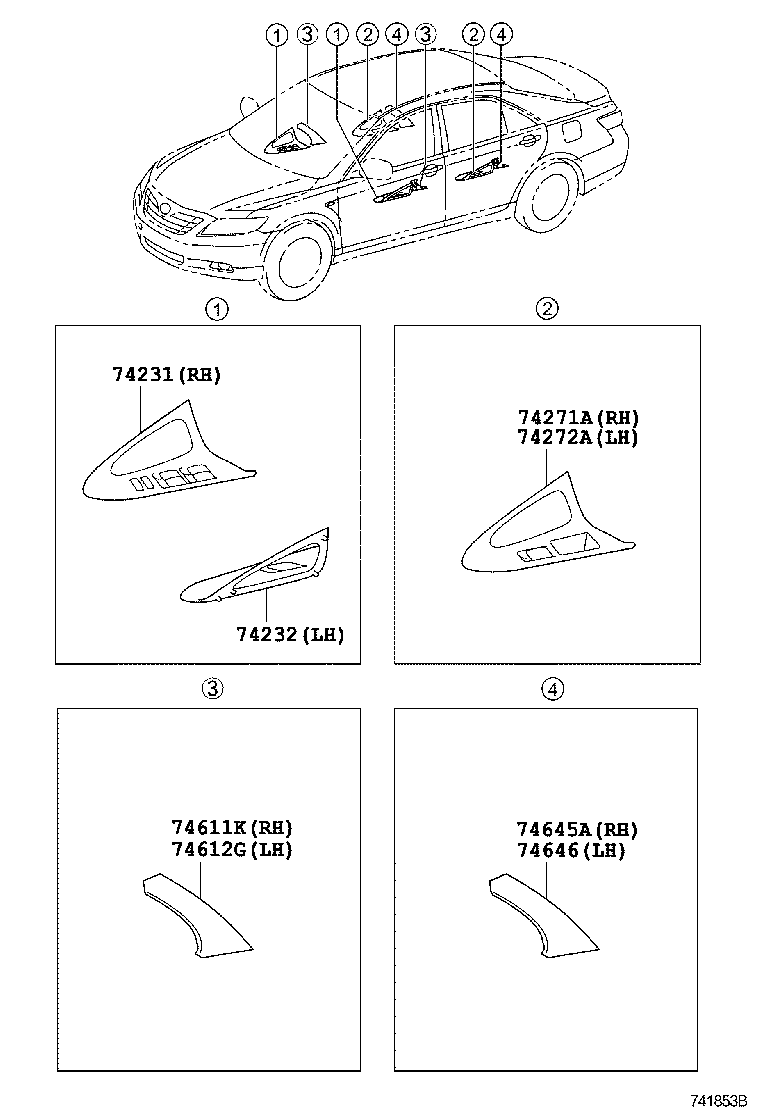

ILLUST NO. 1 OF 2(0601- )RHD

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74271A 74272A 74611K 74612G 74645A 74646
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-33420E0

ACV40,GSV40..RHD

LT.BROWN,TRIM1#,4#

 1
74231-33421E1

ACV40,GSV40..RHD

BROWN,TRIM1#,4#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-33340E0

ACV40,GSV40..RHD

LT.BROWN,TRIM1#,4#

 1
74232-33341E1

ACV40,GSV40..RHD

BROWN,TRIM1#,4#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-33250E0

ACV40,GSV40

LT.BROWN,TRIM1#,4#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-33250E0

ACV40,GSV40

LT.BROWN,TRIM1#,4#

 1
74611K - COVER, ASSIST GRIP, RH FRONT SIDE
74612-33050

ACV40,GSV40

 1
74612G - COVER, ASSIST GRIP, LH FRONT SIDE
74611-33040

ACV40,GSV40

 1
74645A - COVER, DOOR ASSIST GRIP, RH
74645-33040

ACV40,GSV40

 1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-33040

ACV40,GSV40

 1

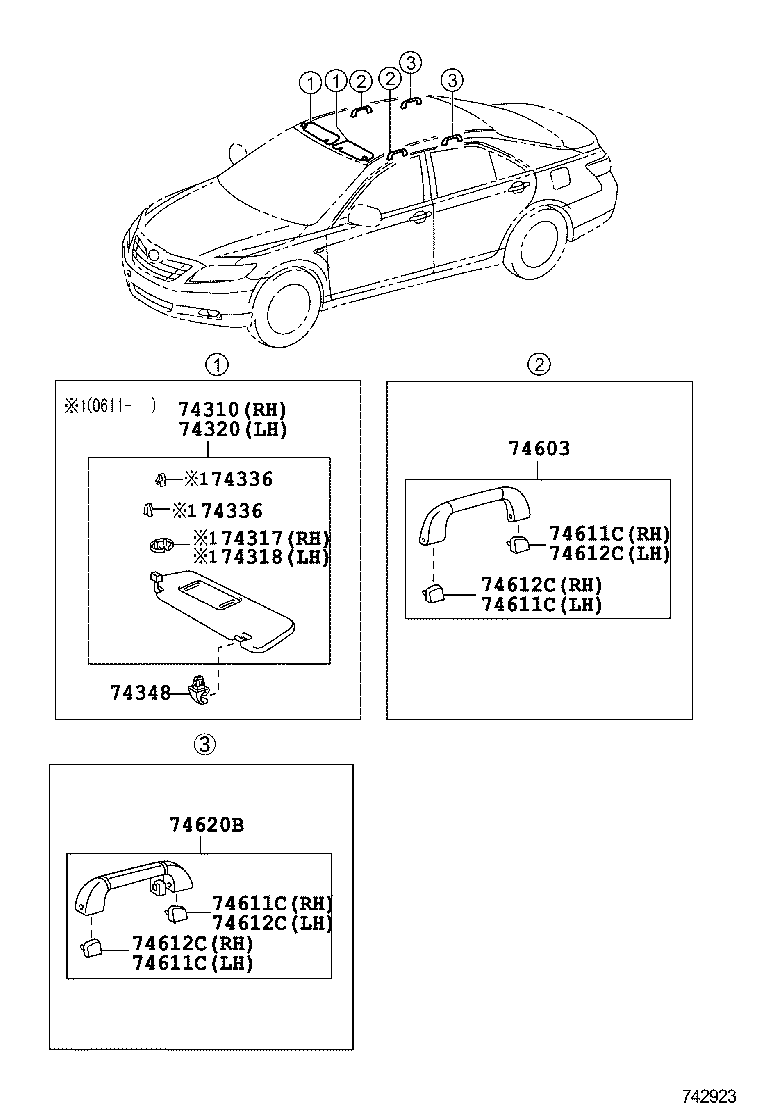

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74317 74318 74320 74336 74336 74348 74603 74611C 74611C 74611C 74611C 74612C 74612C 74612C 74612C 74620B
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-33A20B1

ACV40,GSV40..RHD

GRAY,TRIM1#

 1
74310-33A20E1

ACV40,GSV40..RHD

GREGE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-33A10E1

ACV40,GSV40..RHD

GREGE,TRIM4#

 1
74320-33A10B1

ACV40,GSV40..RHD

GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-33040E0

ACV40,GSV40

GREGE,TRIM4#

 2
74348-33040B0

ACV40,GSV40

GRAY,TRIM1#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-30240B1

ACV40,GSV40

GRAY,TRIM1#

 2
74610-30240E0

ACV40,GSV40

GREGE,TRIM4#

 2
74620B - GRIP ASSY, ASSIST, REAR
74610-30320E1

ACV40,GSV40

GREGE,TRIM4#,RH

 1
74610-30320B1

ACV40,GSV40

GRAY,TRIM1#,RH

 1
74610-30330B1

ACV40,GSV40

GRAY,TRIM1#,LH

 1
74610-30330E1

ACV40,GSV40

GREGE,TRIM4#,LH

 1
