ACV40R-AEMNKW (2006)
Toyota Camry

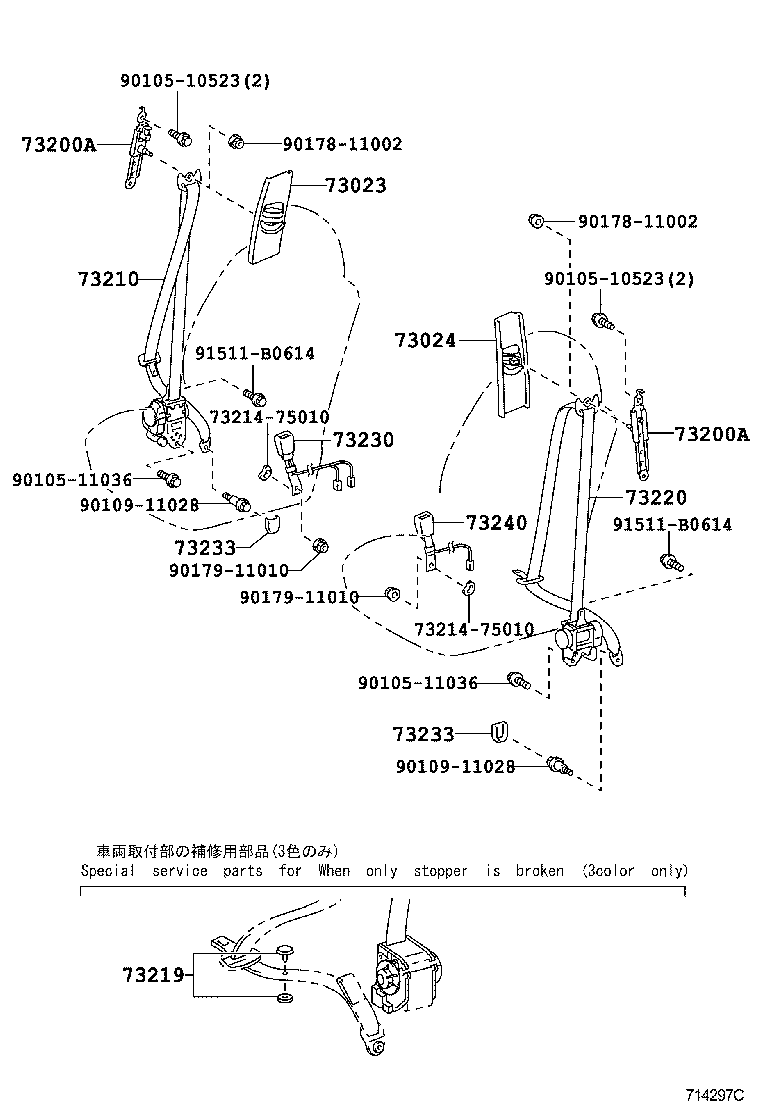

ILLUST NO. 1 OF 2(0601- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33020B0 |
ACV40,GSV40 GRAY,TRIM1# |
1 | ||
| 73023-33020E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33020E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73024-33020B0 |
ACV40,GSV40 GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ACV40,GSV40 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ACV40,GSV40 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-33400C1 |
ACV40,GSV40..RHD BLACK,TRIM1# |
1 | ||
| 73210-33400E1 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ACV40,GSV40 BLACK |
1 | ||
| 73219-33030 |
ACV40,GSV40 IVORY |
1 | ||
| 73219-33020 |
ACV40,GSV40 GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-33460C0 |
ACV40,GSV40..RHD BLACK,TRIM1# |
1 | ||
| 73220-33460E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-33640E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 73230-33650E0 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4# |
1 | ||
| 73230-33650B0 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 73230-33650E0 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE,GREGE,TRIM4# |
1 | ||
| 73230-33640B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-33650B0 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 73233-33010B8 |
ACV40,GSV40 DK.GRAY,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 73233-33010B8 |
ACV40,GSV40 DK.GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-33490B0 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 73230-33490B0 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 73240-33100E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 73230-33490E1 |
ACV40,GSV40..RHD *DRP POWER SEAT PACKAGE,GREGE,TRIM4# |
1 | ||
| 73240-33100B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 73230-33490E1 |
ACV40,GSV40..RHD *DRP POWER SEAT & LEATHER PACKAGE,GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11036 | ||||
| 90109-11028 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||

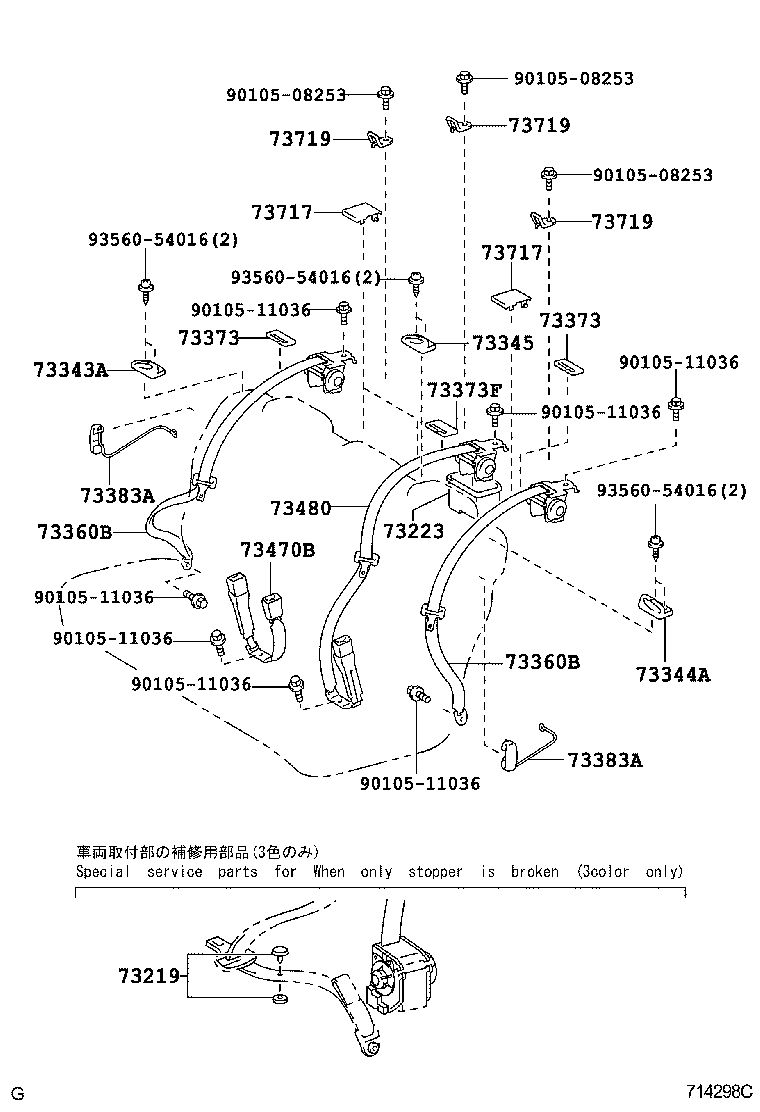

ILLUST NO. 2 OF 2(0601- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ACV40,GSV40 BLACK |
1 | ||
| 73219-33030 |
ACV40,GSV40 IVORY |
1 | ||
| 73219-33020 |
ACV40,GSV40 GRAY |
1 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-33020 |
ACV40,GSV40 |
1 | ||
| 73343A - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33010E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73343-33010B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 73344A - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33010E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73344-33010B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33010E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73344-33010B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-33130E0 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 73360-33130C0 |
ACV40,GSV40 BLACK,TRIM1# |
2 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-33130E0 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 73360-33130C0 |
ACV40,GSV40 BLACK,TRIM1# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33010B7 |
ACV40,GSV40 DK.GRAY,TRIM1# |
2 | ||
| 73373-33010E4 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33010B7 |
ACV40,GSV40 DK.GRAY,TRIM1# |
2 | ||
| 73373-33010E4 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-33030B2 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 73373-33030E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-33020 |
ACV40,GSV40 |
2 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-33020 |
ACV40,GSV40 |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-33060E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73470-33060C0 |
ACV40,GSV40 BLACK,TRIM1# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-33140E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 73480-33140C0 |
ACV40,GSV40 BLACK,TRIM1# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-33040B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
3 | ||
| 73717-33040E0 |
ACV40,GSV40 GREGE,TRIM4# |
3 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-33040B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
3 | ||
| 73717-33040E0 |
ACV40,GSV40 GREGE,TRIM4# |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
ACV40,GSV40 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
ACV40,GSV40 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
ACV40,GSV40 |
3 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11036 | ||||
| 93560-54016 | ||||
