ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

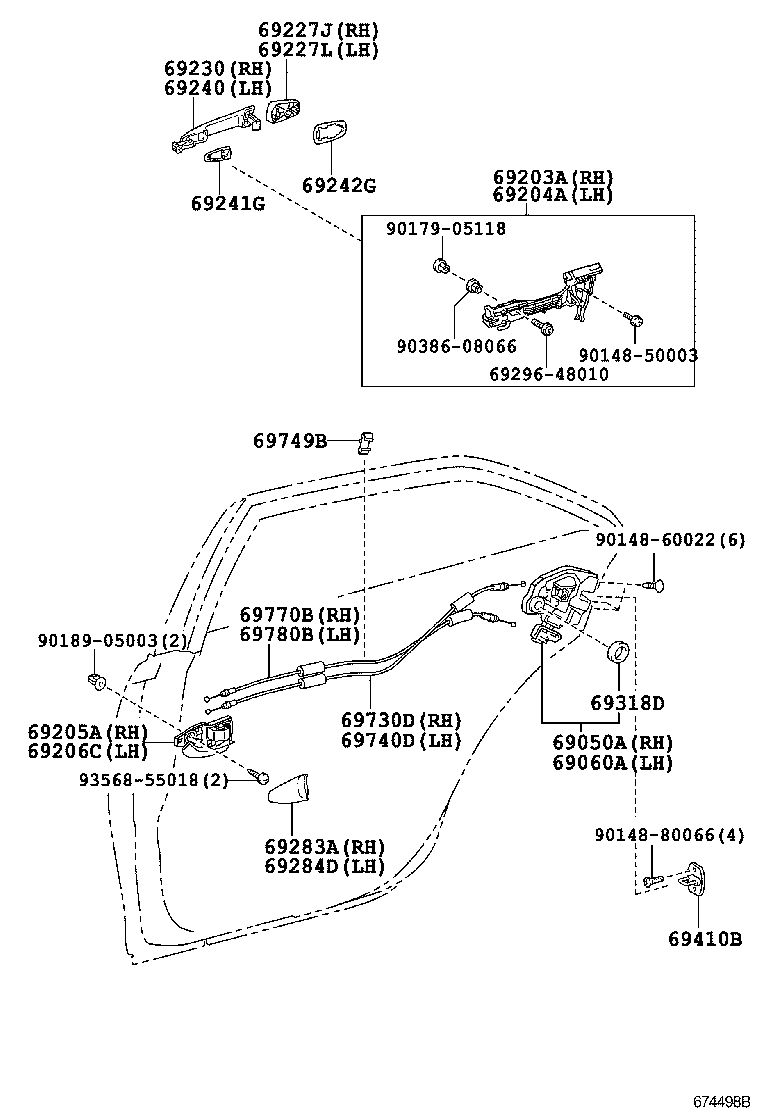

Click highlighted areas on diagram

diagram 69050A 69060A 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241G 69242G 69283A 69284D 6929648010 69318D 69410B 69730D 69740D 69749B 69770B 69780B 9014850003 9014860022 9014880066 9017905118 9018905003 9038608066 9356855018
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-33120

ACV40,GSV40

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-33120

ACV40,GSV40

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-33030

ACV40,GSV40

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-33030

ACV40,GSV40

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-33090C0

ACV40,GSV40

BLACK,TRIM1#,4#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-33100C0

ACV40,GSV40

BLACK,TRIM1#,4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-60020C0

ACV40,GSV40

BLACK,202

 1
69227-60020R2

ACV40,GSV40

LT.BLUE ME.,8S4

 1
69227-60020H0

ACV40,GSV40

TURQUOISE M.M.,776

 1
69227-60020B0

ACV40,GSV40

SILVER ME.,1D4

 1
69227-60020E6

ACV40,GSV40

BEIGE M. M.,4Q2

 1
69227-60020B9

ACV40,GSV40

GRAY ME.,1G3

 1
69227-60020R3

ACV40,GSV40

DK.BLUE MC.,8T5

 1
69227-60020D9

ACV40,GSV40

RED M.M.,3R3

 1
69227-60020A2

ACV40,GSV40

SUPER WHITE 2,040

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-60020H0

ACV40,GSV40

TURQUOISE M.M.,776

 1
69227-60020B9

ACV40,GSV40

GRAY ME.,1G3

 1
69227-60020B0

ACV40,GSV40

SILVER ME.,1D4

 1
69227-60020E6

ACV40,GSV40

BEIGE M. M.,4Q2

 1
69227-60020R2

ACV40,GSV40

LT.BLUE ME.,8S4

 1
69227-60020D9

ACV40,GSV40

RED M.M.,3R3

 1
69227-60020C0

ACV40,GSV40

BLACK,202

 1
69227-60020A2

ACV40,GSV40

SUPER WHITE 2,040

 1
69227-60020R3

ACV40,GSV40

DK.BLUE MC.,8T5

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-28070B0

ACV40,GSV40

SILVER ME.,1D4

 1
69211-28070P4

ACV40,GSV40

GRAY ME.,1G3

 1
69211-28070A0

ACV40,GSV40

SUPER WHITE 2,040

 1
69211-28070H1

ACV40,GSV40

TURQUOISE M.M.,776

 1
69211-28070V2

ACV40,GSV40

DK.BLUE MC.,8T5

 1
69211-28070C1

ACV40,GSV40

BLACK,202

 1
69211-28070X1

ACV40,GSV40

RED M.M.,3R3

 1
69211-28070E6

ACV40,GSV40

BEIGE M. M.,4Q2

 1
69211-28070V1

ACV40,GSV40

LT.BLUE ME.,8S4

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-28070A0

ACV40,GSV40

SUPER WHITE 2,040

 1
69211-28070V2

ACV40,GSV40

DK.BLUE MC.,8T5

 1
69211-28070H1

ACV40,GSV40

TURQUOISE M.M.,776

 1
69211-28070B0

ACV40,GSV40

SILVER ME.,1D4

 1
69211-28070C1

ACV40,GSV40

BLACK,202

 1
69211-28070E6

ACV40,GSV40

BEIGE M. M.,4Q2

 1
69211-28070V1

ACV40,GSV40

LT.BLUE ME.,8S4

 1
69211-28070P4

ACV40,GSV40

GRAY ME.,1G3

 1
69211-28070X1

ACV40,GSV40

RED M.M.,3R3

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-28060

ACV40,GSV40

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-60030

ACV40,GSV40

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-33040C0

ACV40,GSV40

BLACK,TRIM1#,4#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-33040C0

ACV40,GSV40

BLACK,TRIM1#,4#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ACV40,GSV40

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

ACV40,GSV40

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-33070

ACV40,GSV40

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-33070

ACV40,GSV40

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

ACV40,GSV40

 2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-33030

ACV40,GSV40

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-33030

ACV40,GSV40

 1
Common parts
69296-48010
90148-50003
90148-60022
90148-80066
90179-05118
90189-05003
90386-08066
93568-55018
