ACV40R-AEMNKW (2006)
Toyota Camry
ILLUST NO. 2 OF 2(0601- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-33820E1 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 67630-33830E0 |
ACV40,GSV40 *DRP POWER SEAT & LEATHER PACKAGE,ASH BROWN,TRIM4# |
1 | ||
| 67630-33820B1 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 67630-33830B0 |
ACV40,GSV40 *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACV40,GSV40 |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-33820B1 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 67640-33830E0 |
ACV40,GSV40 *DRP POWER SEAT & LEATHER PACKAGE,ASH BROWN,TRIM4# |
1 | ||
| 67640-33830B0 |
ACV40,GSV40 *DRP POWER SEAT & LEATHER PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 67640-33820E1 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-33060 |
ACV40,GSV40 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-33060 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 67923-33050 | ||||
| 85373-12020 | ||||
| 90164-60018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||

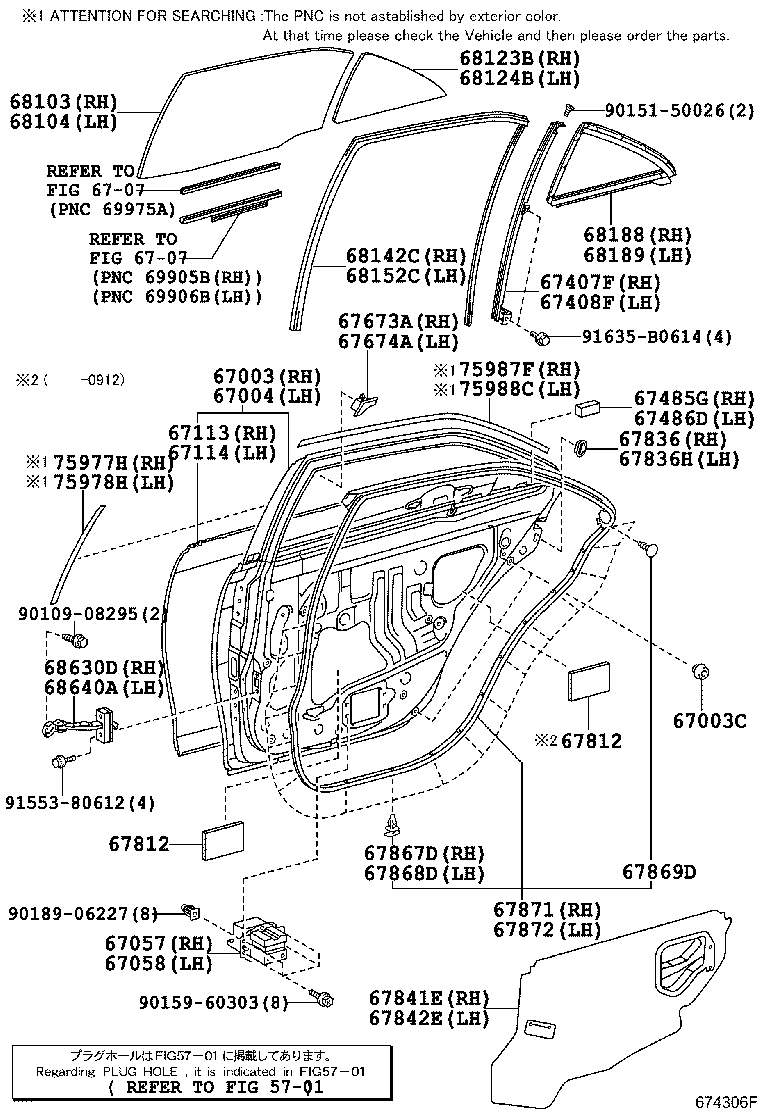

ILLUST NO. 1 OF 2(0601- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-33160 |
ACV40,GSV40 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09117 |
ACV40,GSV40 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-33160 |
ACV40,GSV40 |
1 | ||
| 67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH | ||||
| 67057-33020 |
ACV40,GSV40 |
1 | ||
| 67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH | ||||
| 67057-33020 |
ACV40,GSV40 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-33080 |
ACV40,GSV40 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-33080 |
ACV40,GSV40 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-33070 |
ACV40,GSV40 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-33070 |
ACV40,GSV40 |
1 | ||
| 67485G - SEAL, REAR DOOR REAR LOWER FRAME, RH | ||||
| 67482-33050 |
ACV40,GSV40 |
1 | ||
| 67486D - SEAL, REAR DOOR REAR LOWER FRAME, LH | ||||
| 67482-33050 |
ACV40,GSV40 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-33100 |
ACV40,GSV40 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-33100 |
ACV40,GSV40 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-33040 |
ACV40,GSV40 |
4 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-33040 |
ACV40,GSV40 |
4 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
ACV40,GSV40 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
ACV40,GSV40 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-33080 |
ACV40,GSV40 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-33080 |
ACV40,GSV40 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACV40,GSV40 |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACV40,GSV40 |
17 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-05017C0 |
ACV40,GSV40 BLACK |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-33080 |
ACV40,GSV40 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-33080 |
ACV40,GSV40 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-33150 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-33150 |
ACV40,GSV40 *UVCT,T=4.0,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-33060 |
ACV40,GSV40 *UVCT,T=3.5,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-33060 |
ACV40,GSV40 *UVCT,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-33090 |
ACV40,GSV40 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-33090 |
ACV40,GSV40 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-33040 |
ACV40,GSV40 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-33040 |
ACV40,GSV40 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-33070 |
ACV40,GSV40 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-33070 |
ACV40,GSV40 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-33010 |
ACV40,GSV40 |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-33010 |
ACV40,GSV40 |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-33030 |
ACV40,GSV40 |
1 | ||
| 75988C - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-33030 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 91553-80612 | ||||
| 91635-B0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6707 | ||||
