ACV40R-AEMNKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )ACV40

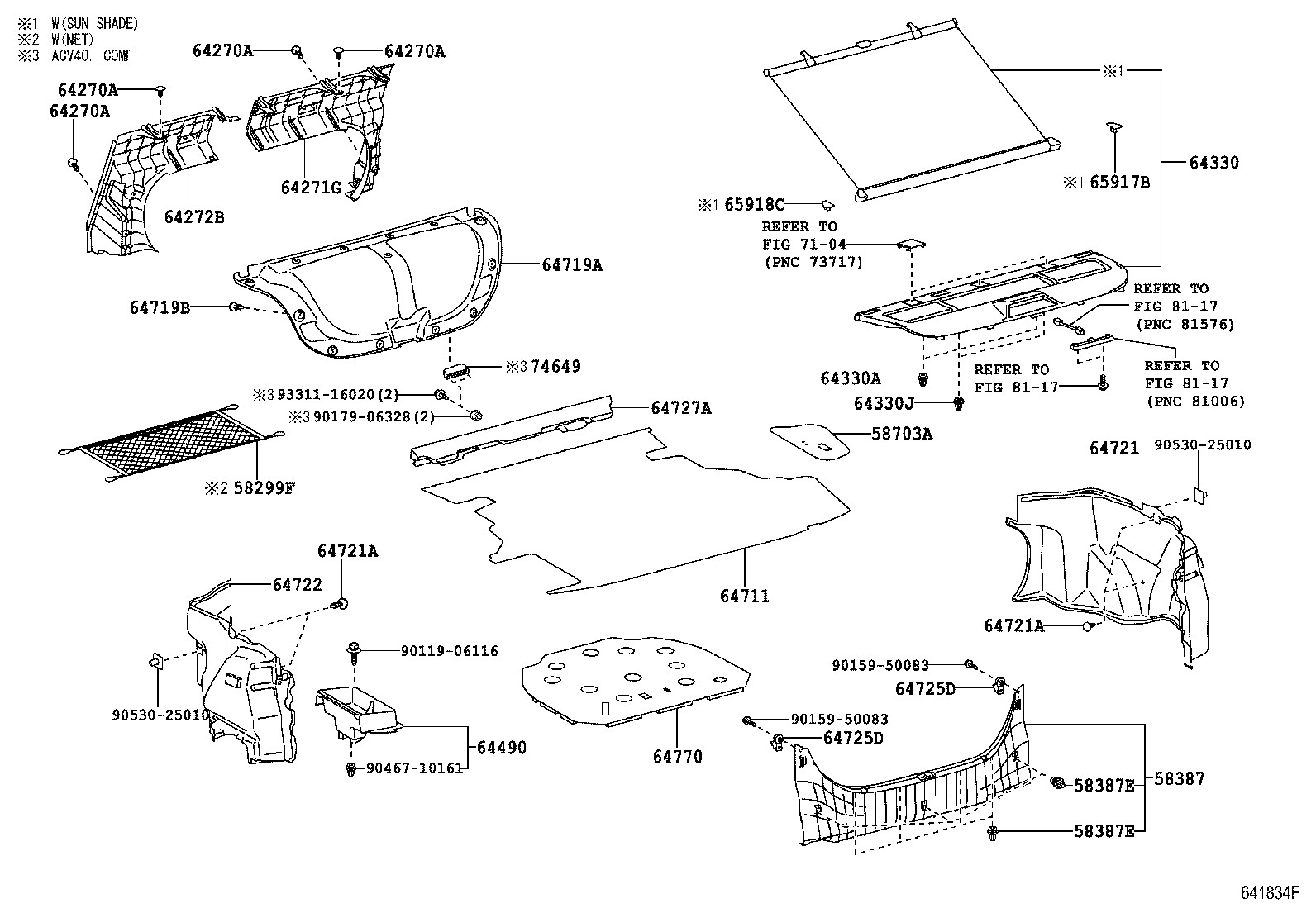

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58299F - NET, BAGGAGE HOLDER | ||||
| 58299-AA010 |
ACV40,GSV40..LE,XLE |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-33090 |
ACV40,GSV40 |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-10161 |
ACV40,GSV40 |
7 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-10161 |
ACV40,GSV40 |
7 | ||
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-33050 |
ACV40,GSV40 |
1 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-08186C0 |
ACV40 BLACK |
8 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-08186C0 |
ACV40 BLACK |
8 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-08186C0 |
ACV40 BLACK |
8 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-08186C0 |
ACV40 BLACK |
8 | ||
| 64271G - BOARD, ROOM PARTITION, RH | ||||
| 64271-33080 |
ACV40 |
1 | ||
| 64272B - BOARD, ROOM PARTITION, LH | ||||
| 64272-33050 |
ACV40 |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64303-33060E0 |
ACV40..LE SUN SHADE-WITH,GREGE,TRIM4# |
1 | ||
| 64303-33060B0 |
ACV40..LE SUN SHADE-WITH,DK.GRAY,TRIM1# |
1 | ||
| 64331-33020E0 |
ACV40 GREGE,TRIM4# |
1 | ||
| 64331-33020B0 |
ACV40 DK.GRAY,TRIM1# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
ACV40,GSV40 |
2 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10167 |
ACV40,GSV40 |
2 | ||
| 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE | ||||
| 64490-33030 |
ACV40,GSV40 |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-33180C0 |
ACV40 BLACK,TRIM1#,4# |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-33080C0 |
ACV40,GSV40..LE,XLE BLACK,TRIM1#,4# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
ACV40,GSV40 BLACK |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-33100C0 |
ACV40,GSV40 BLACK,TRIM1#,4# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08186C0 |
ACV40,GSV40 BLACK |
4 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08186C0 |
ACV40,GSV40 BLACK |
4 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-33120C0 |
ACV40,GSV40 BLACK,TRIM1#,4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33061 |
ACV40,GSV40 |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33061 |
ACV40,GSV40 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-33040 |
ACV40 |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-33100 |
ACV40,GSV40 |
1 | ||
| 65917B - CAP, CURTAIN RAIL END, RH | ||||
| 65917-33020 |
ACV40,GSV40..LE,XLE SUN SHADE-WITH |
1 | ||
| 65918C - CAP, CURTAIN RAIL END, LH | ||||
| 65918-33010 |
ACV40,GSV40..LE,XLE SUN SHADE-WITH |
1 | ||
| Common parts | ||||
| 90119-06116 | ||||
| 90159-50083 | ||||
| 90179-06328 | ||||
| 90467-10161 | ||||
| 90530-25010 | ||||
| 93311-16020 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8117 | ||||
