ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

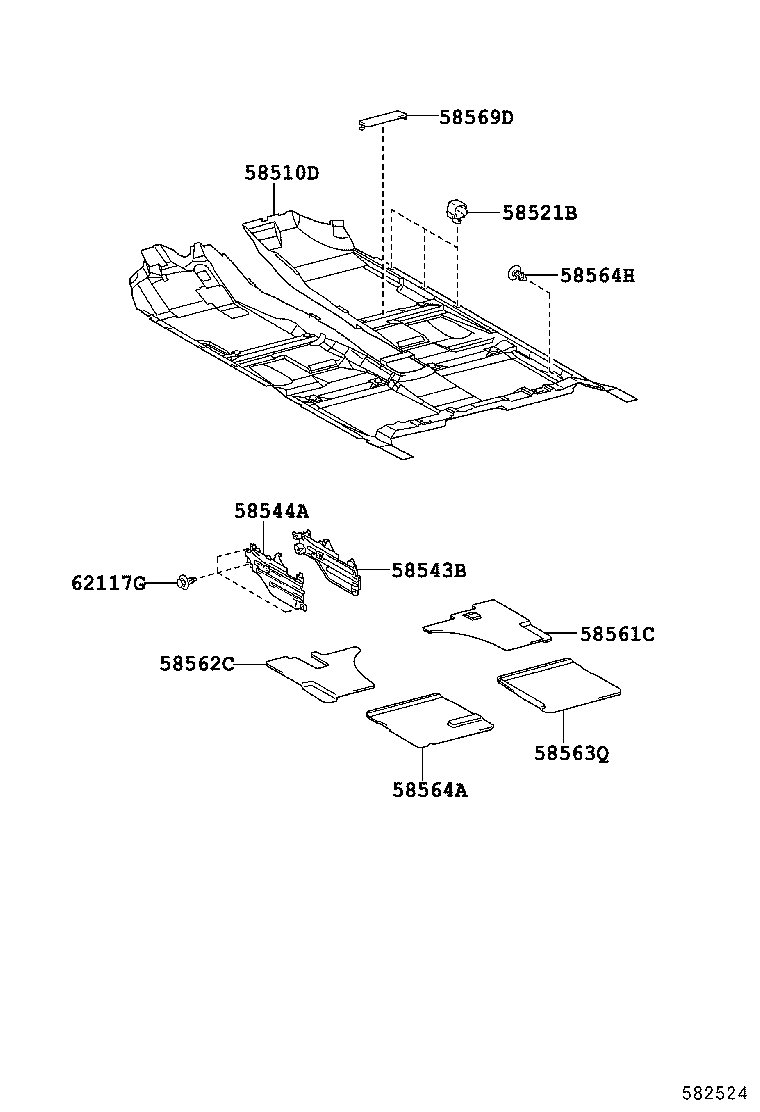

Click highlighted areas on diagram

diagram 58510D 58521B 58543B 58544A 58561C 58562C 58563Q 58564A 58564H 58569D 62117G
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-33510E1

ACV40..RHD..5F

GREGE,TRIM4#

 1
58510-33510B1

ACV40..RHD..5F

DK. GRAY FLOOR CARPET,TRIM1#

 1
58521B - HOOK, FLOOR CARPET
58521-33040

ACV40,GSV40

 6
58543B - BRACKET, FLOOR CARPET, RH
58543-33060

ACV40,GSV40

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-33060

ACV40,GSV40

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-33040

ACV40,GSV40

 1
58562C - SILENCER, FRONT FLOOR, NO.2
58562-33050

ACV40,GSV40

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-33040

ACV40,GSV40

 1
58564A - SILENCER, FRONT FLOOR, NO.4
58564-33040

ACV40,GSV40

 1
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-05164C0

ACV40,GSV40

BLACK

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-44010B5

ACV40,GSV40

DK.GRAY,TRIM1#

 1
58569-44010E1

ACV40,GSV40

GREGE,TRIM4#

 1
62117G - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-07076C0

ACV40,GSV40

BLACK

 6
