ACV40R-AEMNKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )

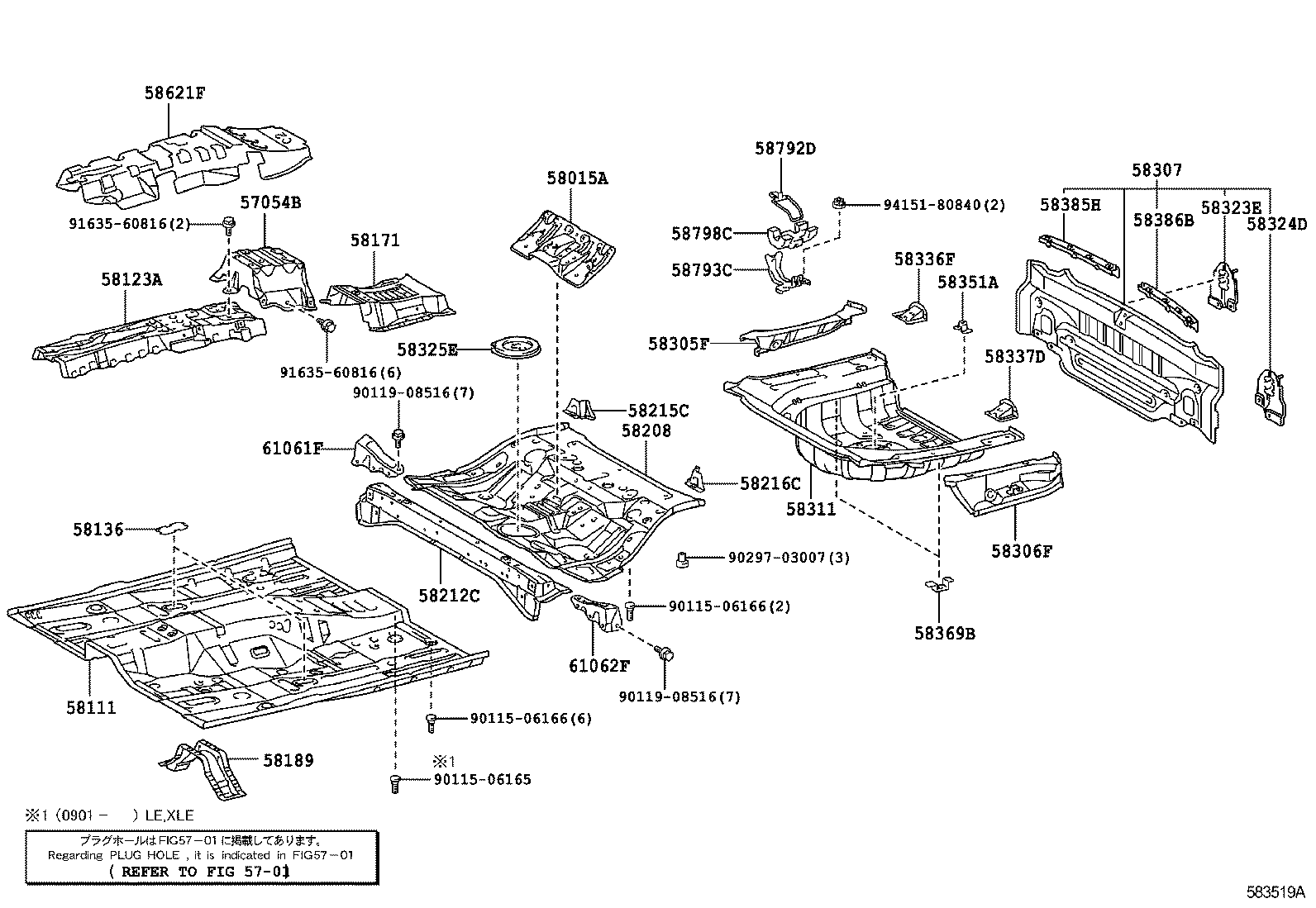

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57054B - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.4 | ||||
| 57054-33040 |
ACV40,GSV40 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-33030 |
ACV40 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-33070 |
ACV40,GSV40 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-33070 |
ACV40,GSV40 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-33010 |
ACV40,GSV40 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-33080 |
ACV40,GSV40 |
1 | ||
| 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET | ||||
| 58189-33050 |
ACV40,GSV40 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-33142 |
ACV40,GSV40 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58202-33010 |
ACV40,GSV40 |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-33040 |
ACV40,GSV40 |
1 | ||
| 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH | ||||
| 58216-33030 |
ACV40,GSV40 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-33070 |
ACV40,GSV40 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-33030 |
ACV40,GSV40 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-33130 |
ACV40,GSV40 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-33070 |
ACV40,GSV40 |
1 | ||
| 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-33080 |
ACV40,GSV40 |
1 | ||
| 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-33060 |
ACV40,GSV40 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-33020 |
ACV40,GSV40 |
1 | ||
| 58336F - REINFORCEMENT, REAR FLOOR PAN, RH | ||||
| 58336-33020 |
ACV40,GSV40 |
1 | ||
| 58337D - REINFORCEMENT, REAR FLOOR PAN, LH | ||||
| 58337-33030 |
ACV40,GSV40 |
1 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-33010 |
ACV40,GSV40 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
ACV40,GSV40 |
2 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-33030 |
ACV40,GSV40 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-33010 |
ACV40,GSV40 |
1 | ||
| 58621F - SILENCER, CENTER CONSOLE, NO.1 | ||||
| 58621-33090 |
ACV40,GSV40 |
1 | ||
| 58792D - SUPPORT, JACK | ||||
| 58792-33010 |
ACV40,GSV40 |
1 | ||
| 58793C - BRACKET, JACK CARRIER, NO.1 | ||||
| 58793-33010 |
ACV40,GSV40 |
1 | ||
| 58798C - CUSHION, JACK CARRIER | ||||
| 58798-33010 |
ACV40,GSV40 |
1 | ||
| 61061F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 | ||||
| 61061-33010 |
ACV40,GSV40 |
1 | ||
| 61062F - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 | ||||
| 61062-33010 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90115-06165 | ||||
| 90115-06166 | ||||
| 90119-08516 | ||||
| 90297-03007 | ||||
| 91635-60816 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 5701 | ||||
