ACV40R-AEMNKW (2006)
Toyota Camry

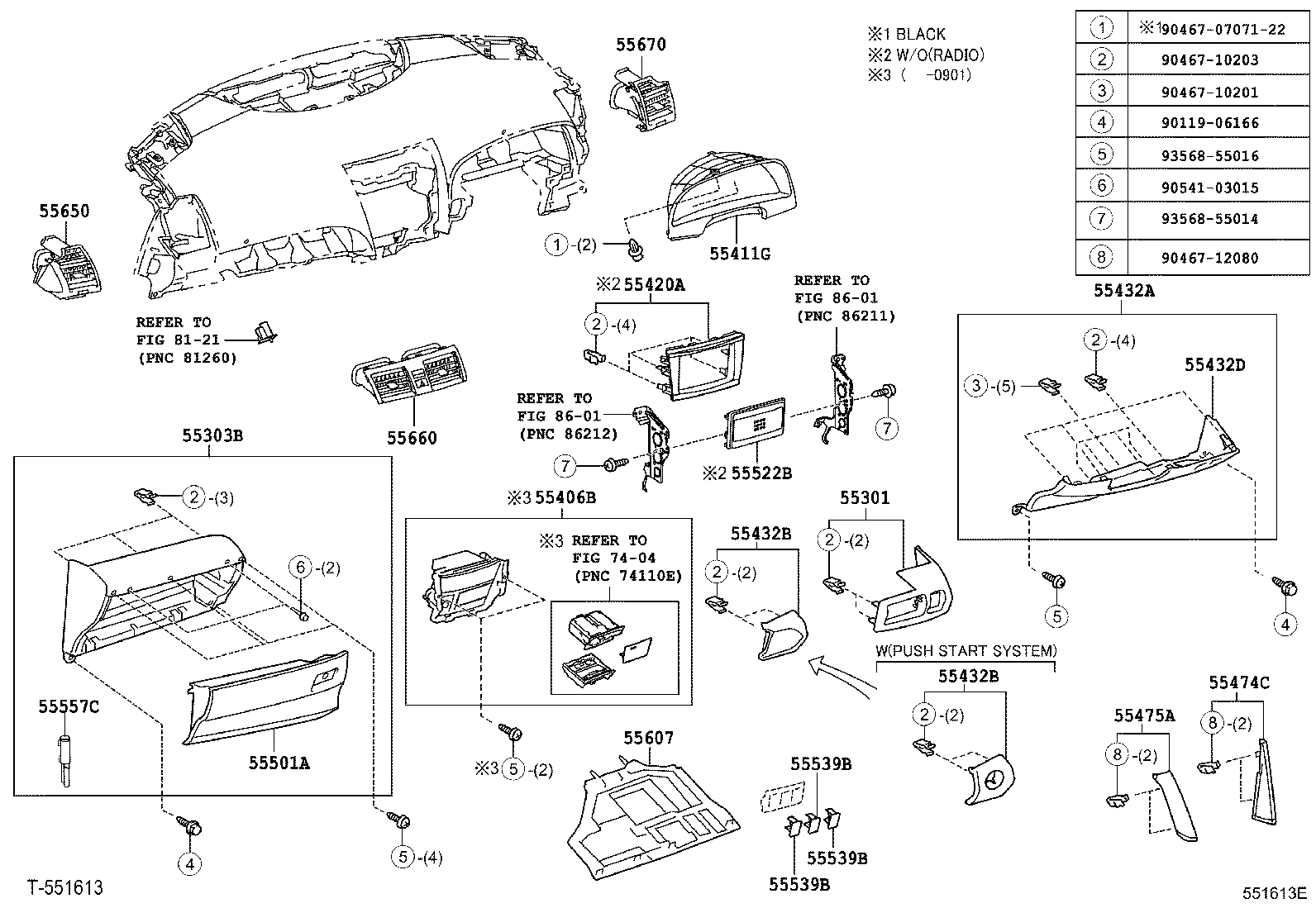

ILLUST NO. 2 OF 2(0601- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-33040E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 55301-33040B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-33130E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 55303-33130B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-33100 |
ACV40,GSV40 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55404-33120 |
ACV40,GSV40..RHD |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-33010 |
ACV40,GSV40..RHD AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER |
1 | ||
| 55420-33010 |
ACV40,GSV40..LE,XLE |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55302-33150B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55302-33150E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-33090E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 55480-33090B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-33090E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 55480-33090B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-33150B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55432-33150E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-33050B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 55474-33050E1 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-33030E1 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 55475-33030B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-33020E0 |
ACV40,GSV40..RHD GREGE,TRIM4# |
1 | ||
| 55501-33020B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ACV40,GSV40..RHD AUDIO-AM10K/FM, CD CHANGER 2W 6SPEAKER |
1 | ||
| 55522-52020 |
ACV40,GSV40..LE,XLE |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060B0 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH,DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
ACV40..5FC..LE;ACV40,GSV40..5F,6FC DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH,GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
ACV40..5FC..LE;ACV40,GSV40..5F,6FC GREGE,TRIM4# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060B0 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH,DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
ACV40..5FC..LE;ACV40,GSV40..5F,6FC DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH,GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
ACV40..5FC..LE;ACV40,GSV40..5F,6FC GREGE,TRIM4# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-52060B0 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH,DK.GRAY,TRIM1# |
1 | ||
| 55539-52060B0 |
ACV40..5FC..LE;ACV40,GSV40..5F,6FC DK.GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
ACV40,GSV40..LE,XLE HEAD LAMP CLEANER-WITH,GREGE,TRIM4# |
1 | ||
| 55539-52060E0 |
ACV40..5FC..LE;ACV40,GSV40..5F,6FC GREGE,TRIM4# |
1 | ||
| 55557C - DAMPER, GLOVE COMPARTMENT DOOR | ||||
| 55557-33030 |
ACV40,GSV40 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-3T020 |
ACV40,GSV40..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33160E0 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 55650-33160B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33190E0 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 55660-33190B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33170E0 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 55670-33170B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06166 | ||||
| 90467-0707122 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90541-03015 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8121 | ||||
| 8601 | ||||

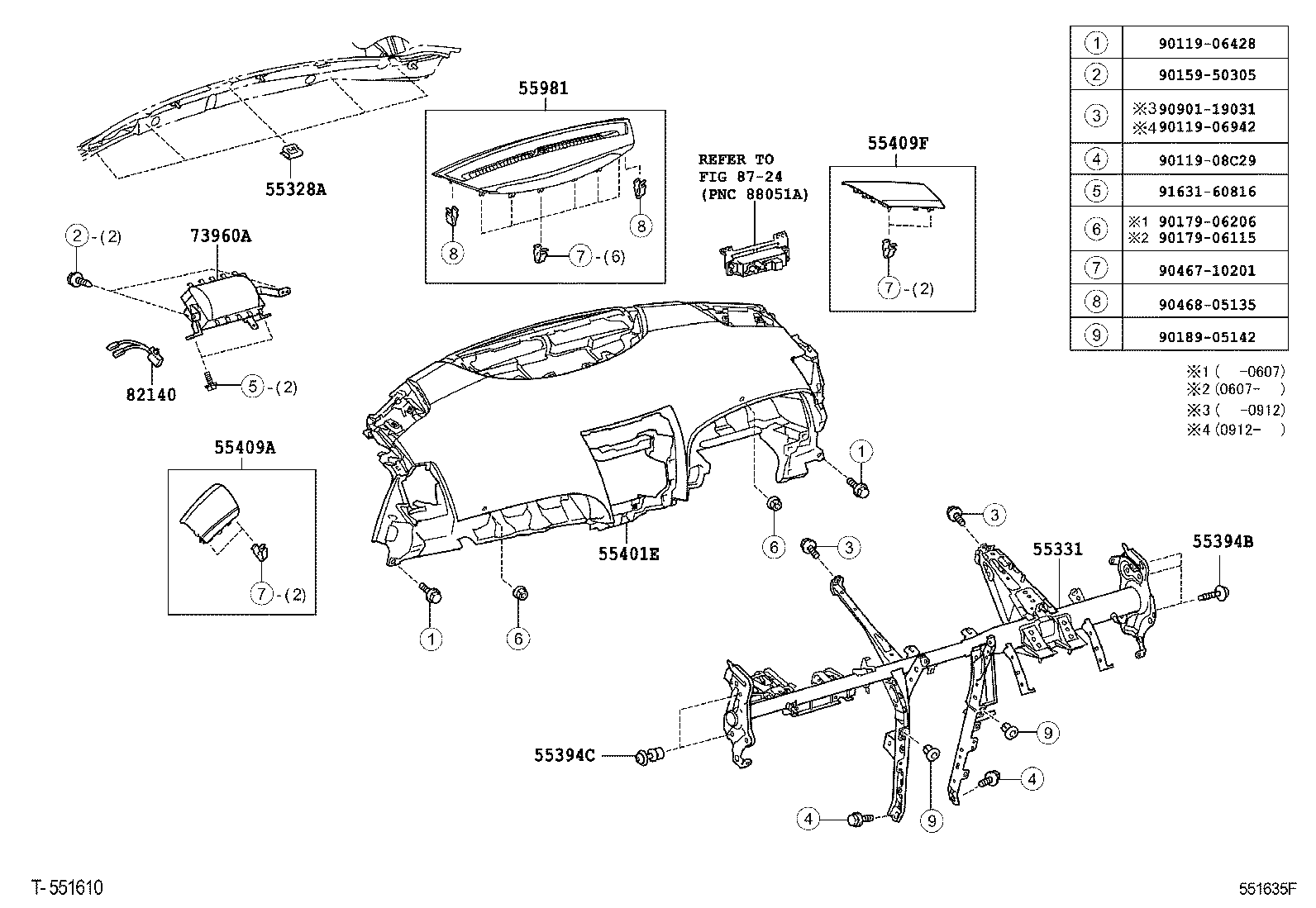

ILLUST NO. 1 OF 2(0601- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
ACV40,GSV40 |
5 | ||
| 55328-33120 |
ACV40,GSV40 |
5 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-33320 |
ACV40,GSV40..RHD |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-30020 |
ACV40,GSV40 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-51010 |
ACV40,GSV40 |
2 | ||
| 55394-33040 |
ACV40,GSV40 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-33190B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55401-33191E0 |
ACV40,GSV40..RHD ASH BROWN,TRIM4# |
1 | ||
| 55401-33190E0 |
ACV40,GSV40..RHD ASH BROWN,TRIM4# |
1 | ||
| 55401-33191B0 |
ACV40,GSV40..RHD DK.GRAY,TRIM1# |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55472-33080E0 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 55472-33080B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-33040E0 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 55473-33040B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-33110B0 |
ACV40,GSV40 DK.GRAY,TRIM1# |
1 | ||
| 55981-33110E0 |
ACV40,GSV40 ASH BROWN,TRIM4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-33120 |
ACV40,GSV40 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-33010 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90119-06942 | ||||
| 90119-08C29 | ||||
| 90159-50305 | ||||
| 90179-06115 | ||||
| 90179-06206 | ||||
| 90189-05142 | ||||
| 90467-10201 | ||||
| 90468-05135 | ||||
| 90901-19031 | ||||
| 91631-60816 | ||||
| Linked diagrams | ||||
| 8724 | ||||
