ACV40R-AEMNKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

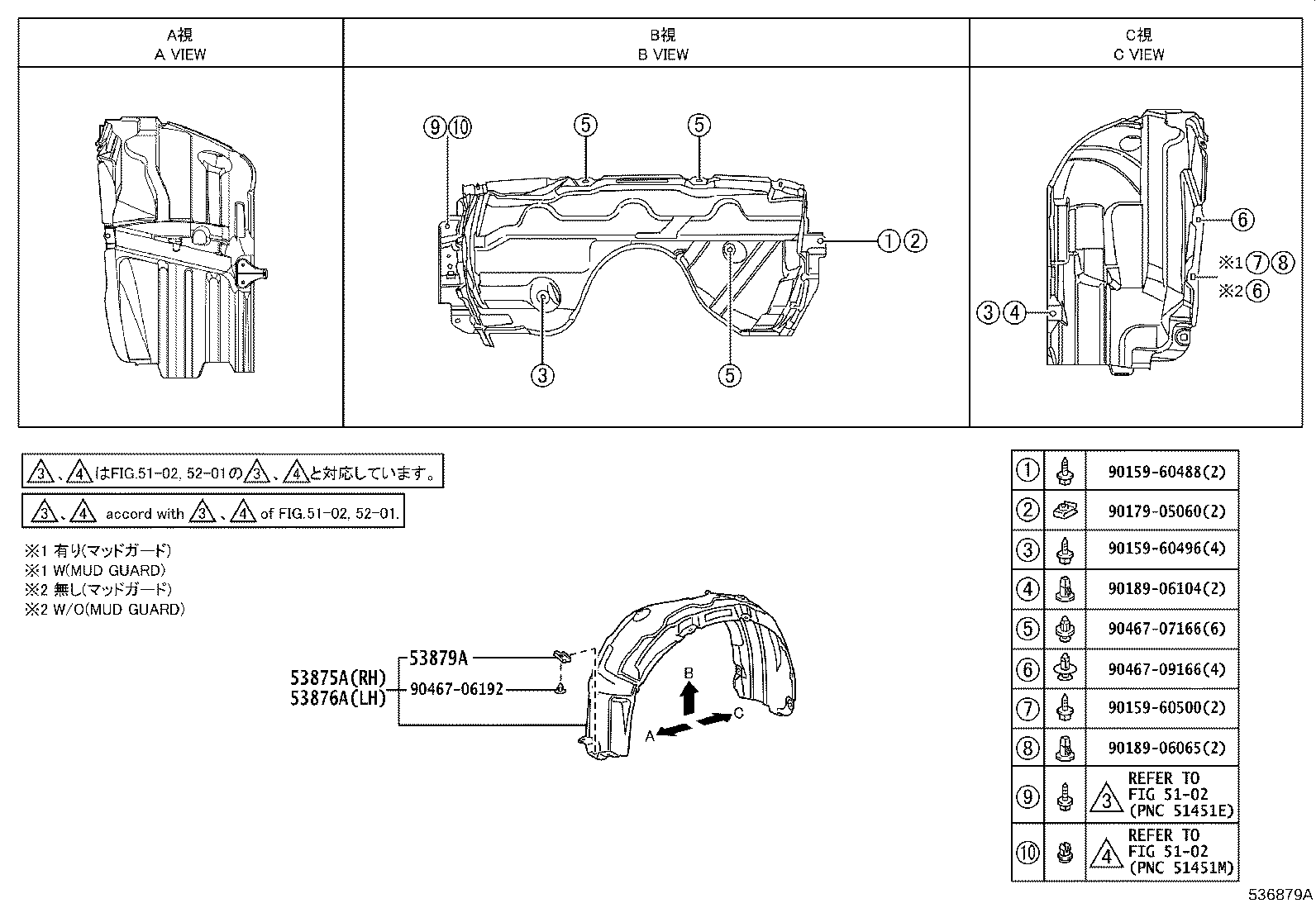

ILLUST NO. 2 OF 2(0601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-33150 |
ACV40,GSV40 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-33150 |
ACV40,GSV40 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-28040 |
ACV40,GSV40 |
2 | ||
| Common parts | ||||
| 90159-60488 | ||||
| 90159-60496 | ||||
| 90159-60500 | ||||
| 90179-05060 | ||||
| 90189-06065 | ||||
| 90189-06104 | ||||
| 90467-06192 | ||||
| 90467-07166 | ||||
| 90467-09166 | ||||
| Linked diagrams | ||||
| 5102 | ||||

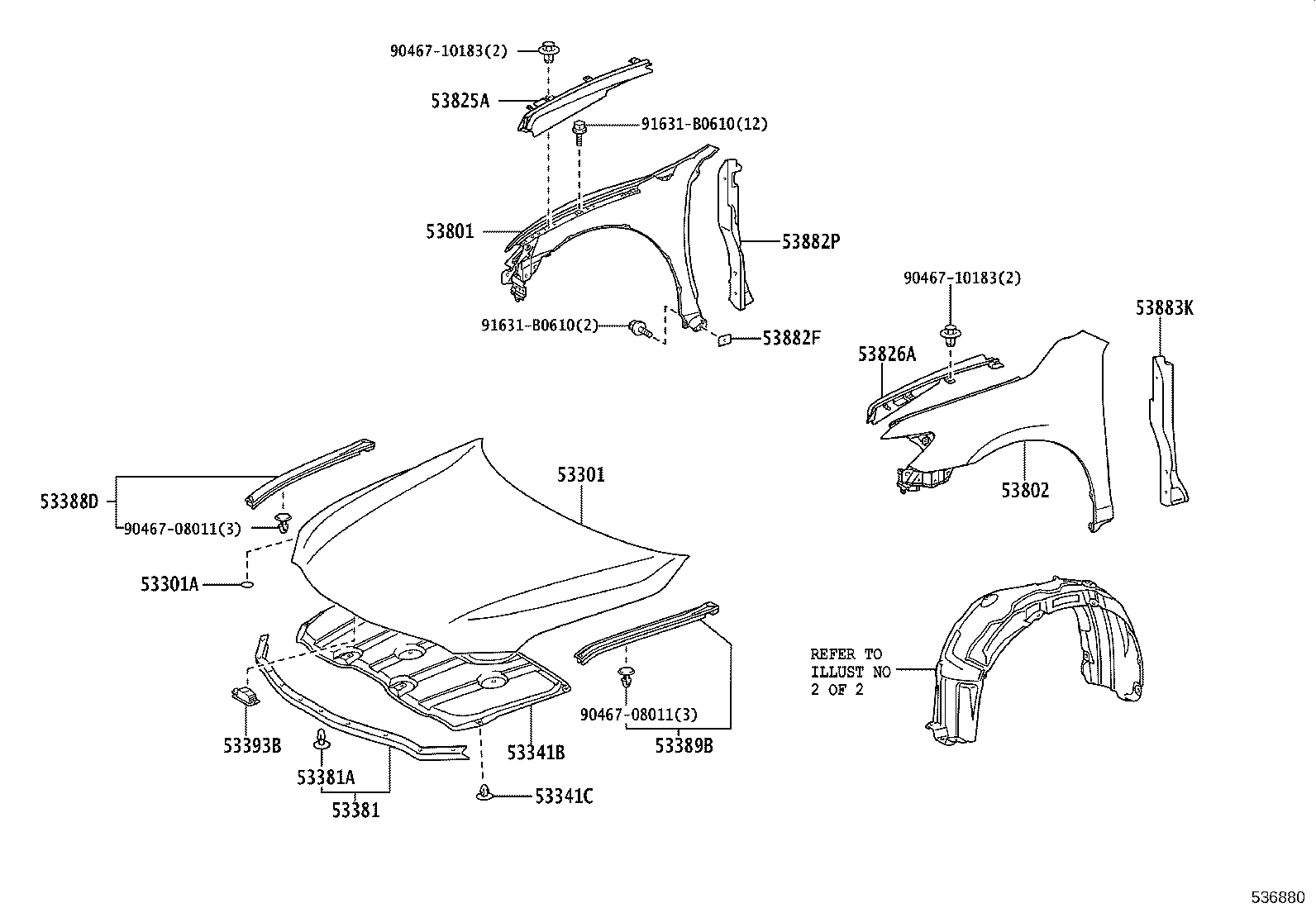

ILLUST NO. 1 OF 2(0601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-33120 |
ACV40,GSV40 |
1 | ||
| 53301A - PLUG, HOLE(FOR HOOD) | ||||
| 90950-06124 |
ACV40,GSV40 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-33140 |
ACV40..5F |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ACV40,GSV40 |
11 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-33080 |
ACV40,GSV40 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ACV40,GSV40 |
10 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-33040 |
ACV40,GSV40 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-33050 |
ACV40,GSV40 |
1 | ||
| 53393B - PROTECTOR, HOOD, FRONT | ||||
| 53393-33010 |
ACV40,GSV40 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-33180 |
ACV40,GSV40 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-33180 |
ACV40,GSV40 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-33020 |
ACV40,GSV40 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-33020 |
ACV40,GSV40 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV40,GSV40 |
2 | ||
| 53882P - SEAL, FRONT FENDER, RH | ||||
| 53882-33030 |
ACV40,GSV40 |
1 | ||
| 53882-33040 |
ACV40,GSV40 COLD AREA SPEC |
1 | ||
| 53882-33040 |
ACV40,GSV40 COLD AREA SPEC&MUD GUARD-WITH |
1 | ||
| 53883K - SEAL, FRONT FENDER, LH | ||||
| 53883-33030 |
ACV40,GSV40 |
1 | ||
| 53883-33040 |
ACV40,GSV40 COLD AREA SPEC |
1 | ||
| 53883-33040 |
ACV40,GSV40 COLD AREA SPEC&MUD GUARD-WITH |
1 | ||
| Common parts | ||||
| 90467-08011 | ||||
| 90467-10183 | ||||
| 91631-B0610 | ||||
