ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-33110

ACV40,GSV40

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-48020

ACV40,GSV40

 1

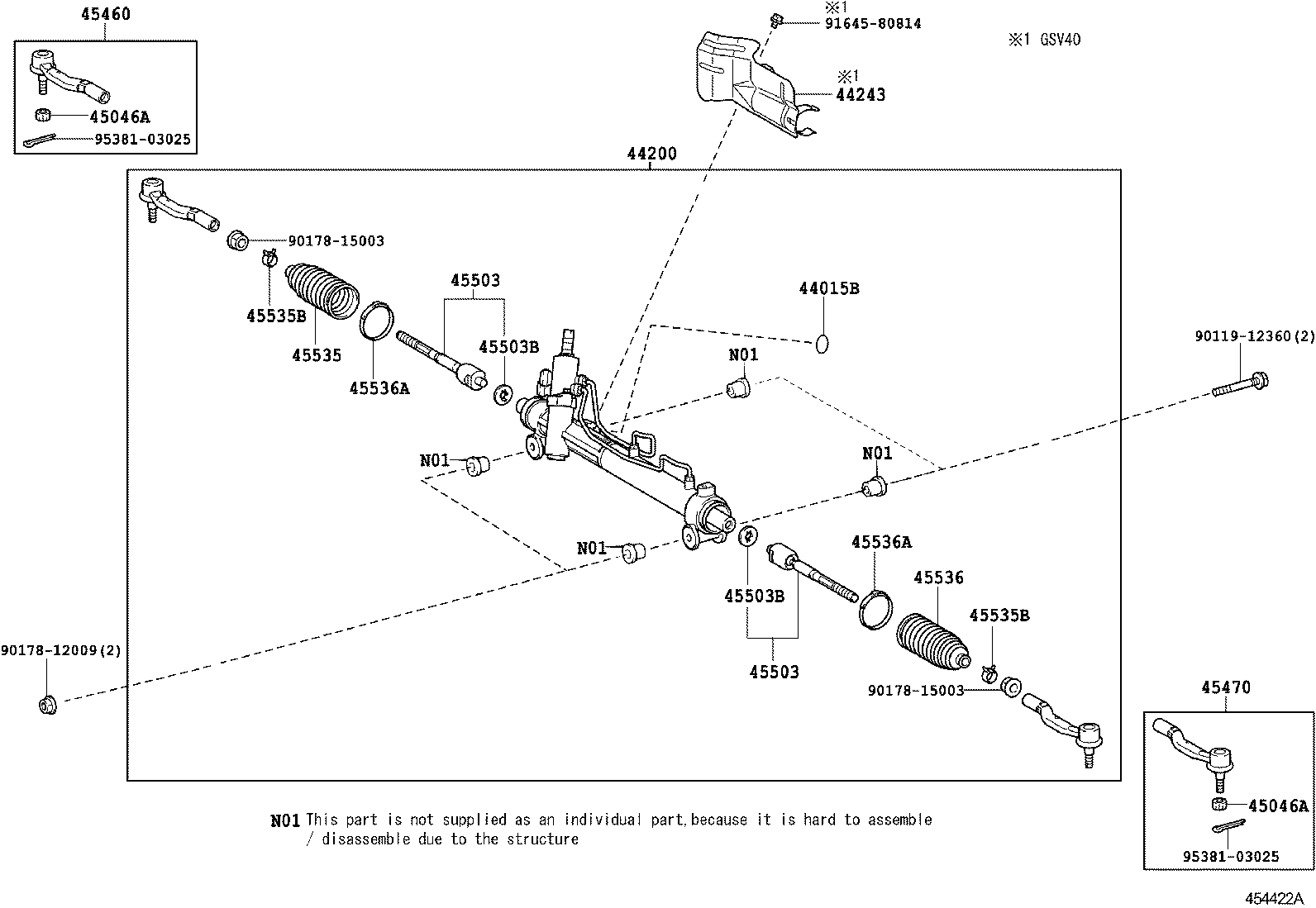

ILLUST NO. 1 OF 2(0601- )RHD

Click highlighted areas on diagram

diagram 44015B 44200 44243 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45535 45535B 45535B 45536 45536A 45536A 9011912360 9017812009 9017815003 9017815003 9164580814 9538103025 9538103025
Part # Description Qty Price
44015B - RING, O(FOR BEARING GUIDE NUT)
90301-29015

ACV40,GSV40

 1
44200 - LINK ASSY, POWER STEERING
44200-33510

ACV40,GSV40..RHD

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACV40,GSV40

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACV40,GSV40

 2
45460 - ROD ASSY, TIE, RH
45460-39635

ACV40,GSV40

 1
45470 - ROD ASSY, TIE, LH
45470-39225

ACV40,GSV40

 1
45503 - END SUB-ASSY, STEERING RACK
45503-39275

ACV40,GSV40

 2
45503 - END SUB-ASSY, STEERING RACK
45503-39275

ACV40,GSV40

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009

ACV40,GSV40

OD=35.2

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009

ACV40,GSV40

OD=35.2

 2
45535 - BOOT, STEERING RACK, NO.1
45535-33050

ACV40,GSV40

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46153

ACV40,GSV40

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46153

ACV40,GSV40

 2
45536 - BOOT, STEERING RACK, NO.2
45535-33050

ACV40,GSV40

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-60009

ACV40,GSV40

 2
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-60009

ACV40,GSV40

 2
Common parts
90119-12360
90178-12009
90178-15003
91645-80814
95381-03025
