Toyota Camry ACV40 DISC WHEEL & WHEEL CAP

ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009

Engine 2AZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

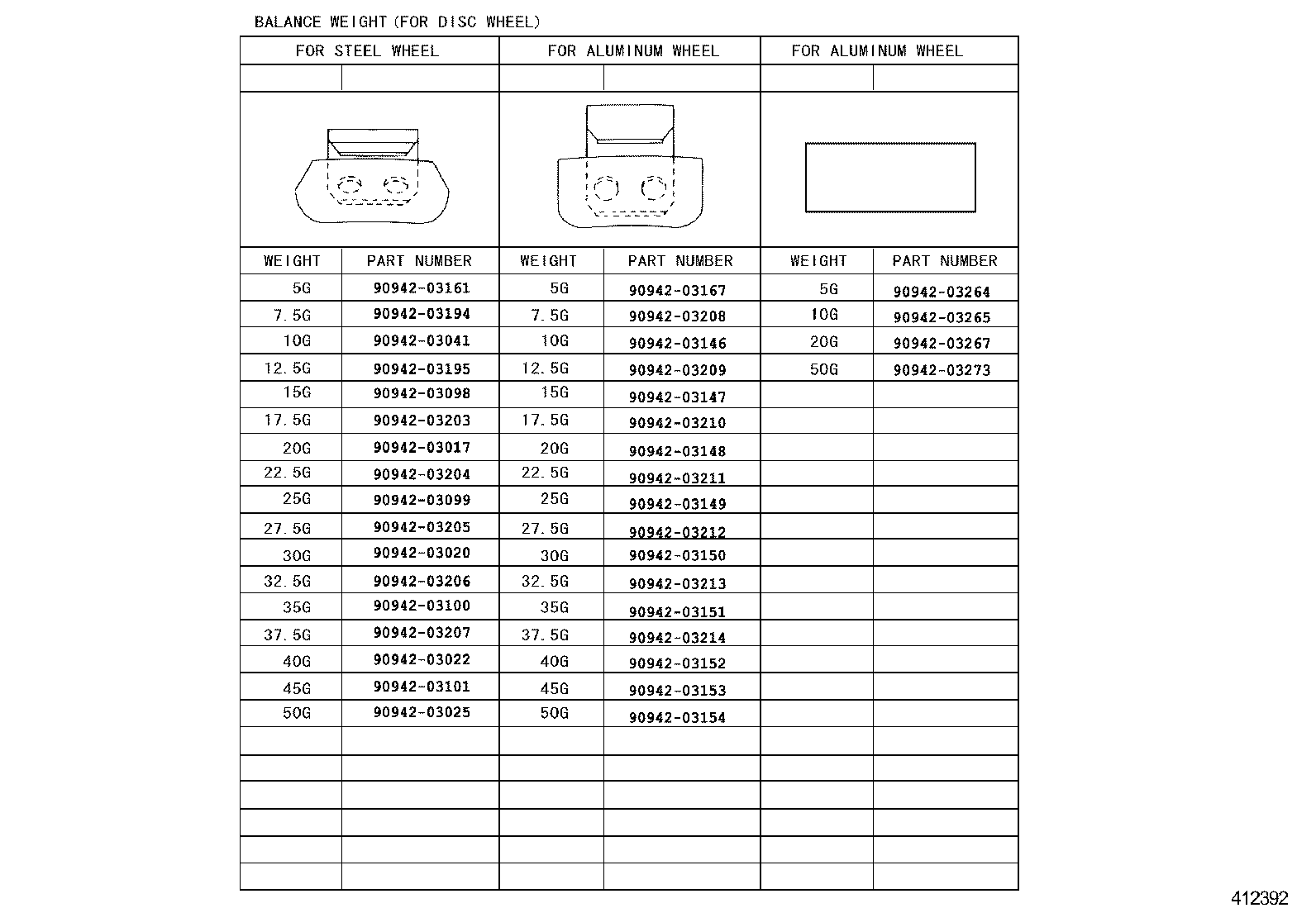

ILLUST NO. 3 OF 3(0601- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

ILLUST NO. 1 OF 3(0601- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-33530	ACV40..RHD 16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPE D:REFER ILLUST.	01/2006 - 02/2006	4
42611-33541	ACV40..LE 16X6.5JJ,#,TYPE B:REFER ILLUST.	01/2006 - 03/2009	4
42611-33491	ACV40..LE 16X6.5JJ, #,TYPE A:REFER ILLUST.	01/2006 - 03/2009	4
42611-33530	ACV40 16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE D:REFER ILLUST.	01/2006 - 02/2006	4
42601A - WHEEL, DISC (FOR SPARE)
42611-33530	ACV40..RHD 16X6.5J,#,INDIA SPEC&TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPE D:REFER ILLUST.	01/2006 - 02/2006	1
42611-33491	ACV40..LE 16X6.5JJ, #,TYPE A:REFER ILLUST.	01/2006 - 03/2009	1
42611-33530	ACV40 16X6.5J,#,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE D:REFER ILLUST.	01/2006 - 02/2006	1
42611-33541	ACV40..LE 16X6.5JJ,#,TYPE B:REFER ILLUST.	01/2006 - 03/2009	1
42601C - NUT, HUB (FOR AXLE)
90942-01007	ACV40..LE TYPE A:REFER ILLUST.	01/2006 - 03/2009	20
90942-01033	ACV40..LE TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE B:REFER ILLUST.	01/2006 - 03/2009	20
90942-01033	ACV40..RHD TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPE B:REFER ILLUST.	01/2006 - 03/2009	20
42601C - NUT, HUB (FOR AXLE)
90942-01007	ACV40..LE TYPE A:REFER ILLUST.	01/2006 - 03/2009	20
90942-01033	ACV40..LE TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE B:REFER ILLUST.	01/2006 - 03/2009	20
90942-01033	ACV40..RHD TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPE B:REFER ILLUST.	01/2006 - 03/2009	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	ACV40,GSV40	01/2006 - 03/2009	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	ACV40,GSV40	01/2006 - 03/2009	1
42652 - TIRE
42652-33522	ACV40,GSV40..RHD 215/60R16 95V,*Y/H	01/2006 - 03/2009	4
42652-33522	ACV40,GSV40..RHD 215/60R16 95V,*Y/H	01/2006 - 03/2009	4
42652A - TIRE (FOR SPARE)
42652-33522	ACV40,GSV40..RHD 215/60R16 95V,*Y/H	01/2006 - 03/2009	1
42652-33522	ACV40,GSV40..RHD 215/60R16 95V,*Y/H	01/2006 - 03/2009	1

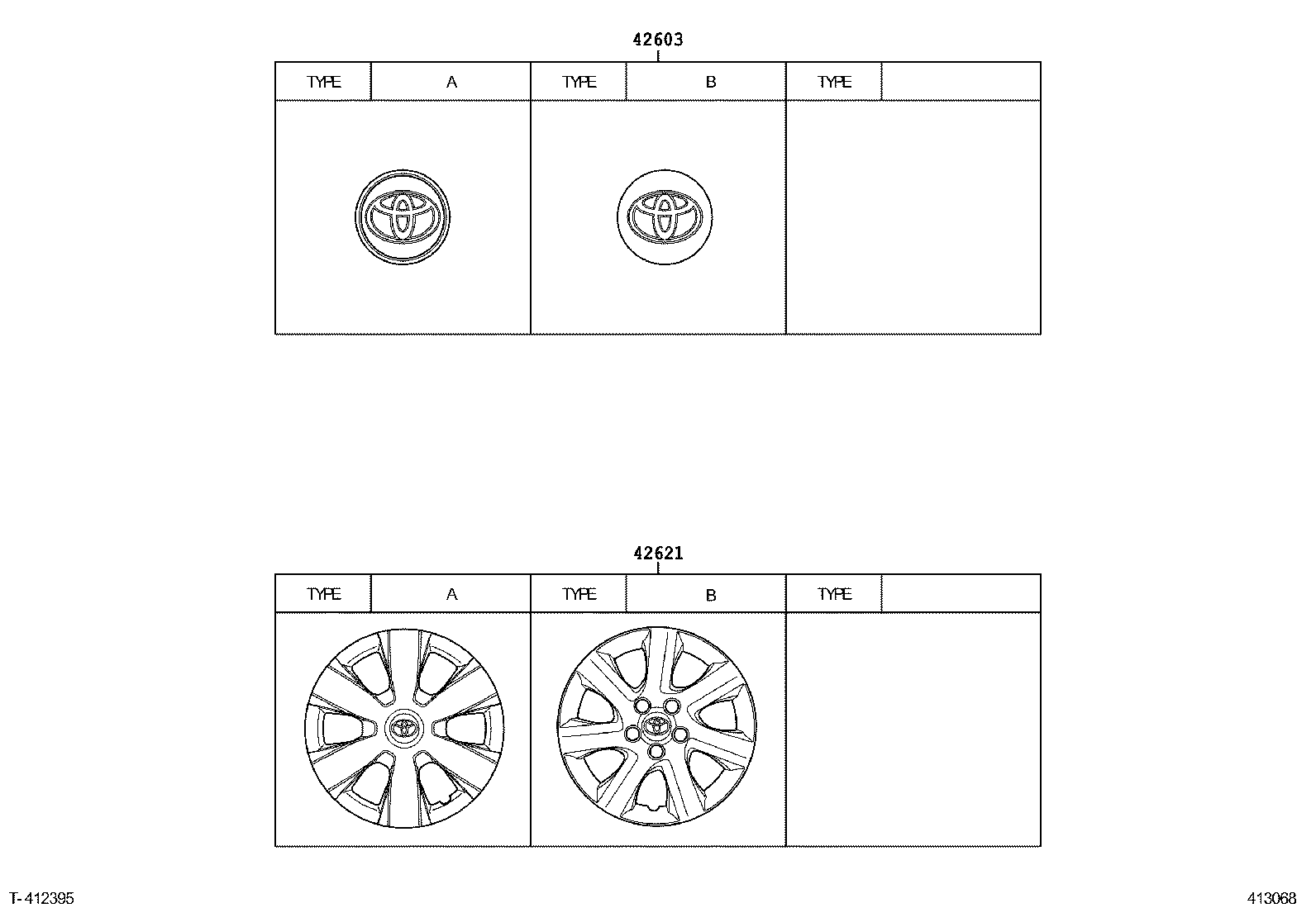

ILLUST NO. 2 OF 3(0601- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-44070	ACV40..RHD *ALU,TIRE & DISK WHEEL-215/60R16 95V 6.5J INDIA SPEC ALUMINUM,TYPE A:REFER ILLUST.	01/2006 - 03/2009	4
42603-44070	ACV40..LE *ALU,TIRE & DISK WHEEL-215/60R16 95V 6.5J ALUMINUM,TYPE A:REFER ILLUST.	01/2006 - 03/2009	4
42621 - CAP, WHEEL
42602-33110	ACV40..LE TYPE A:REFER ILLUST.	01/2006 - 03/2009	4
