ACV40R-AEMNKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

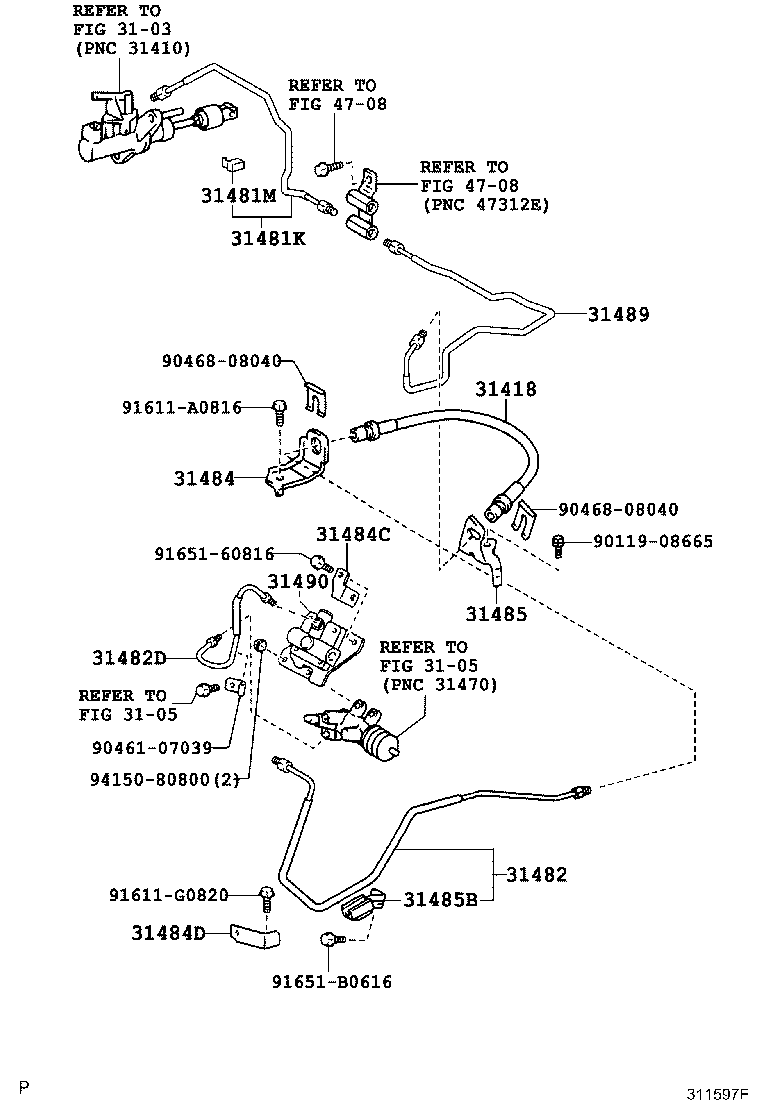

ILLUST NO. 2 OF 2(0601- )RHD..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02952 |
ACV40..5F |
1 | ||
| 31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR | ||||
| 31481-33070 |
ACV40..RHD..5F |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01C82 |
ACV40..RHD..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-33061 |
ACV40..5F |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-33080 |
ACV40..5F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-33030 |
ACV40..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-42080 |
ACV40..5F |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-20320 |
ACV40..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-33010 |
ACV40..5F |
1 | ||
| 31485B - BRACKET, TUBE CLAMP | ||||
| 47386-33040 |
ACV40..5F |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-33020 |
ACV40..RHD..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-42010 |
ACV40..5F |
1 | ||
| Common parts | ||||
| 90119-08665 | ||||
| 90461-07039 | ||||
| 90468-08040 | ||||
| 91611-A0816 | ||||
| 91611-G0820 | ||||
| 91651-60816 | ||||
| 91651-B0616 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 4708 | ||||

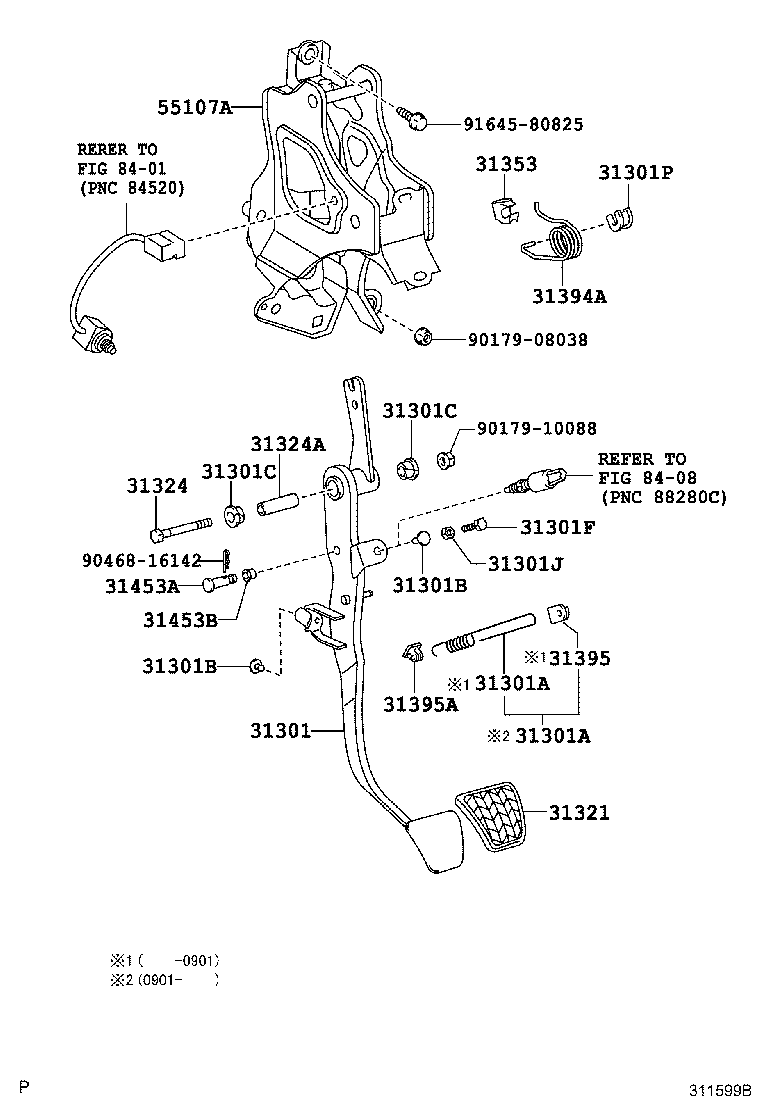

ILLUST NO. 1 OF 2(0601- )RHD..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-33060 |
ACV40..RHD..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
ACV40..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
ACV40..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ACV40..5F |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ACV40..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ACV40..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ACV40..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ACV40..5F |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-41000 |
ACV40..RHD..5F CRUISE CONTROL-WITH |
1 | ||
| 94130-61000 |
ACV40..5F |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
ACV40..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
ACV40..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
ACV40..RHD..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
ACV40..RHD..5F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
ACV40..5F |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-33050 |
ACV40..RHD..5F |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
ACV40..5F |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
ACV40..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08051 |
ACV40..5F L=31.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
ACV40..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-33050 |
ACV40..RHD..5F |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 91645-80825 | ||||
| Linked diagrams | ||||
| 8408 | ||||
