ACV40R-AEMNKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )2AZFE

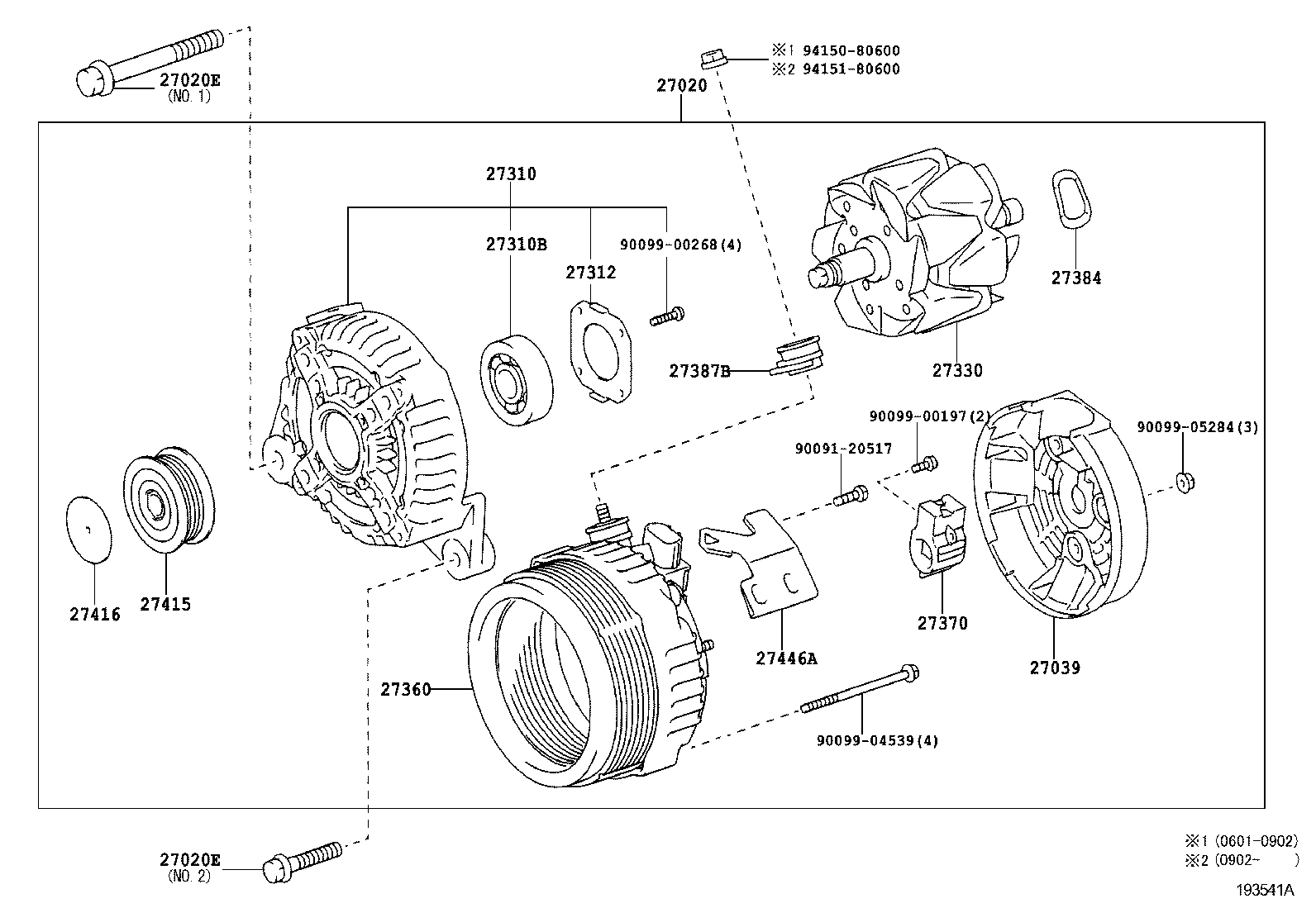

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-28310 |
2AZFE..ACV40 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91551-80840 |
2AZFE..ACV40 NO.2 |
1 | ||
| 91512-81085 |
2AZFE..ACV40 NO.1 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91551-80840 |
2AZFE..ACV40 NO.2 |
1 | ||
| 91512-81085 |
2AZFE..ACV40 NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-27060 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-28120 |
2AZFE..ACV40 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-28270 |
2AZFE..ACV40 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
2AZFE..ACV40 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W040 |
2AZFE..ACV40 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
2AZFE..ACV40 |
1 | ||
| 27446A - CLAMP | ||||
| 27446-28120 |
2AZFE..ACV40 |
1 | ||
| Common parts | ||||
| 90091-20517 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
