ACV40R-AEMNKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )2AZFE

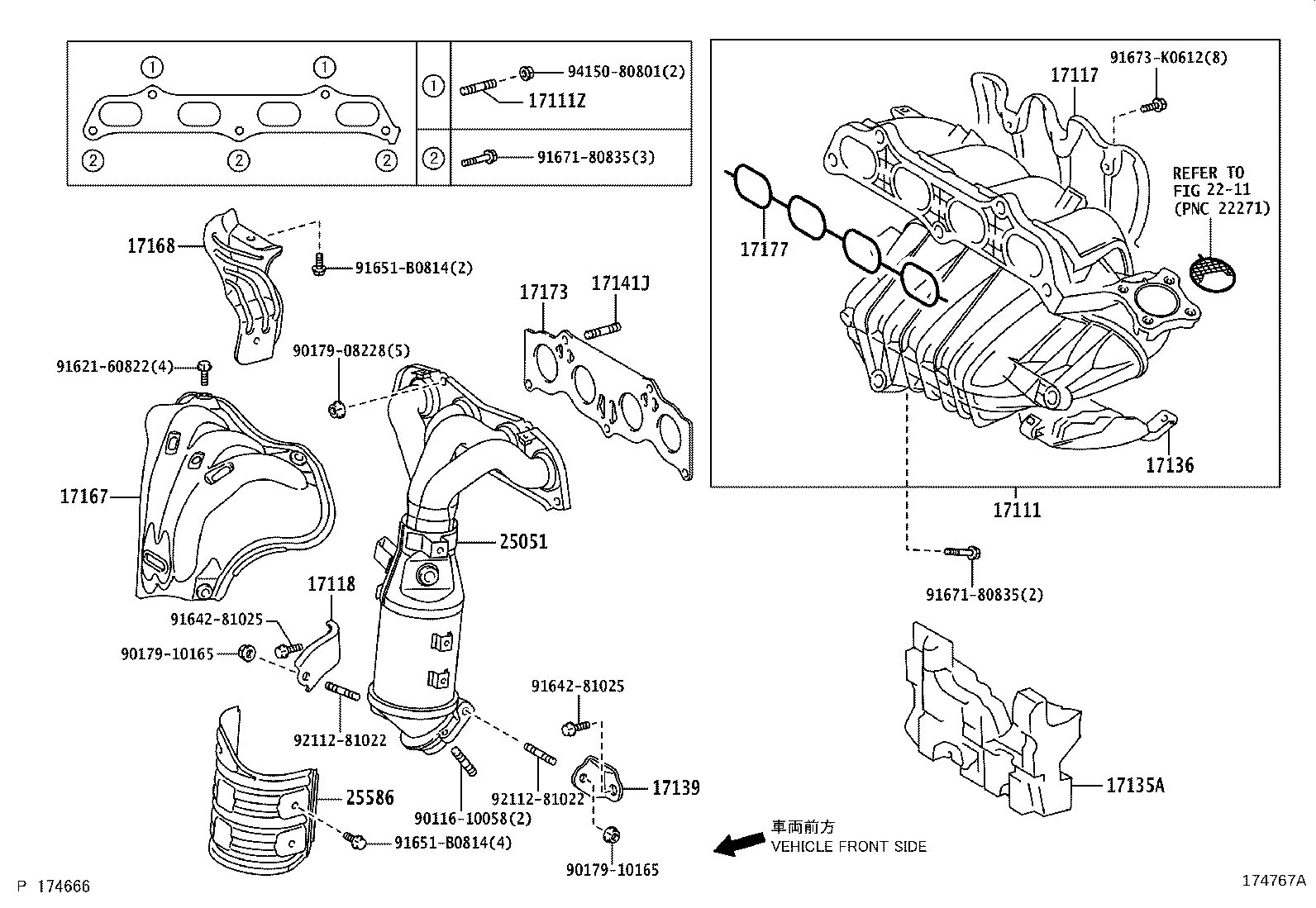

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-28140 |
2AZFE..ACV40 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
2AZFE..ACV40 |
2 | ||
| 17117 - INSULATOR, INTAKE PIPE | ||||
| 17117-28040 |
2AZFE..ACV40 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-28080 |
2AZFE..ACV40 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-28011 |
2AZFE..ACV40 |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-28020 |
2AZFE..ACV40 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-28050 |
2AZFE..ACV40 |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-08037 |
2AZFE..ACV40 |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-28060 |
2AZFE..ACV40 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-28030 |
2AZFE..ACV40 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-28010 |
2AZFE..ACV40 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-28010 |
2AZFE..ACV40 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-28330 |
2AZFE..ACV40 *114=TOYOTA/28330/Y |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-28090 |
2AZFE..ACV40 |
1 | ||
| Common parts | ||||
| 90116-10058 | ||||
| 90179-08228 | ||||
| 90179-10165 | ||||
| 91621-60822 | ||||
| 91642-81025 | ||||
| 91651-B0814 | ||||
| 91671-80835 | ||||
| 91673-K0612 | ||||
| 92112-81022 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 2211 | ||||
