ACV40R-AEMNKW (2006)
Toyota Camry
(0601- )2AZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11711-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11711-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11711-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11711-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11711-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11711-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11711-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11711-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11711-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11711-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11711-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11721-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11721-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11721-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11721-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11721-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11721-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11721-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11721-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11721-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11721-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11721-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11721-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11721 - BEARING, CRANKSHAFT, NO.2 | ||||
| 11721-2802001 |
2AZFE..ACV40 MARK1,REFER REPAIR MANUAL |
5 | ||
| 11721-2802002 |
2AZFE..ACV40 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11721-2802003 |
2AZFE..ACV40 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11721-2802004 |
2AZFE..ACV40 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-28020 |
2AZFE..ACV40 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-28020 |
2AZFE..ACV40 STD |
2 | ||
| 11911 - BEARING, BALANCESHAFT, NO.1 | ||||
| 11911-2801002 |
2AZFE..ACV40 MARK 2,*195:REFER R/M |
8 | ||
| 11911-2801003 |
2AZFE..ACV40 MARK 3,*195:REFER R/M |
8 | ||
| 11911-2801001 |
2AZFE..ACV40 MARK 1,*195:REFER R/M |
8 | ||
| 11911 - BEARING, BALANCESHAFT, NO.1 | ||||
| 11911-2801002 |
2AZFE..ACV40 MARK 2,*195:REFER R/M |
8 | ||
| 11911-2801003 |
2AZFE..ACV40 MARK 3,*195:REFER R/M |
8 | ||
| 11911-2801001 |
2AZFE..ACV40 MARK 1,*195:REFER R/M |
8 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-28160 |
2AZFE..ACV40 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-2801001 |
2AZFE..ACV40 MARK 1,REFER REPAIR MANUAL |
8 | ||
| 13281-2801002 |
2AZFE..ACV40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13281-2801003 |
2AZFE..ACV40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2AZFE..ACV40 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
2AZFE..ACV40 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09790C0 |
2AZFE..ACV40 MARK C,REFER REPAIR MANUAL |
4 | ||
| 13201-09790A0 |
2AZFE..ACV40 MARK A,REFER REPAIR MANUAL |
4 | ||
| 13201-09790B0 |
2AZFE..ACV40 MARK B,REFER REPAIR MANUAL |
4 | ||
| 13211 - PISTON | ||||
| 13211-28110C0 |
2AZFE..ACV40 MARKC,REFER REPAIR MANUAL |
4 | ||
| 13211-28110B0 |
2AZFE..ACV40 MARKB,REFER REPAIR MANUAL |
4 | ||
| 13211-28110A0 |
2AZFE..ACV40 MARKA,REFER REPAIR MANUAL |
4 | ||
| 13251 - PIN, PISTON | ||||
| 13251-28020C0 |
2AZFE..ACV40 MARKC,REFER REPAIR MANUAL |
4 | ||
| 13251-28020B0 |
2AZFE..ACV40 MARKB,REFER REPAIR MANUAL |
4 | ||
| 13251-28020A0 |
2AZFE..ACV40 MARKA,REFER REPAIR MANUAL |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
2AZFE..ACV40 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-28020 |
2AZFE..ACV40..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2AZFE..ACV40..5F L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12322 |
2AZFE..ACV40..5F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-28010 |
2AZFE..ACV40 (J) |
1 | ||
| 13401-0H010 |
2AZFE..ACV40 (L) |
1 | ||
| 13434A - KEY(FOR OIL PUMP DRIVE SPLINE) | ||||
| 95161-30416 |
2AZFE..ACV40 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-74011 |
2AZFE..ACV40..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-28020 |
2AZFE..ACV40 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30416 |
2AZFE..ACV40 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
2AZFE..ACV40 |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-28010 |
2AZFE..ACV40 *195 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-28030 |
2AZFE..ACV40 *195 |
1 | ||
| 13601A - BALANCESHAFT SUB-ASSY, NO.1 | ||||
| 13601-28020 |
2AZFE..ACV40 *195 |
1 | ||
| 13602 - BALANCESHAFT SUB-ASSY, NO.2 | ||||
| 13602-28020 |
2AZFE..ACV40 *195 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-28010 |
2AZFE..ACV40 *195 |
1 | ||

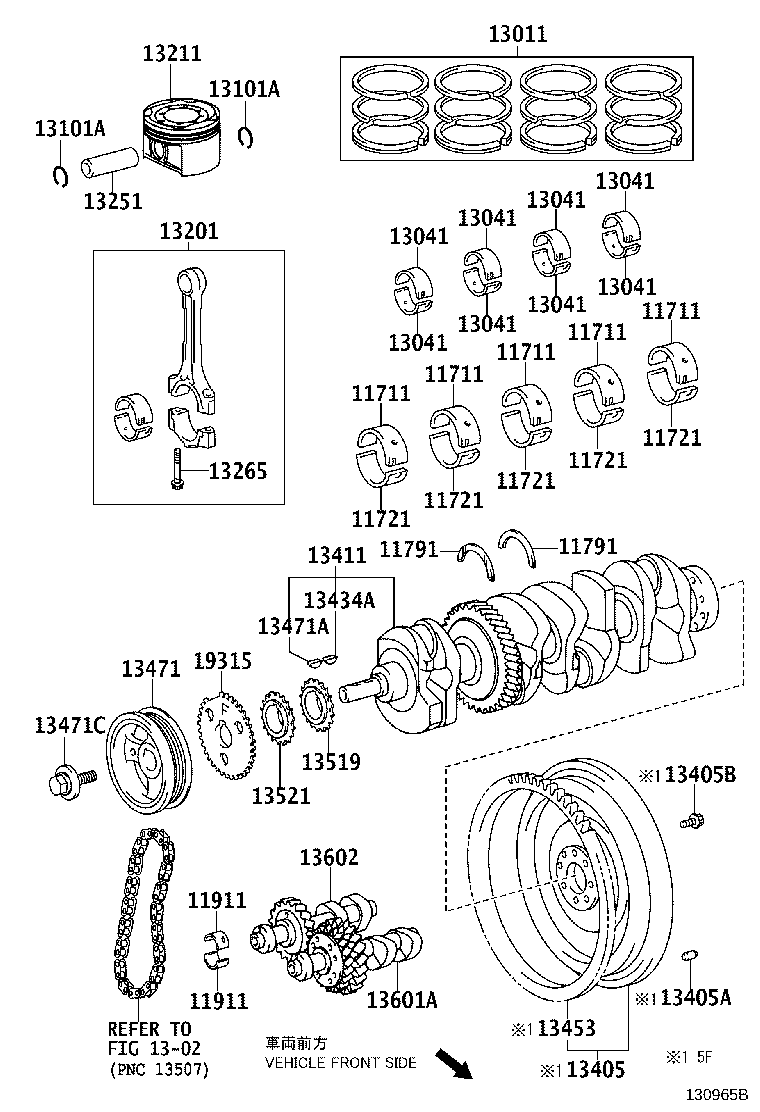

| Linked diagrams | ||||
| 1302 | ||||
