ACV40R-AEMNKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )2AZFE

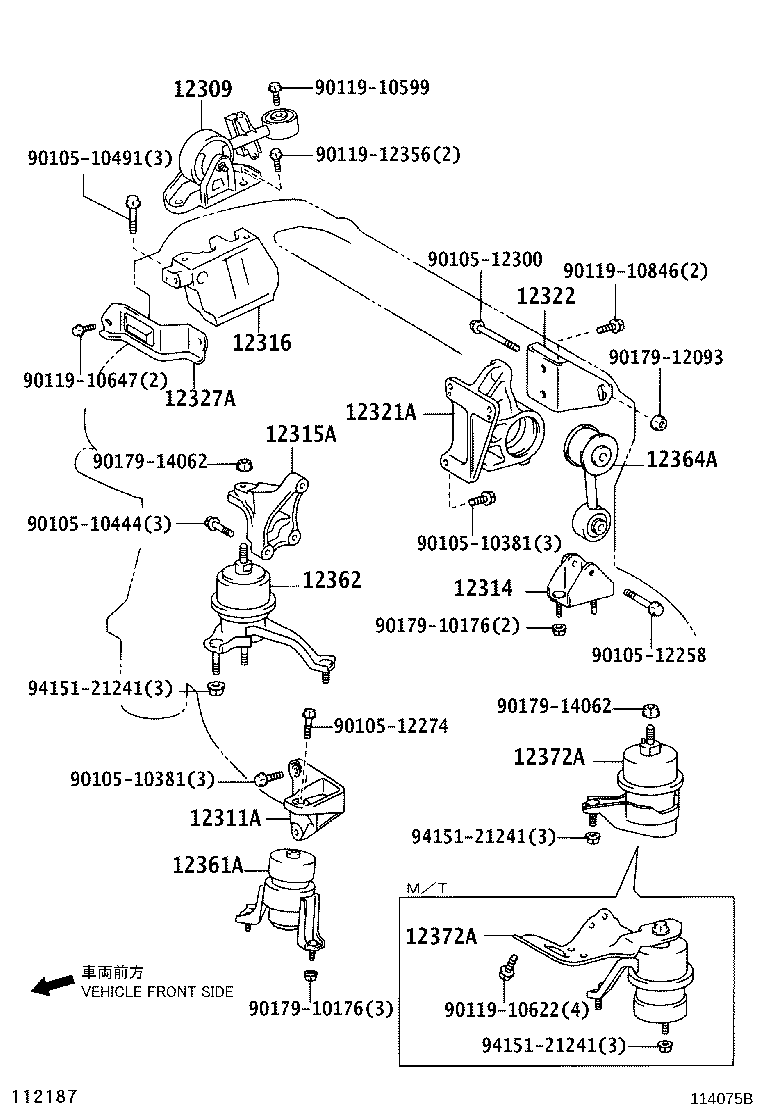

Click highlighted areas on diagram

diagram 12309 12311A 12314 12315A 12316 12321A 12322 12327A 12361A 12362 12364A 12372A 12372A 9010510381 9010510381 9010510444 9010510491 9010512258 9010512274 9010512300 9011910599 9011910622 9011910647 9011910846 9011912356 9017910176 9017910176 9017912093 9017914062 9017914062 9415121241 9415121241 9415121241
Part # Description Qty Price
12309 - ROD SUB-ASSY, ENGINE MOVING CONTROL
12309-28160

2AZFE..ACV40

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-28210

2AZFE..ACV40

 1
12314 - BRACKET, ENGINE LATERAL CONTROL ROD
12314-28030

2AZFE..ACV40..5F

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-28070

2AZFE..ACV40

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-28061

2AZFE..ACV40

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-28020

2AZFE..ACV40..5F

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-28050

2AZFE..ACV40..5F

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-28030

2AZFE..ACV40

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-28220

2AZFE..ACV40

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-28190

2AZFE..ACV40

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-28030

2AZFE..ACV40..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-28040

2AZFE..ACV40..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-28040

2AZFE..ACV40..5F

 1
Common parts
90105-10381
90105-10444
90105-10491
90105-12258
90105-12274
90105-12300
90119-10599
90119-10622
90119-10647
90119-10846
90119-12356
90179-10176
90179-12093
90179-14062
94151-21241
