ACV40L-AEMNKW (2006)
Toyota Camry
Production
Jan 2006
-
Jan 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

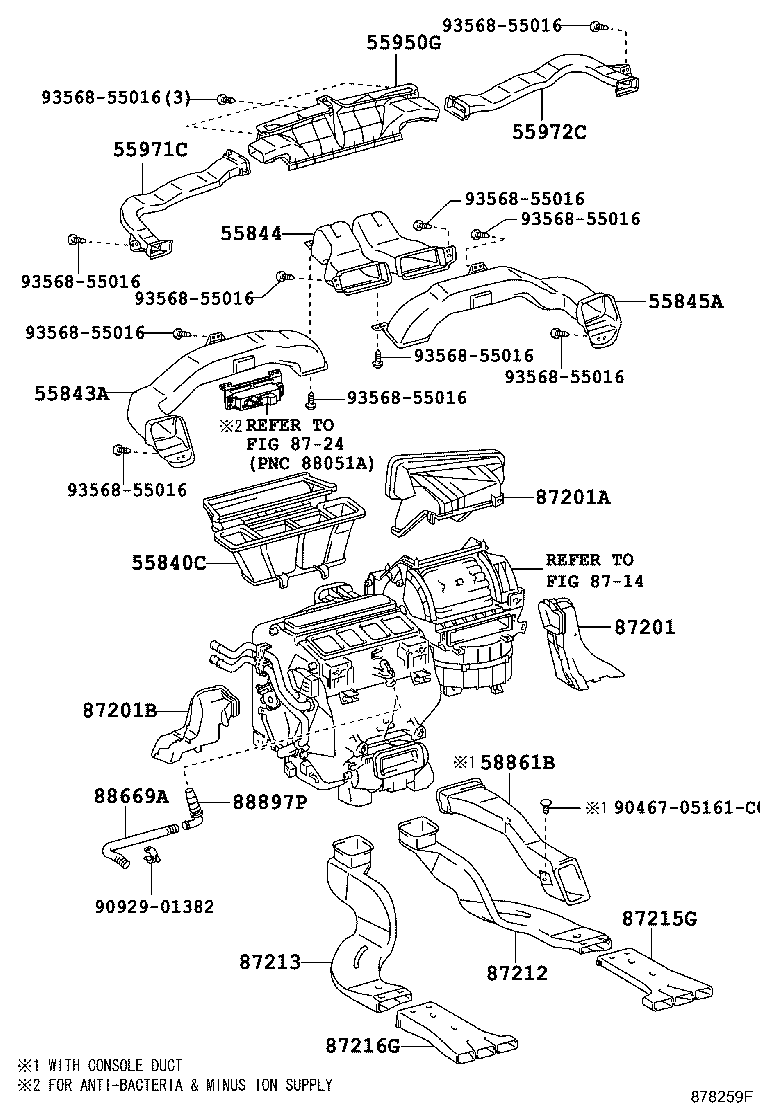

ILLUST NO. 2 OF 3(0601- )LHD
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-33010 |
ACV40,GSV40 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-33130 |
ACV40,GSV40..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-33140 |
ACV40,GSV40 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-33140 |
ACV40,GSV40..LHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33090 |
ACV40,GSV40 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-33100 |
ACV40,GSV40 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-33100 |
ACV40,GSV40 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-33290 |
ACV40,GSV40..LHD |
1 | ||
| 87201A - DUCT SUB-ASSY, AIR | ||||
| 87201-33270 |
ACV40,GSV40..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-33280 |
ACV40,GSV40..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-33040 |
ACV40,GSV40 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-33050 |
ACV40,GSV40 |
1 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-33010 |
ACV40,GSV40 |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-33010 |
ACV40,GSV40 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-33090 |
ACV40,GSV40 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-33030 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90467-05161C0 | ||||
| 90929-01382 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8724 | ||||

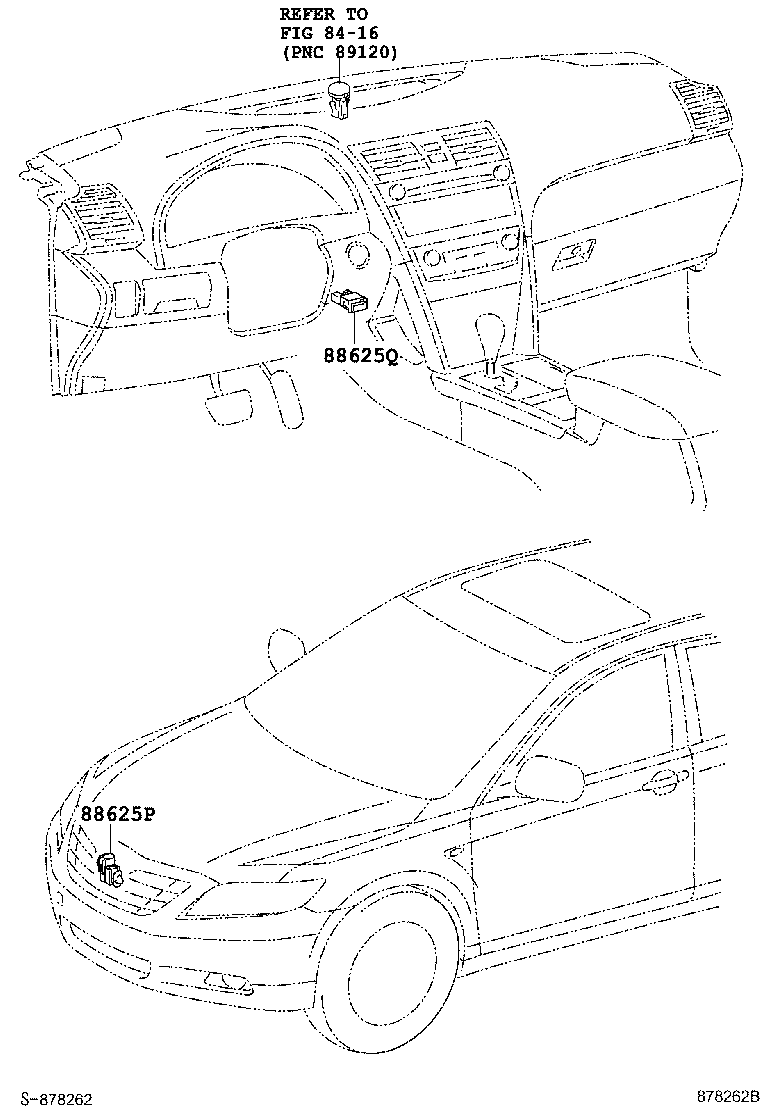

ILLUST NO. 3 OF 3(0601- )LHD
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
ACV40,GSV40 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ACV40,GSV40 |
1 | ||
| Linked diagrams | ||||
| 8416 | ||||
ILLUST NO. 1 OF 3(0601- )
Click highlighted areas on diagram
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-33B31 |
ACV40,GSV40..LHD |
1 | ||
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-33040 |
ACV40,GSV40..LHD |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-33820 |
ACV40,GSV40 |
1 | ||
| 55902D - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-33830 |
ACV40,GSV40..LHD |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-33220 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90467-10203 | ||||
| 93568-55016 | ||||
