ACV40L-AEMNKW (2009)

Toyota Camry

Production Jan 2009 - Aug 2011
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )LE,XLE ; (0903- )COMF,PREM

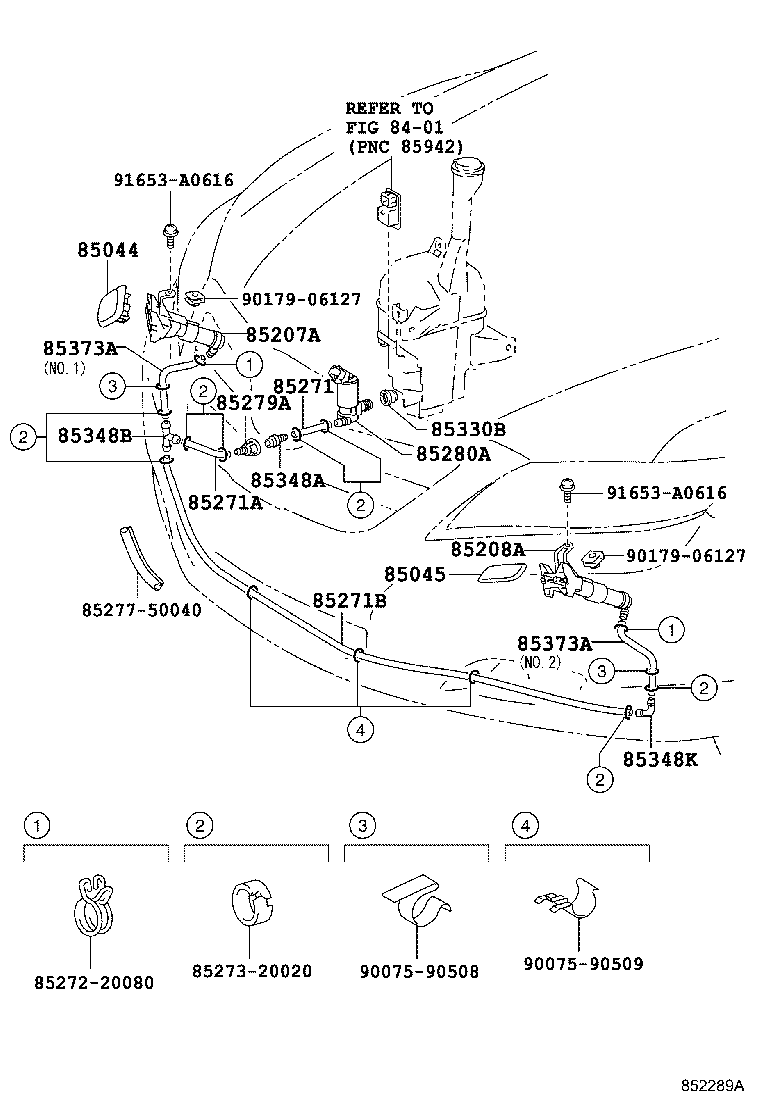

Click highlighted areas on diagram

diagram 8401 85044 85045 85207A 85208A 85271 85271A 85271B 8527220080 8527320020 8527750040 85279A 85280A 85330B 85348A 85348B 85348K 85373A 85373A 9007590508 9007590509 9017906127 9017906127 91653A0616 91653A0616
Part # Description Qty Price
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85044-33090C0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,BLACK,202

 1
85044-33090D0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,RED M.M.,3R3

 1
85044-33090H0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,TURQUOISE M.M.,776

 1
85044-33090A0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,SUPER WHITE 2,040

 1
85044-33090J0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,LT.BLUE ME.,8S4

 1
85044-33090B1

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,GRAY ME.,1G3

 1
85044-33090B0

ACV40,GSV40

HEAD LAMP CLEANER-WITH,SILVER ME.,1D4

 1
85044-33090E0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,BEIGE M. M.,4Q2

 1
85044-33090J1

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,DK.BLUE MC.,8T5

 1
85044-33070A0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,SUPER WHITE 2,040

 1
85044-33070B0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,SILVER ME.,1F7

 1
85044-33070E0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,BEIGE ME.,4T8

 1
85044-33070G0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,DK.GREEN MC.,6V4

 1
85044-33070B1

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,GRAY ME.,1G3

 1
85044-33070C0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,BLACK,202

 1
85044-33070J0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,DK.BLUE MC.,8T5

 1
85044-33070D0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,RED M.M.,3R3

 1
85044-33070H0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,TURQUOISE M.M.,776

 1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85045-33040B0

ACV40,GSV40

HEAD LAMP CLEANER-WITH,SILVER ME.,1D4

 1
85045-33040H0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,TURQUOISE M.M.,776

 1
85045-33040C0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,BLACK,202

 1
85045-33040J1

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,DK.BLUE MC.,8T5

 1
85045-33040B1

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,GRAY ME.,1G3

 1
85045-33040A0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,SUPER WHITE 2,040

 1
85045-33040J0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,LT.BLUE ME.,8S4

 1
85045-33040E0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,BEIGE M. M.,4Q2

 1
85045-33040D0

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH,RED M.M.,3R3

 1
85045-33060B1

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,GRAY ME.,1G3

 1
85045-33060H0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,TURQUOISE M.M.,776

 1
85045-33060G0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,DK.GREEN MC.,6V4

 1
85045-33060A0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,SUPER WHITE 2,040

 1
85045-33060J0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,DK.BLUE MC.,8T5

 1
85045-33060E0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,BEIGE ME.,4T8

 1
85045-33060D0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,RED M.M.,3R3

 1
85045-33060C0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,BLACK,202

 1
85045-33060B0

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,SILVER ME.,1F7

 1
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-33060

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85207-33010

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-33010

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85208-33060

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-16020

ACV40,GSV40..LE,XLE

L=40,HEAD LAMP CLEANER-WITH

 1
85375-16020

ACV40..LHD..5F..LE

L=40,HEAD LAMP CLEANER-WITH

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90445-14055

ACV40,GSV40..LE,XLE

*H,L=60,HEAD LAMP CLEANER-WITH

 1
85375-32180

ACV40..LHD..5F..LE

L=70,HEAD LAMP CLEANER-WITH

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85377-12380

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85276-33060

ACV40..LHD..5F..LE

L=1370,HEAD LAMP CLEANER-WITH

 1
85279A - JOINT, HEADLAMP CLEANER HOSE
85279-33050

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85279-33050

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-30040

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85280-30040

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90099-32089

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
90099-32089

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85279-33040

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85279-33040

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85352-12010

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85287-53060

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85379-22080

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85379-22080

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-12020

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 2
85375-12510

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,NO.2

 1
85375-89133

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,NO.1

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-12020

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 2
85375-12510

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,NO.2

 1
85375-89133

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH,NO.1

 1
Common parts
85272-20080
85273-20020
85277-50040
90075-90508
90075-90509
90179-06127
91653-A0616
Linked diagrams
8401
