ACV40L-AEMNKW (2009)

Toyota Camry

Production Jan 2009 - Aug 2011
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )LE,XLE ; (0903- )COMF,PREM

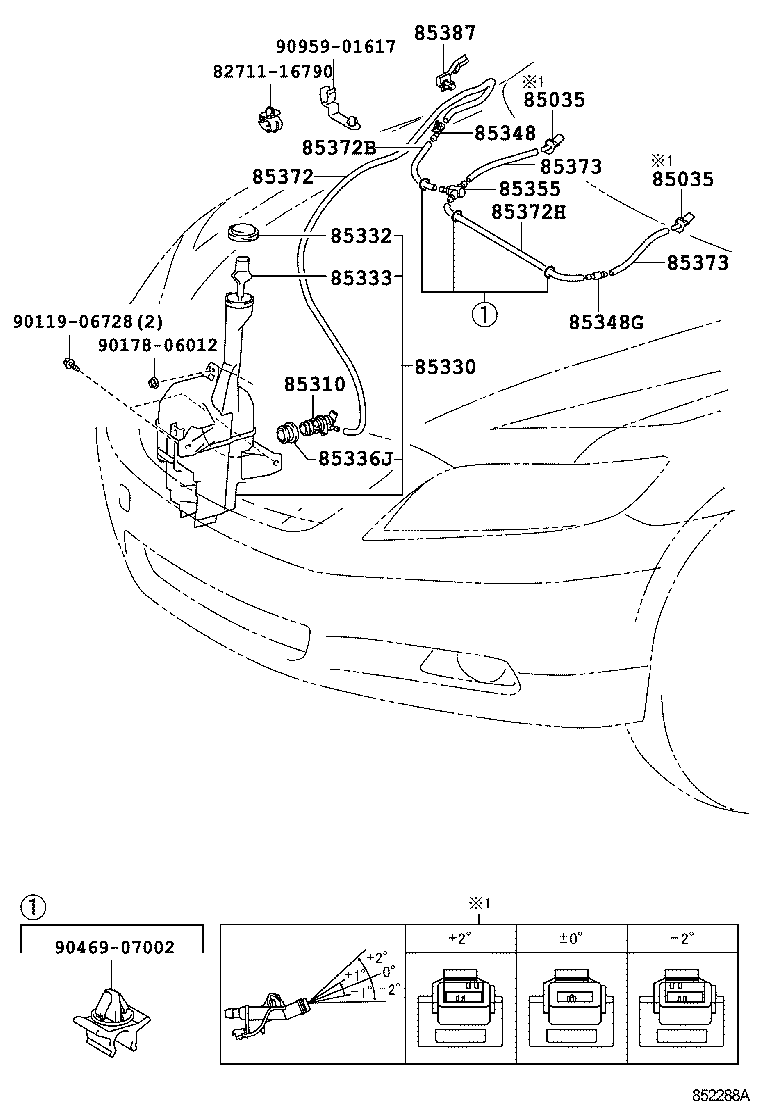

Click highlighted areas on diagram

W/O(HEADLAMP CLEANER)

diagram 8271116790 85035 85035 85310 85330 85332 85333 85336J 85348 85348G 85355 85372 85372B 85372H 85373 85373 85387 9011906728 9017806012 9046907002 9095901617
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30140

ACV40,GSV40

ANGLE -1

 2
85381-30160

ACV40,GSV40

ANGLE -2

 2
85381-30150

ACV40,GSV40

ANGLE +2

 2
85381-30110

ACV40,GSV40

ANGLE 0

 2
85381-30130

ACV40,GSV40

ANGLE +1

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30140

ACV40,GSV40

ANGLE -1

 2
85381-30160

ACV40,GSV40

ANGLE -2

 2
85381-30150

ACV40,GSV40

ANGLE +2

 2
85381-30110

ACV40,GSV40

ANGLE 0

 2
85381-30130

ACV40,GSV40

ANGLE +1

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

ACV40,GSV40

 1
85330-60190

ACV40,GSV40

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-33090

ACV40,GSV40..LE,XLE

HEAD LAMP CLEANER-WITH

 1
85315-33320

ACV40..5FC..LE;ACV40,GSV40..(5F,6FC)..(COMF,LE,XLE)

 1
85355-33120

ACV40..LHD..5F..LE

HEAD LAMP CLEANER-WITH

 1
85315-33360

ACV40..LHD..LE

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-33320

ACV40,GSV40

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-21020

ACV40,GSV40

 1
85336J - PROTECTOR, WASHER JAR
85336-60300

ACV40,GSV40

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-20800

ACV40,GSV40

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

ACV40,GSV40

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-30080

ACV40,GSV40

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

ACV40,GSV40

*H,L=1600

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ACV40,GSV40

*H,L=410

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ACV40,GSV40

*H,L=660

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ACV40,GSV40

*H,L=240

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ACV40,GSV40

*H,L=240

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-33080

ACV40,GSV40

 1
Common parts
82711-16790
90119-06728
90178-06012
90469-07002
90959-01617
