ACV40L-AEMNKW (2009)
Toyota Camry
Production
Jan 2009
-
Aug 2011
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )LE,XLE

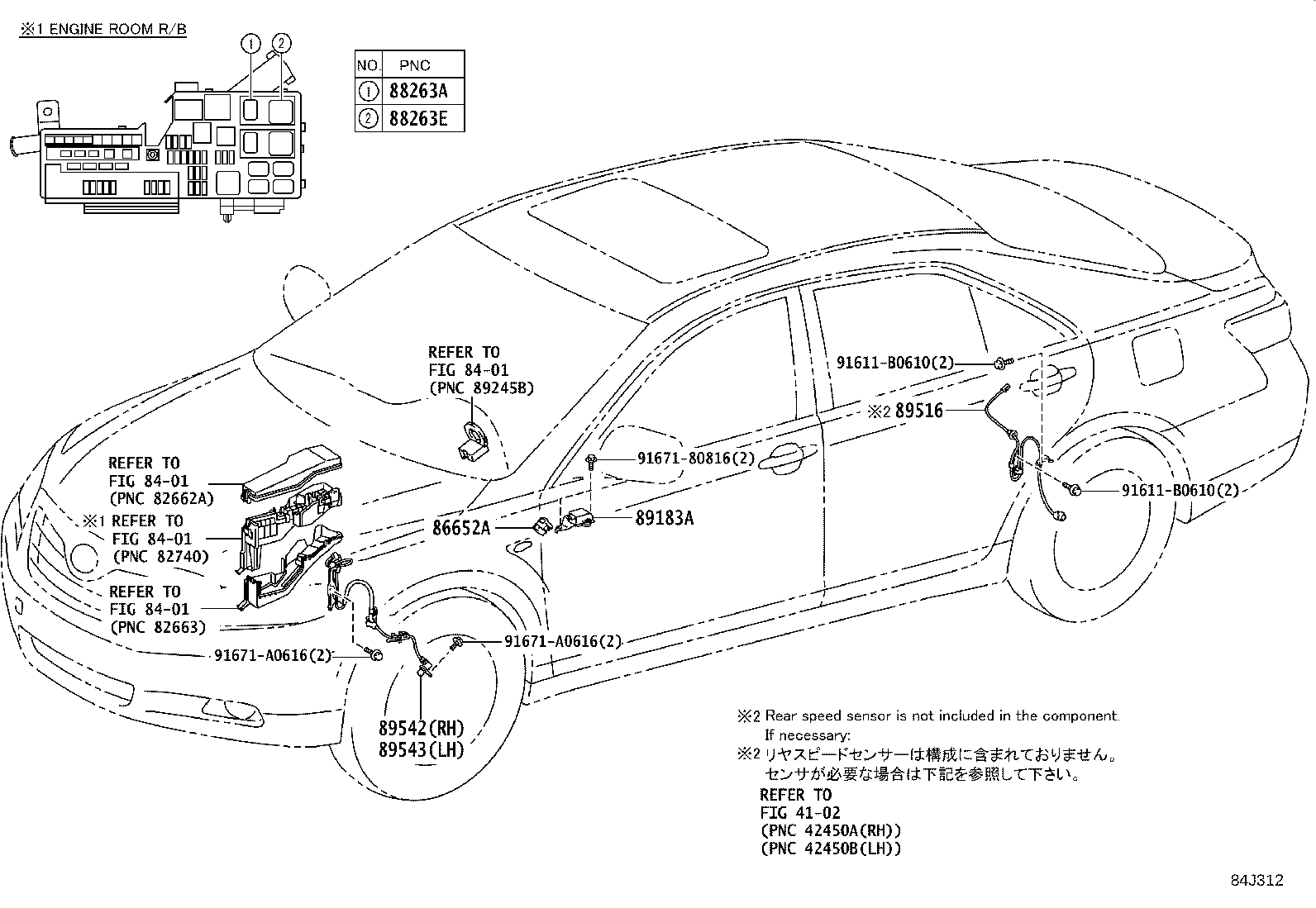

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-48010 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-32070 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-21010 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-33050 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-33040 |
ACV40,GSV40 LH |
1 | ||
| 89516-33030 |
ACV40,GSV40 RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-33090 |
ACV40,GSV40 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-33080 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 91611-B0610 | ||||
| 91671-80816 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
(0901- )LE,XLE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-48010 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-32070 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-21010 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-33050 |
ACV40..LE;ACV40..5FC..COMF W(VSC) |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-33040 |
ACV40,GSV40 LH |
1 | ||
| 89516-33030 |
ACV40,GSV40 RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-33090 |
ACV40,GSV40 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-33080 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 91611-B0610 | ||||
| 91671-80816 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
