ACV40L-AEMNKW (2009)

Toyota Camry

Production Jan 2009 - Aug 2011
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

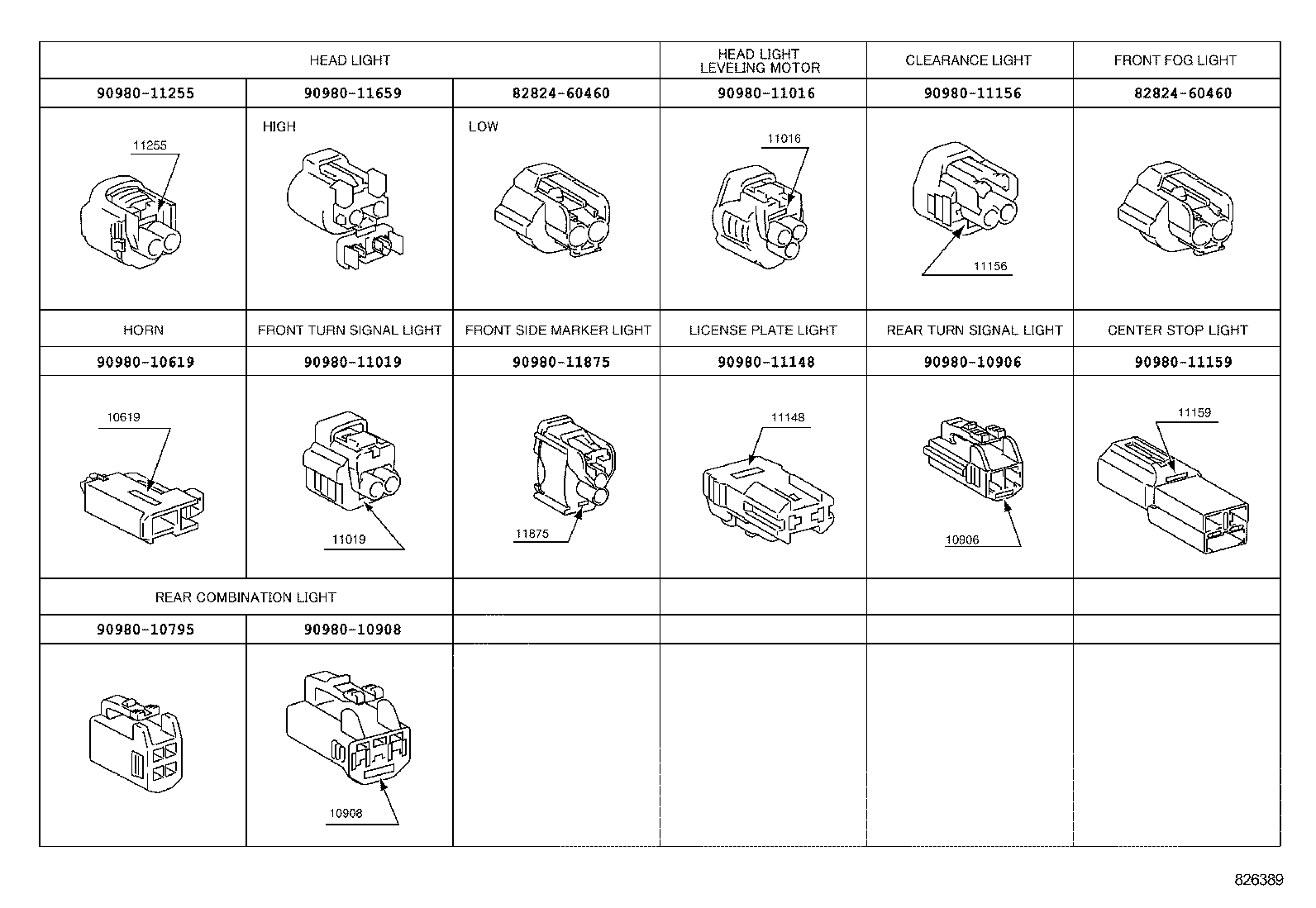

ILLUST NO. 9 OF 9(0901- )LE,XLE ; (0903- )COMF,PREM

Click highlighted areas on diagram

CONNECTOR

diagram 8282460460 8282460460 9098010619 9098010795 9098010906 9098010908 9098011016 9098011019 9098011148 9098011156 9098011159 9098011255 9098011659 9098011875
Part # Description Qty Price
Common parts
82824-60460
90980-10619
90980-10795
90980-10906
90980-10908
90980-11016
90980-11019
90980-11148
90980-11156
90980-11159
90980-11255
90980-11659
90980-11875

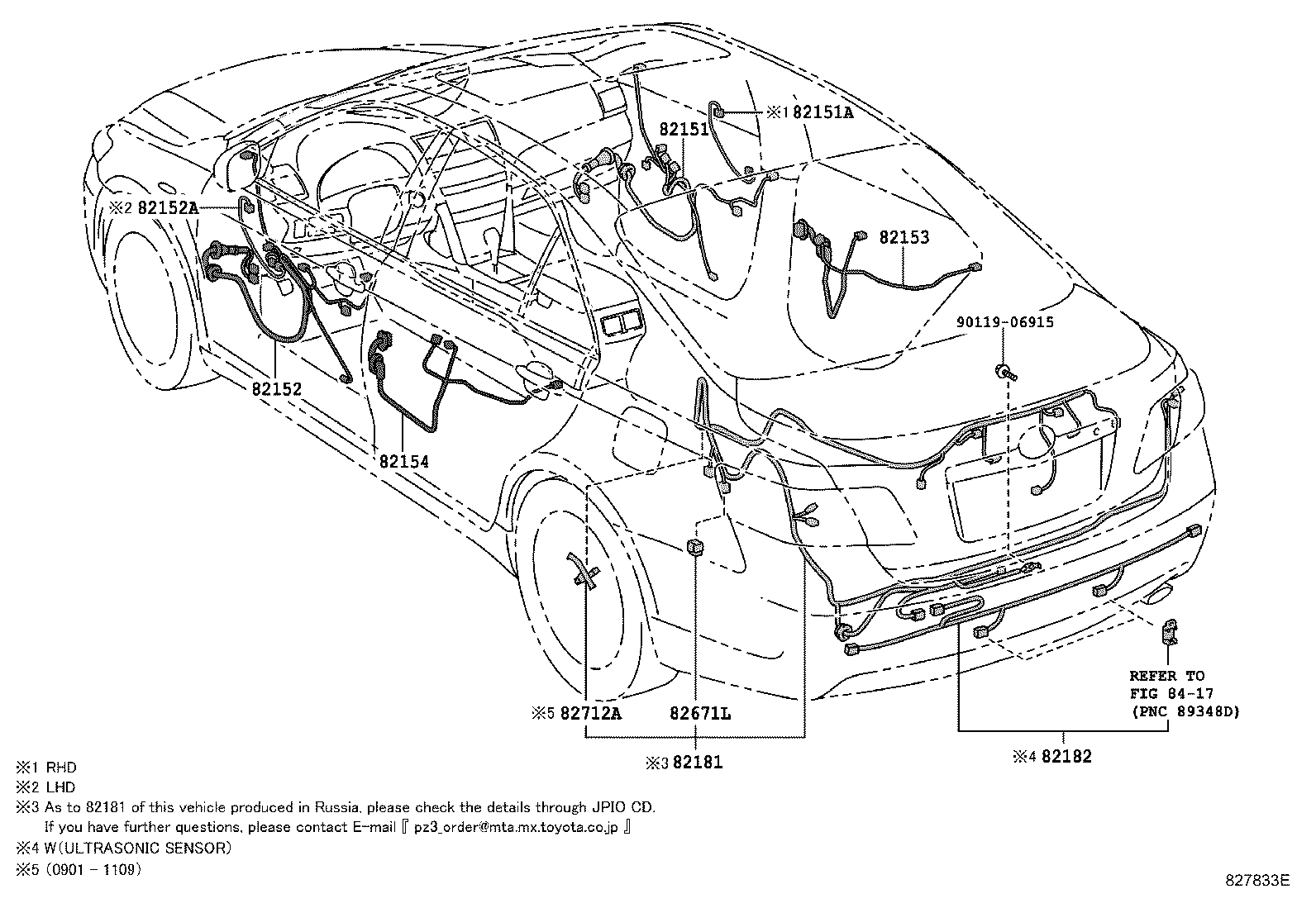

ILLUST NO. 4 OF 9(0901- )LE,XLE ; (0903- )COMF,PREM

Click highlighted areas on diagram

DOOR

diagram 82151 82151A 82152 82152A 82153 82154 82181 82182 82671L 82712A 8417 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-33B60

ACV40..LHD..LE

 1
82151-33A50

ACV40,GSV40..LHD..(LE,XLE)

 1
82152 - WIRE, FRONT DOOR, LH
82152-33C10

ACV40..LHD..LE

 1
82152-33A80

ACV40,GSV40..LHD..(LE,XLE)

 1
82152A - WIRE, FRONT DOOR, NO.2, LH
82156-33020

ACV40,GSV40..LHD

 1
82153 - WIRE, REAR DOOR, NO.1
82153-33250

ACV40,GSV40..LE,XLE

 1
82153-33260

ACV40,GSV40..LHD..(LE,XLE)

 1
82154 - WIRE, REAR DOOR, NO.2
82154-33180

ACV40,GSV40..LE,XLE

 1
82154-33190

ACV40,GSV40..LHD..(LE,XLE)

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-33360

ACV40..LE

 1
82181-33180

ACV40,GSV40..LE,XLE

 1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-33120

ACV40,GSV40..LHD..(LE,XLE)

RUSSIA SPEC

 1
82671L - BLOCK, JUNCTION, NO.4
82671-30340

ACV40,GSV40

 1
Common parts
90119-06915
Linked diagrams
8417
