ACV40L-AEMNKW (2009)
Toyota Camry
(0901- )LE,XLE ; (0903- )COMF,PREM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
ACV40,GSV40 12V 5W |
2 | ||
| 90981-12010 |
ACV40,GSV40 12V 5W |
2 | ||
| 81230M - LAMP ASSY, COURTESY, RH | ||||
| 81230-47010 |
ACV40,GSV40 |
1 | ||
| 81230-47010 |
ACV40,GSV40 |
1 | ||
| 81230N - LAMP ASSY, COURTESY, LH | ||||
| 81230-47010 |
ACV40,GSV40 |
1 | ||
| 81230-47010 |
ACV40,GSV40 |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-52040E0 |
ACV40,GSV40 GREGE,TRIM4# |
1 | ||
| 81240-52040B0 |
ACV40,GSV40 GRAY,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ACV40,GSV40 12V 8W |
1 | ||
| 90981-11062 |
ACV40,GSV40..LE,XLE 12V 8W,MOON ROOF-WITH |
2 | ||
| 90981-11062 |
ACV40,GSV40..LE,XLE 12V 8W,MOON ROOF-WITH |
2 | ||
| 90981-14011 |
ACV40,GSV40 12V 8W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ACV40,GSV40 12V 8W |
1 | ||
| 90981-11062 |
ACV40,GSV40..LE,XLE 12V 8W,MOON ROOF-WITH |
2 | ||
| 90981-11062 |
ACV40,GSV40..LE,XLE 12V 8W,MOON ROOF-WITH |
2 | ||
| 90981-14011 |
ACV40,GSV40 12V 8W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ACV40,GSV40 12V 8W |
1 | ||
| 90981-11062 |
ACV40,GSV40..LE,XLE 12V 8W,MOON ROOF-WITH |
2 | ||
| 90981-11062 |
ACV40,GSV40..LE,XLE 12V 8W,MOON ROOF-WITH |
2 | ||
| 90981-14011 |
ACV40,GSV40 12V 8W |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-33030 |
ACV40,GSV40 |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
ACV40,GSV40 12V 1.2W W/O SOCKET |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90084-81002 |
ACV40,GSV40 12V 5W |
2 | ||
| 90084-81002 |
ACV40,GSV40..LHD..(LE,XLE) 12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,BLUETOOTH |
3 | ||
| 90084-81002 |
ACV40,GSV40..LE,XLE 12V 5W,MOON ROOF-WITH |
3 | ||
| 90084-81002 |
ACV40,GSV40..LE,XLE 12V 5W,MOON ROOF-WITH |
3 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90084-81002 |
ACV40,GSV40 12V 5W |
2 | ||
| 90084-81002 |
ACV40,GSV40..LHD..(LE,XLE) 12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,BLUETOOTH |
3 | ||
| 90084-81002 |
ACV40,GSV40..LE,XLE 12V 5W,MOON ROOF-WITH |
3 | ||
| 90084-81002 |
ACV40,GSV40..LE,XLE 12V 5W,MOON ROOF-WITH |
3 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90084-81002 |
ACV40,GSV40 12V 5W |
2 | ||
| 90084-81002 |
ACV40,GSV40..LHD..(LE,XLE) 12V 5W,MOON ROOF-WITH&AUDIO-6CD CHANGER,6SPEAKER,BLUETOOTH |
3 | ||
| 90084-81002 |
ACV40,GSV40..LE,XLE 12V 5W,MOON ROOF-WITH |
3 | ||
| 90084-81002 |
ACV40,GSV40..LE,XLE 12V 5W,MOON ROOF-WITH |
3 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-12020 |
ACV40,GSV40 |
1 | ||
| 81330-12020 |
ACV40,GSV40 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
ACV40,GSV40 12V 3.8W |
1 | ||
| 90981-11020 |
ACV40,GSV40 12V 3.8W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100B1 |
ACV40,GSV40 GRAY,TRIM1# |
2 | ||
| 81340-30100E1 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 81340-30100B1 |
ACV40,GSV40 GRAY,TRIM1# |
2 | ||
| 81340-30100E1 |
ACV40,GSV40 GREGE,TRIM4# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
ACV40,GSV40 12V 8W |
2 | ||
| 90981-11062 |
ACV40,GSV40 12V 8W |
2 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-30050B0 |
ACV40,GSV40..LE,XLE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 81360-30040E0 |
ACV40,GSV40..LE,XLE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 81360-30050E0 |
ACV40,GSV40..LE,XLE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 81360-30040B1 |
ACV40,GSV40..LE,XLE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 81360-30040B1 |
ACV40,GSV40..LE,XLE MOON ROOF-WITH,GRAY,TRIM1# |
1 | ||
| 81360-30040E0 |
ACV40,GSV40..LE,XLE MOON ROOF-WITH,GREGE,TRIM4# |
1 | ||
| 81366C - BASE, ROOM LAMP SWITCH | ||||
| 81366-68010 |
ACV40,GSV40 |
1 | ||

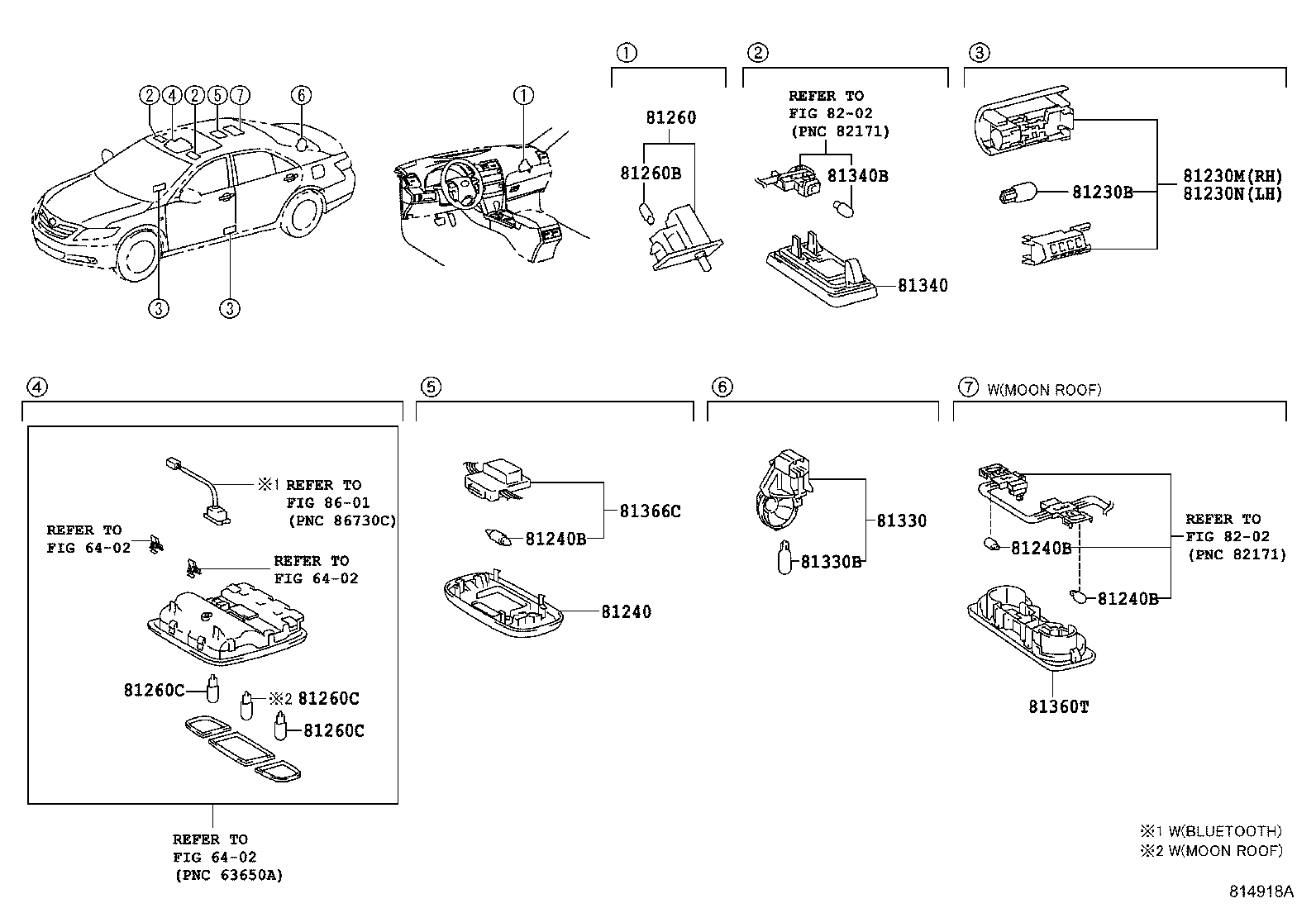

| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
| 8601 | ||||
