ACV40L-AEMNKW (2009)

Toyota Camry

Production Jan 2009 - Aug 2011
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )LHD..LE ; (0903- )COMF

Click highlighted areas on diagram

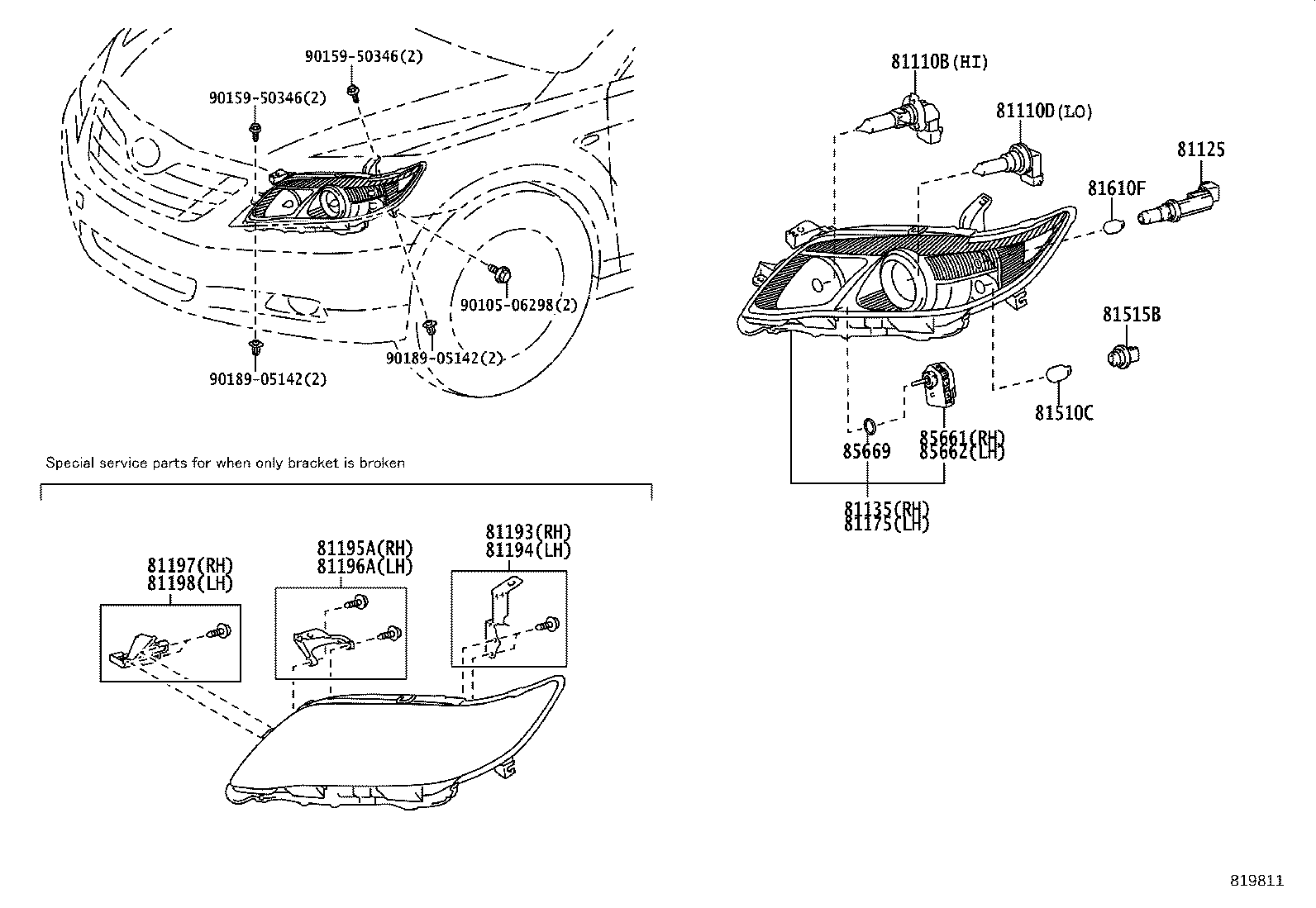

HALOGEN HEADLAMP

diagram 81110B 81110D 81125 81135 81175 81193 81194 81195A 81196A 81197 81198 81510C 81515B 81610F 85661 85662 85669 9010506298 9015950346 9015950346 9018905142 9018905142
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81041

ACV40,GSV40

12V 65W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ACV40,GSV40..LHD

12V 55W,HALOGEN

 2
81125 - CORD, HEADLAMP
81125-33620

ACV40,GSV40..LHD

HEADLAMP-HIGH INTENSITY DISCHARGE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-33610

ACV40,GSV40..LHD

 1
81145-33630

ACV40,GSV40..LHD

HEADLAMP-HIGH INTENSITY DISCHARGE

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-33610

ACV40,GSV40..LHD

 1
81185-33630

ACV40,GSV40..LHD

HEADLAMP-HIGH INTENSITY DISCHARGE

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-33050

ACV40,GSV40

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-33050

ACV40,GSV40

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-33020

ACV40,GSV40

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-33020

ACV40,GSV40

 1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-33010

ACV40,GSV40

 1
81198 - BRACKET, HEADLAMP, LWR LH
81198-33010

ACV40,GSV40

 1
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ACV40,GSV40

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACV40,GSV40

12V 5W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12020

ACV40,GSV40

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020

ACV40,GSV40..LHD

HEADLAMP-HIGH INTENSITY DISCHARGE

 1
85661-12010

ACV40,GSV40..LHD

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

ACV40,GSV40

 2
Common parts
90105-06298
90159-50346
90189-05142
