ACV40L-AEMNKW (2009)

Toyota Camry

Production Jan 2009 - Aug 2011
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

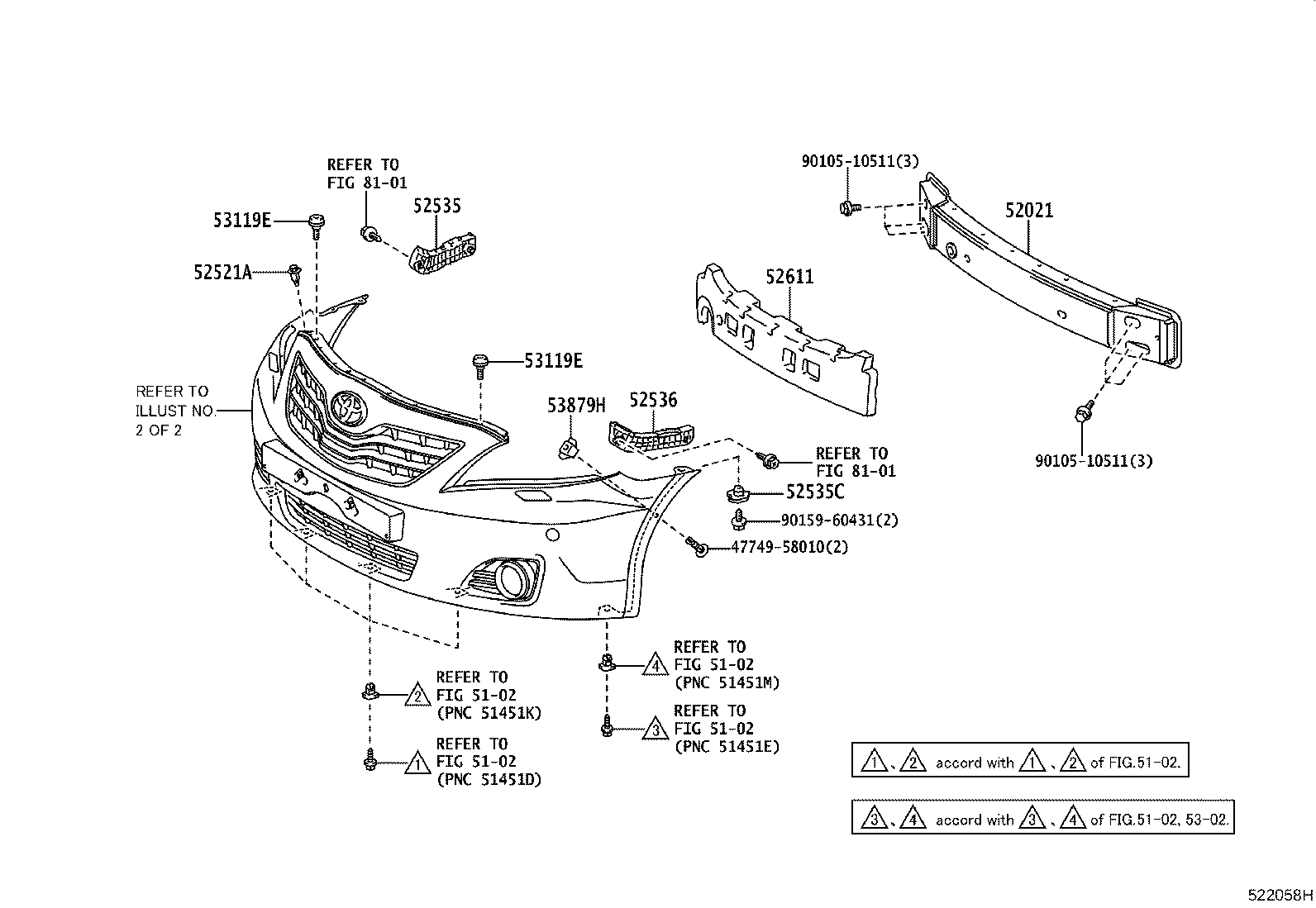

ILLUST NO. 1 OF 2(0901- )LE,XLE ; (0903- )COMF,PREM

Click highlighted areas on diagram

diagram 4774958010 5102 5102 5102 5102 52021 52521A 52535 52535C 52536 52611 53119E 53119E 53879H 8101 8101 9010510511 9010510511 9015960431
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-33140

ACV40,GSV40

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-08180

ACV40,GSV40

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33040

ACV40,GSV40

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

ACV40,GSV40

 2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33040

ACV40,GSV40

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33160

ACV40,GSV40

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ACV40,GSV40

 2
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ACV40,GSV40

 2
53879H - RETAINER, FRONT FENDER LINER
53879-58010

ACV40,GSV40

 2
Common parts
47749-58010
90105-10511
90159-60431
Linked diagrams
5102
8101

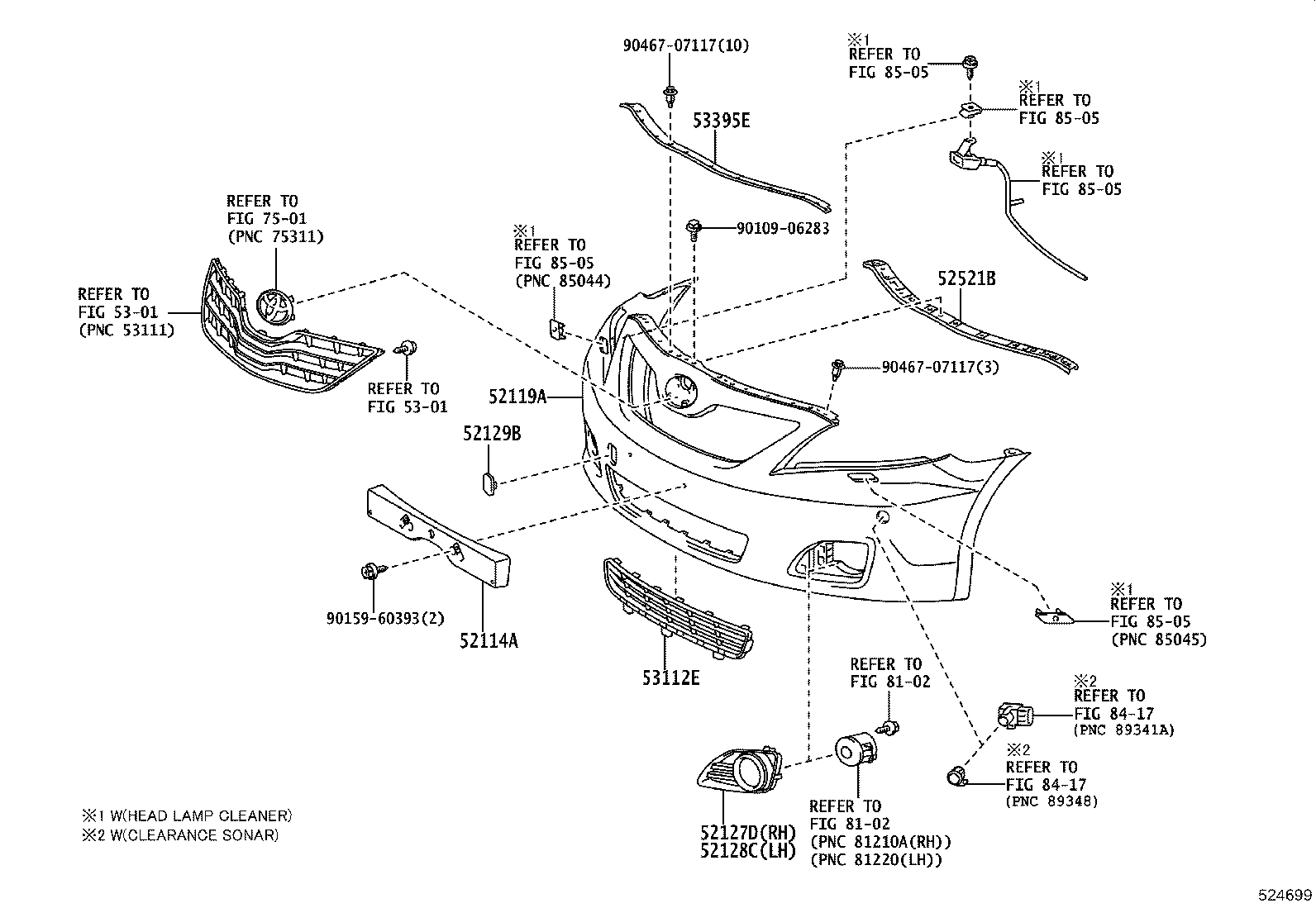

ILLUST NO. 2 OF 2(0901- )LE,XLE ; (0903- )COMF,PREM

Click highlighted areas on diagram

diagram 52114A 52119A 52127D 52128C 52129B 52521B 5301 5301 53112E 53395E 7501 8102 8102 8417 8417 8505 8505 8505 8505 8505 9010906283 9015960393 9046707117 9046707117
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-33160

ACV40,GSV40

 1
52119A - COVER, FRONT BUMPER
52119-33941

ACV40,GSV40..LE,XLE

PAINT REQ.

 1
52119-33970

ACV40..LHD..LE

PAINT REQ.,RUSSIA SPEC

 1
52119-33971

ACV40..LHD..LE

PAINT REQ.

 1
52119-33969

ACV40..LHD..LE

PAINT REQ.,HEAD LAMP CLEANER-WITH

 1
52119-33968

ACV40..LHD..LE

PAINT REQ.,RUSSIA SPEC&HEAD LAMP CLEANER-WITH

 1
52119-33942

ACV40,GSV40..LE,XLE

PAINT REQ.,HEAD LAMP CLEANER-WITH

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52030-33030

ACV40..LHD..LE

RUSSIA SPEC&HEAD LAMP CLEANER-WITH

 1
52127-33040

ACV40,GSV40..LE,XLE

 1
52030-33010

ACV40,GSV40..LE,XLE

 1
52030-33030

ACV40,GSV40..LHD..(LE,XLE)

RUSSIA SPEC

 1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-33050

ACV40,GSV40..LE,XLE

 1
52040-33030

ACV40,GSV40..LHD..(LE,XLE)

RUSSIA SPEC

 1
52040-33010

ACV40,GSV40..LE,XLE

 1
52040-33030

ACV40..LHD..LE

RUSSIA SPEC&HEAD LAMP CLEANER-WITH

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-33020E0

ACV40,GSV40..LE,XLE

BEIGE M. M.,4Q2

 1
52129-33020B0

ACV40,GSV40

SILVER ME.,1D4

 1
52129-33020C0

ACV40,GSV40..LE,XLE

BLACK,202

 1
52129-33020H0

ACV40,GSV40..LE,XLE

TURQUOISE M.M.,776

 1
52129-33020J0

ACV40,GSV40..LE,XLE

LT.BLUE ME.,8S4

 1
52129-33020A0

ACV40,GSV40..LE,XLE

SUPER WHITE 2,040

 1
52129-33020D0

ACV40,GSV40..LE,XLE

RED M.M.,3R3

 1
52129-33020B1

ACV40,GSV40..LE,XLE

GRAY ME.,1G3

 1
52129-33020J1

ACV40,GSV40..LE,XLE

DK.BLUE MC.,8T5

 1
52521B - RETAINER, FRONT BUMPER, UPPER
52521-33070

ACV40,GSV40..LE,XLE

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-33030

ACV40,GSV40..LE,XLE

NO PAINT REQ.

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-33010

ACV40,GSV40..LE,XLE

 1
Common parts
90109-06283
90159-60393
90467-07117
Linked diagrams
5301
7501
8102
8417
8505
