ACV40L-AEMNKW (2009)
Toyota Camry
Production
Jan 2009
-
Aug 2011
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0901- )2AZFE,2GRFE..LE,XLE ; (0903- )2AZFE,2GRFE..COMF,PREM

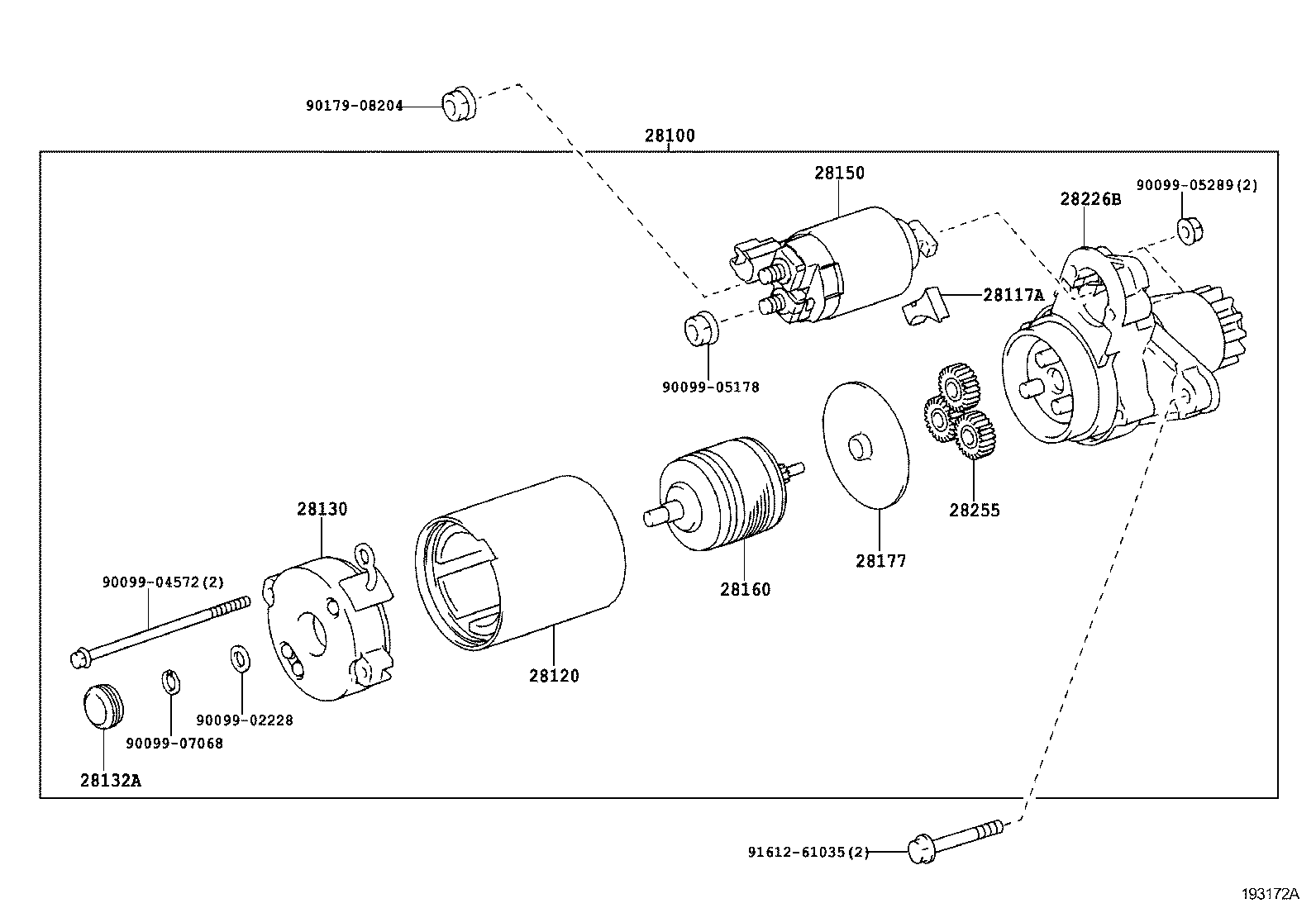

Click highlighted areas on diagram
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-20020 |
2AZFE,2GRFE..ACV40,GSV40 12V 1.7KW |
1 | ||
| 28100-28071 |
2AZFE,2GRFE..ACV40,GSV40 12V 1.7KW |
1 | ||
| 28100-28070 |
2AZFE,2GRFE..ACV40,GSV40..LE,XLE 12V 1.7KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-28040 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-20020 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-40090 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-28040 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-28051 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
2AZFE,2GRFE..ACV40,GSV40 |
3 | ||
| Common parts | ||||
| 90099-02228 | ||||
| 90099-04572 | ||||
| 90099-05178 | ||||
| 90099-05289 | ||||
| 90099-07068 | ||||
| 90179-08204 | ||||
| 91612-61035 | ||||
