ACV40L-AEANKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0601- )LHD

Click highlighted areas on diagram

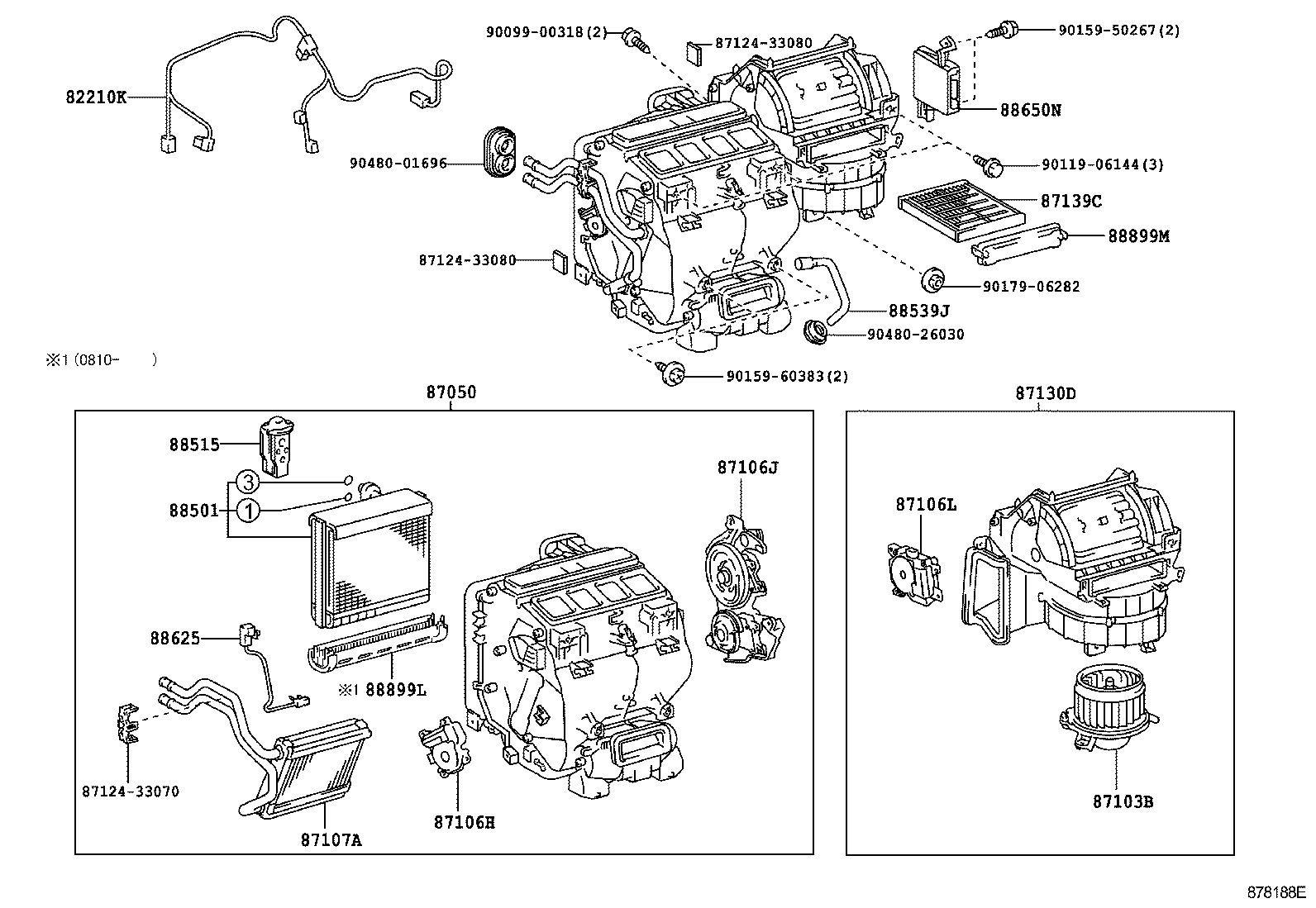

diagram 82210K 87050 87103B 87106H 87106J 87106L 87107A 8712433070 8712433080 8712433080 87130D 87139C 88501 88515 88539J 88625 88650N 88899L 88899M 9009900318 9011906144 9015950267 9015960383 9017906282 9048001696 9048026030
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-33020

ACV40,GSV40..LHD

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-33580

ACV40..LHD..5F

 1
87050-33581

ACV40..LHD..5F

 1
87050-33541

ACV40,GSV40..LHD..ATM

 1
87050-33540

ACV40,GSV40..LHD..ATM

 1
87050-33542

ACV40,GSV40..LHD..ATM

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-33090

ACV40,GSV40..LHD..ATM

 1
87103-33090

ACV40..5FC..COMF;ACV40,GSV40..LHD..(5F,6FC)..(COMF,LE,PREM)

 1
87103-33090

ACV40,GSV40..LHD..ATM..(LE,XLE)

 2
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-33260

ACV40,GSV40

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-33250

ACV40..5F

 1
87106-33250

ACV40,GSV40..ATM

 1
87106L - SERVO SUB-ASSY, DAMPER
87106-33270

ACV40,GSV40..LHD..ATM..(LE,XLE)

 2
87106-33270

ACV40,GSV40..LHD..ATM

 1
87106-33270

ACV40..5FC..COMF;ACV40,GSV40..LHD..(5F,6FC)..(COMF,LE,PREM)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-33120

ACV40,GSV40

 1
87130D - BLOWER ASSY
87130-48200

ACV40,GSV40..LHD

 1
87130-33200

ACV40,GSV40..LHD

 1
87139C - FILTER, CLEAN AIR
87139-30070

ACV40,GSV40

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-33120

ACV40,GSV40..LHD

 1
88501-33190

ACV40,GSV40..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-33020

ACV40,GSV40

 1
88539J - HOSE, DRAIN COOLER
88539-33090

ACV40,GSV40

 1
88625 - THERMISTOR, COOLER, NO.1
88625-33190

ACV40,GSV40

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-33690

ACV40

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-33040

ACV40,GSV40

 1
Common parts
87124-33070
87124-33080
90099-00318
90119-06144
90159-50267
90159-60383
90179-06282
90480-01696
90480-26030
