ACV40L-AEANKW (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )ACV40..LHD

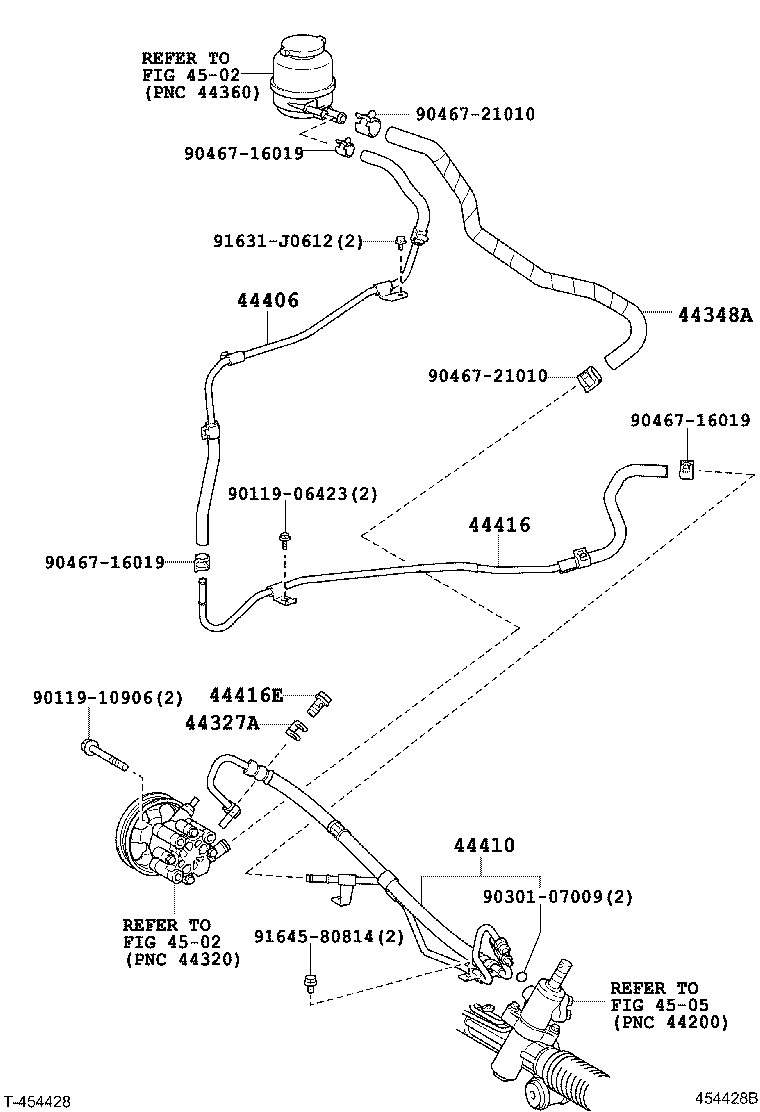

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44416 44416E 4502 4502 4505 9011906423 9011910906 9030107009 9046716019 9046716019 9046716019 9046721010 9046721010 91631J0612 9164580814
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACV40,GSV40

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-33240

ACV40..LHD

 1
44406 - TUBE SUB-ASSY, RETURN
44406-33120

ACV40,GSV40

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-33180

ACV40..LHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-33170

ACV40..LHD

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603

ACV40,GSV40

 1
Common parts
90119-06423
90119-10906
90301-07009
90467-16019
90467-21010
91631-J0612
91645-80814
Linked diagrams
4502
4505
