Toyota Camry ACV31 OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

ACV31R-AEPNKW (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 1AZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

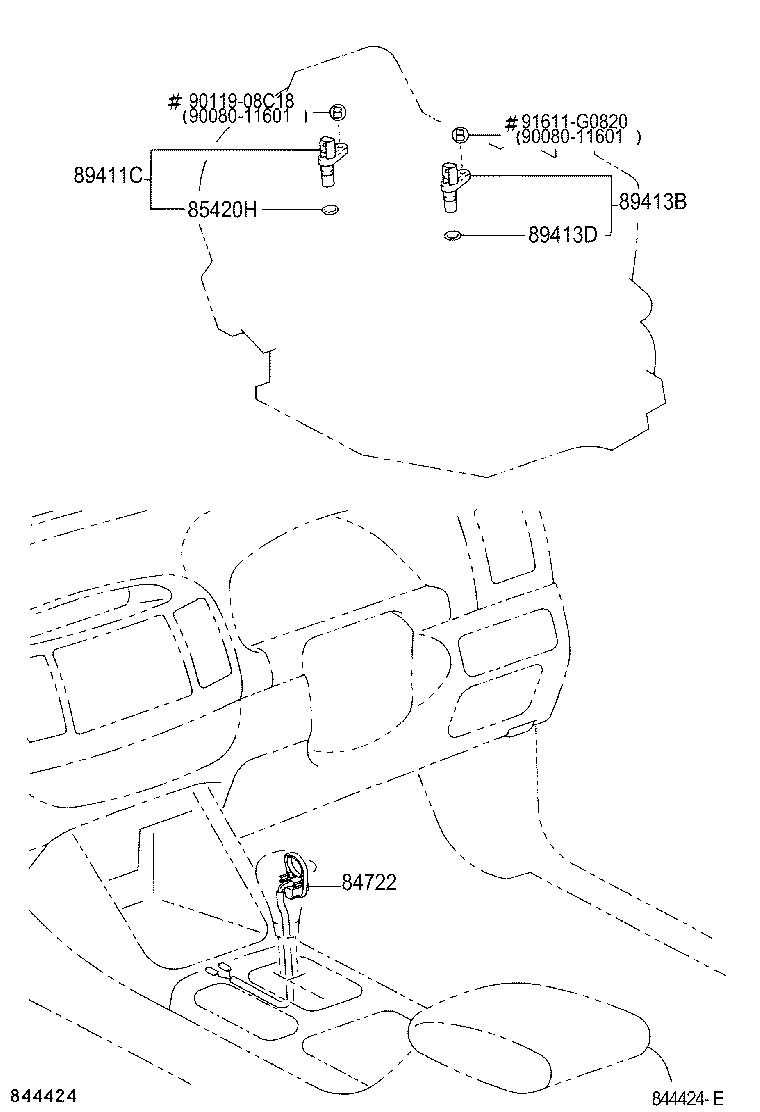

Click highlighted areas on diagram

Part #	Description	Period	Qty
84722 - SWITCH, TRANSMISSION CONTROL
84722-33110B1	ACV3#,MCV30..RHD..ATM DK.GRAY,TRIM1#	09/2001 - 06/2004	1
84722-33110E0	ACV3#,MCV30..RHD..ATM SANDAL WOOD,TRIM4#	09/2001 - 06/2004	1
84722-33110E0	ACV3#,MCV30..RHD..ATM SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
84722-33110B1	ACV3#,MCV30..RHD..ATM DK.GRAY,TRIM9#	06/2004 - 12/2999	1
85420H - RING, O(FOR SPEED SENSOR)
90301-11008	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
90301-11008	ACV3#,MCV30..ATM	12/2001 - 06/2004	1
89411C - SENSOR, SPEED
89413-24010	ACV3#,MCV30..ATM AISIN,(J)	08/2001 - 06/2004	1
89413-24010	ACV3#,MCV30..ATM TOYOTA	08/2001 - 08/2003	1
89413-24010	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
89413-08020	ACV3#,MCV30..ATM AISIN,(L)	12/2002 - 06/2004	1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-24010	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
89413-24010	ACV3#,MCV30..ATM	08/2001 - 12/2001	1
89413-08020	ACV3#,MCV30..ATM AISIN,(L)	12/2002 - 06/2004	1
89413-24010	ACV3#,MCV30..ATM AISIN,(J)	12/2001 - 06/2004	1
89413-24010	ACV3#,MCV30..ATM TOYOTA	12/2001 - 08/2003	1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	ACV3#,MCV30..ATM	12/2001 - 06/2004	1
90301-11008	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
Common parts
90080-11601
90119-08C18
91611-G0820

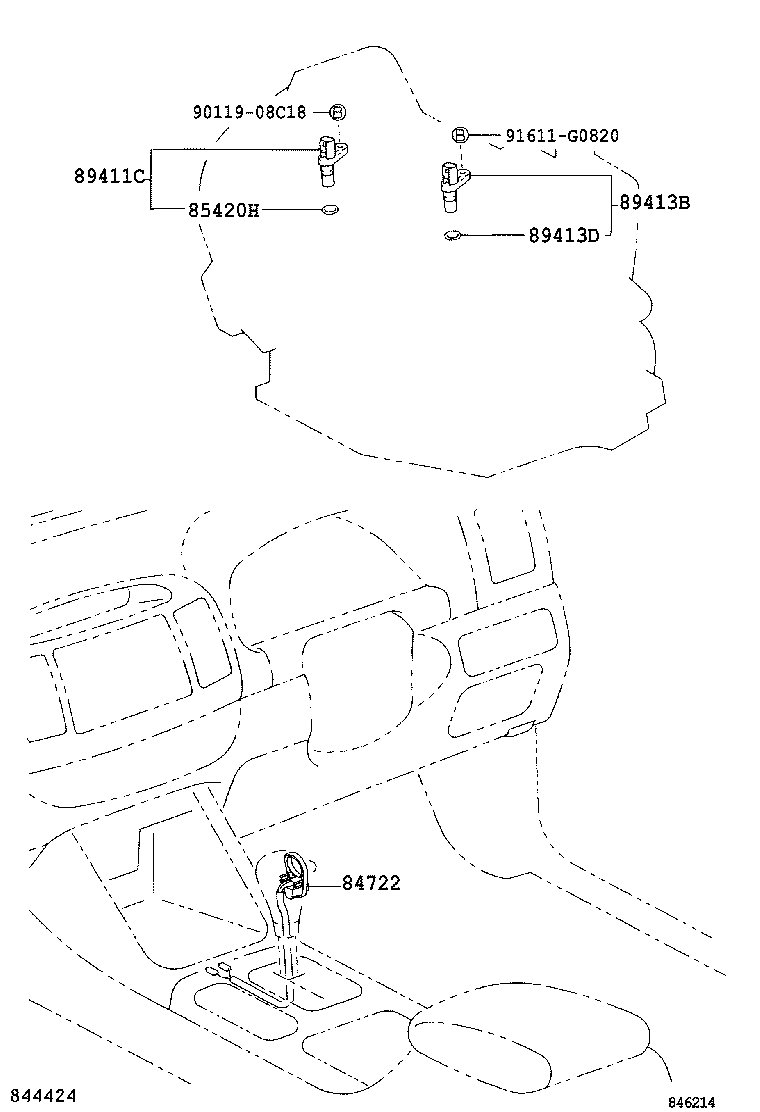

Click highlighted areas on diagram

Part #	Description	Period	Qty
84722 - SWITCH, TRANSMISSION CONTROL
84722-33110B1	ACV3#,MCV30..RHD..ATM DK.GRAY,TRIM1#	09/2001 - 06/2004	1
84722-33110E0	ACV3#,MCV30..RHD..ATM SANDAL WOOD,TRIM4#	09/2001 - 06/2004	1
84722-33110E0	ACV3#,MCV30..RHD..ATM SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
84722-33110B1	ACV3#,MCV30..RHD..ATM DK.GRAY,TRIM9#	06/2004 - 12/2999	1
85420H - RING, O(FOR SPEED SENSOR)
90301-11008	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
90301-11008	ACV3#,MCV30..ATM	12/2001 - 06/2004	1
89411C - SENSOR, SPEED
89413-24010	ACV3#,MCV30..ATM AISIN,(J)	08/2001 - 06/2004	1
89413-24010	ACV3#,MCV30..ATM TOYOTA	08/2001 - 08/2003	1
89413-24010	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
89413-08020	ACV3#,MCV30..ATM AISIN,(L)	12/2002 - 06/2004	1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-24010	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
89413-24010	ACV3#,MCV30..ATM	08/2001 - 12/2001	1
89413-08020	ACV3#,MCV30..ATM AISIN,(L)	12/2002 - 06/2004	1
89413-24010	ACV3#,MCV30..ATM AISIN,(J)	12/2001 - 06/2004	1
89413-24010	ACV3#,MCV30..ATM TOYOTA	12/2001 - 08/2003	1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008	ACV3#,MCV30..ATM	12/2001 - 06/2004	1
90301-11008	ACV3#,MCV30..ATM	06/2004 - 12/2999	1
Common parts
90119-08C18
91611-G0820
