ACV31L-AEPNKW (2001)

Toyota Camry

Production Aug 2001 - Jan 2006
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0406)ACV3#..ATM ; (0108-0406)MCV30..RHD ;(0406- )

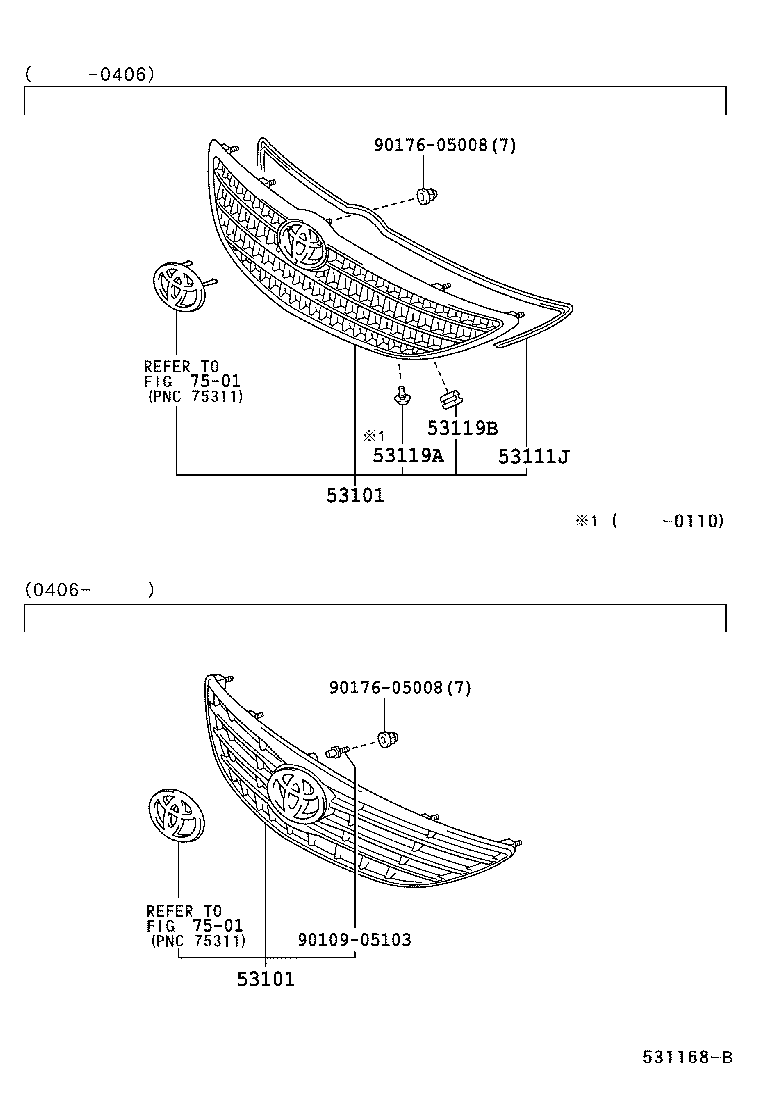

Click highlighted areas on diagram

(0108-0406)TYPE B

diagram 53101 53101 53111J 53119A 53119B 7501 7501 9010905103 9017605008 9017605008
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-33110

ACV3#..ATM;MCV30..RHD

PLATED,TYPE B:REFER TO ILLUSTRATION

 1
53101-33150

ACV3#,MCV30

PLATED

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-33110

ACV3#..ATM;MCV30..RHD

PLATED,TYPE B:REFER TO ILLUSTRATION

 1
53101-33150

ACV3#,MCV30

PLATED

 1
53111J - PROTECTOR, RADIATOR GRILLE
53119-33070

ACV3#..ATM;MCV30..RHD

 1
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-30140

ACV3#..ATM;MCV30..RHD

 2
53119B - PROTECTOR, RADIATOR GRILLE
53119-33080

ACV3#..ATM;MCV30..RHD

 2
Common parts
90109-05103
90176-05008
Linked diagrams
7501
