ACV31L-AEPNKW (2001)
Toyota Camry
(0108- )ACV3#..ATM
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481X - GEAR, SPEEDOMETER DRIVE | ||||
| 33481-28060 |
ACV3#..ATM |
1 | ||
| 33481-28060 |
ACV3#..ATM |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-44010 |
ACV3#..ATM |
1 | ||
| 35105-44011 |
ACV3#..ATM |
1 | ||
| 35105-44011 |
ACV3#..ATM |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-28020 |
ACV3#..ATM |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-32150 |
ACV31 |
1 | ||
| 41211-32150 |
ACV31 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32160 |
ACV31 |
1 | ||
| 41221-32160 |
ACV31 |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
ACV3#..ATM |
10 | ||
| 90105-12303 |
ACV3#..ATM |
10 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-33070 |
ACV3#..ATM |
1 | ||
| 41301-33110 |
ACV3#..ATM |
1 | ||
| 41301-33110 |
ACV3#..ATM |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-68008 |
ACV3#..ATM T=2.00,MARK 2 |
1 | ||
| 90564-68006 |
ACV3#..ATM T=1.90,MARK 0 |
1 | ||
| 90564-68007 |
ACV3#..ATM T=1.95,MARK 1 |
1 | ||
| 90564-68011 |
ACV3#..ATM T=2.15,MARK 5 |
1 | ||
| 90564-68013 |
ACV3#..ATM T=2.25,MARK 7 |
1 | ||
| 90564-68018 |
ACV3#..ATM T=2.50,MARK C |
1 | ||
| 90564-68012 |
ACV3#..ATM T=2.20,MARK 6 |
1 | ||
| 90564-68020 |
ACV3#..ATM T=2.60,MARK E |
1 | ||
| 90564-68010 |
ACV3#..ATM T=2.10,MARK 4 |
1 | ||
| 90564-68009 |
ACV3#..ATM T=2.05,MARK 3 |
1 | ||
| 90564-68023 |
ACV3#..ATM T=2.75,MARK H |
1 | ||
| 90564-68015 |
ACV3#..ATM T=2.35,MARK 9 |
1 | ||
| 90564-68017 |
ACV3#..ATM T=2.45,MARK B |
1 | ||
| 90564-68014 |
ACV3#..ATM T=2.30,MARK 8 |
1 | ||
| 90564-68016 |
ACV3#..ATM T=2.40,MARK A |
1 | ||
| 90564-68019 |
ACV3#..ATM T=2.55,MARK D |
1 | ||
| 90564-68024 |
ACV3#..ATM T=2.80,MARK J |
1 | ||
| 90564-68021 |
ACV3#..ATM T=2.65,MARK F |
1 | ||
| 90564-68022 |
ACV3#..ATM T=2.70,MARK G |
1 | ||
| 90564-68010 |
ACV3#..ATM T=2.10,MARK 4 |
1 | ||
| 90564-68007 |
ACV3#..ATM T=1.95,MARK 1 |
1 | ||
| 90564-68012 |
ACV3#..ATM T=2.20,MARK 6 |
1 | ||
| 90564-68016 |
ACV3#..ATM T=2.40,MARK A |
1 | ||
| 90564-68009 |
ACV3#..ATM T=2.05,MARK 3 |
1 | ||
| 90564-68011 |
ACV3#..ATM T=2.15,MARK 5 |
1 | ||
| 90564-68008 |
ACV3#..ATM T=2.00,MARK 2 |
1 | ||
| 90564-68015 |
ACV3#..ATM T=2.35,MARK 9 |
1 | ||
| 90564-68017 |
ACV3#..ATM T=2.45,MARK B |
1 | ||
| 90564-68021 |
ACV3#..ATM T=2.65,MARK F |
1 | ||
| 90564-68013 |
ACV3#..ATM T=2.25,MARK 7 |
1 | ||
| 90564-68019 |
ACV3#..ATM T=2.55,MARK D |
1 | ||
| 90564-68006 |
ACV3#..ATM T=1.90,MARK 0 |
1 | ||
| 90564-68024 |
ACV3#..ATM T=2.80,MARK J |
1 | ||
| 90564-68023 |
ACV3#..ATM T=2.75,MARK H |
1 | ||
| 90564-68022 |
ACV3#..ATM T=2.70,MARK G |
1 | ||
| 90564-68018 |
ACV3#..ATM T=2.50,MARK C |
1 | ||
| 90564-68014 |
ACV3#..ATM T=2.30,MARK 8 |
1 | ||
| 90564-68020 |
ACV3#..ATM T=2.60,MARK E |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50084 |
ACV3#..ATM |
1 | ||
| 90366-50084 |
ACV3#..ATM |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50078 |
ACV3#..ATM |
1 | ||
| 90366-50078 |
ACV3#..ATM |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-33030 |
ACV3#..ATM |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-33030 |
ACV3#..ATM |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-14041 |
ACV3#..ATM |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-14041 |
ACV3#..ATM |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ACV3#,MCV30 |
1 | ||
| 90250-06058 |
ACV3#,MCV30 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33040 |
ACV3#..ATM |
1 | ||
| 41342-33040 |
ACV3#..ATM |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-28010 |
ACV3#..ATM |
2 | ||
| 41351-28010 |
ACV3#..ATM |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-28010 |
ACV3#..ATM |
2 | ||
| 41351-28010 |
ACV3#..ATM |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
ACV3# T=1.0,MARK 1 |
2 | ||
| 41361-28250 |
ACV3# T=1.2,MARK 3 |
2 | ||
| 41361-28250 |
ACV3# T=1.2,MARK 3 |
2 | ||
| 41361-28260 |
ACV3# T=1.3,MARK 4 |
2 | ||
| 41361-28240 |
ACV3# T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
ACV3# T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
ACV3# T=1.3,MARK 4 |
2 | ||
| 41361-28240 |
ACV3# T=1.1,MARK 2 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28230 |
ACV3# T=1.0,MARK 1 |
2 | ||
| 41361-28250 |
ACV3# T=1.2,MARK 3 |
2 | ||
| 41361-28250 |
ACV3# T=1.2,MARK 3 |
2 | ||
| 41361-28260 |
ACV3# T=1.3,MARK 4 |
2 | ||
| 41361-28240 |
ACV3# T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
ACV3# T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
ACV3# T=1.3,MARK 4 |
2 | ||
| 41361-28240 |
ACV3# T=1.1,MARK 2 |
2 | ||

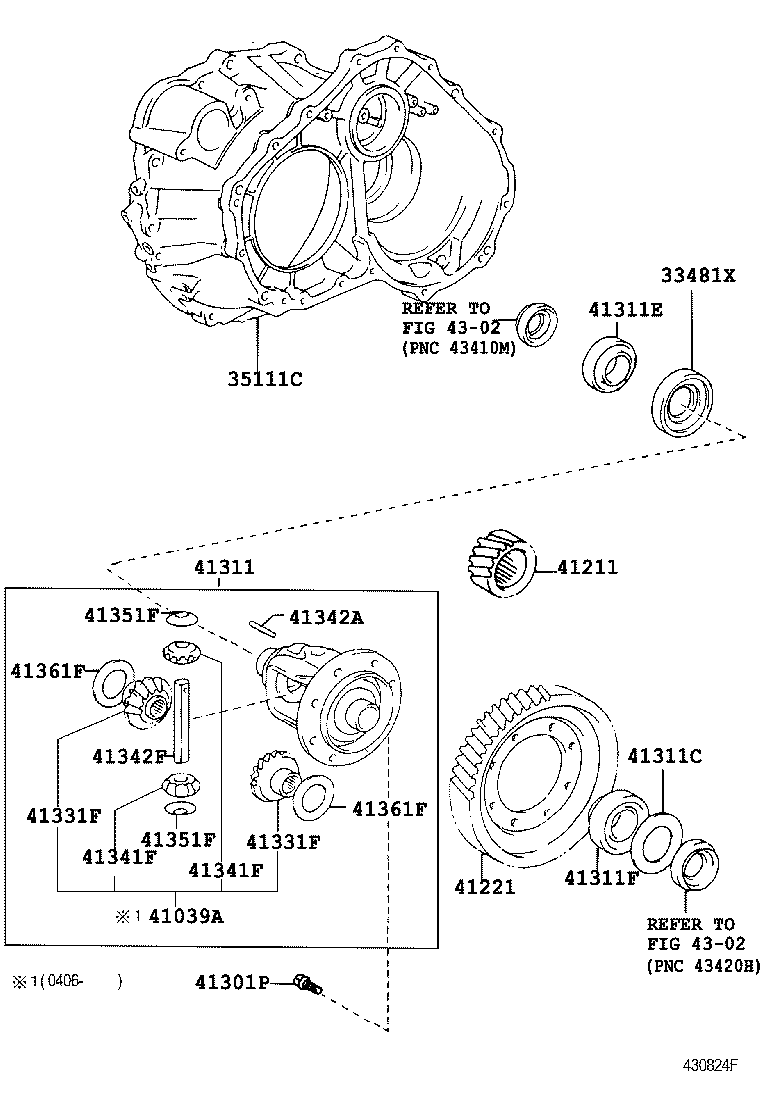

| Linked diagrams | ||||
| 4302 | ||||
