Toyota Camry ACV30 WIRING & CLAMP

ACV30R-AEMNKW (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

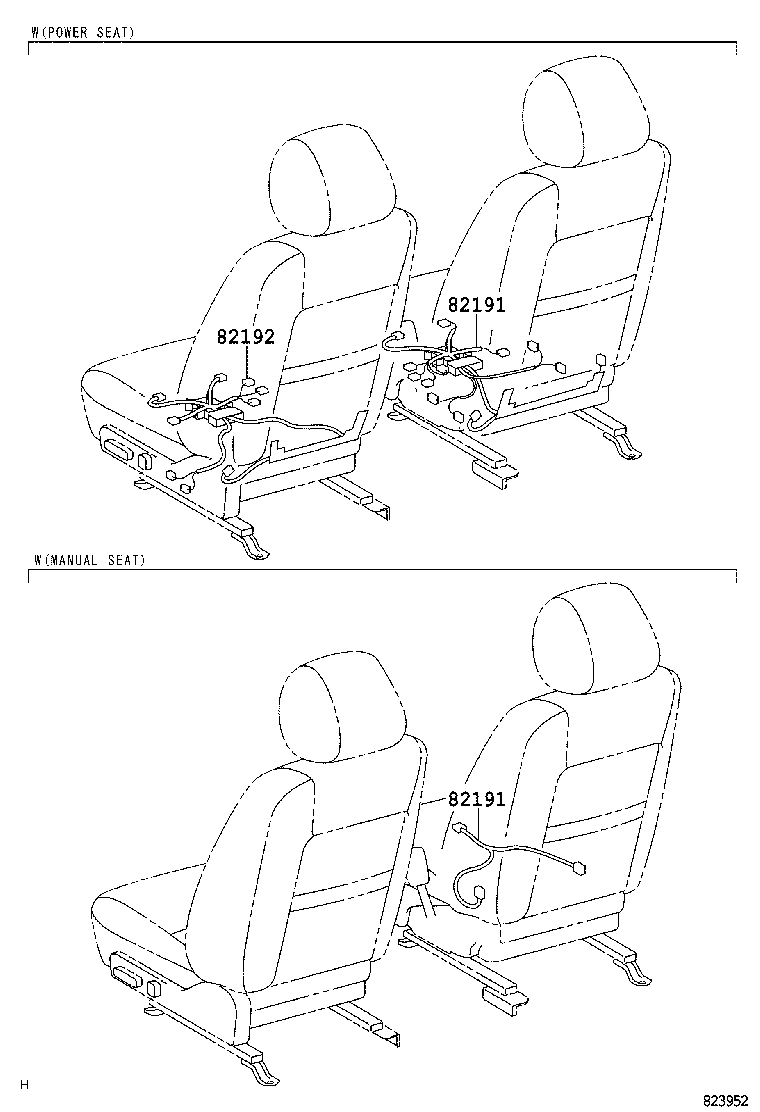

ILLUST NO. 5 OF 8(0108-0406)

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-33180	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-33080	ACV3#,MCV30..RHD W(POWER SEAT)	09/2001 - 06/2004	1
82191-33050	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82191-33210	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE)	06/2004 - 12/2999	1
82191-33230	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82191 - WIRE, FRONT SEAT, RH
82191-33180	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-33080	ACV3#,MCV30..RHD W(POWER SEAT)	09/2001 - 06/2004	1
82191-33050	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82191-33210	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE)	06/2004 - 12/2999	1
82191-33230	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82192 - WIRE, FRONT SEAT, LH
82192-33030	ACV3#,MCV30..RHD W(POWER SEAT & SEAT HEATER)	09/2001 - 06/2004	1
82192-33040	ACV3#,MCV30..RHD W(POWER SEAT)	09/2001 - 06/2004	1
82192-33170	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE)	06/2004 - 12/2999	1
82192-33180	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82192 - WIRE, FRONT SEAT, LH
82192-33030	ACV3#,MCV30..RHD W(POWER SEAT & SEAT HEATER)	09/2001 - 06/2004	1
82192-33040	ACV3#,MCV30..RHD W(POWER SEAT)	09/2001 - 06/2004	1
82192-33170	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE)	06/2004 - 12/2999	1
82192-33180	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE & SEAT HEATER)	06/2004 - 12/2999	1

ILLUST NO. 7 OF 8(0108- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07427	ACV3#	10/2005 - 12/2999	1
90980-07410	ACV3#	06/2004 - 09/2005	1
90980-07410	ACV3#	08/2001 - 06/2004	1
82001 - CABLE, BOND, NO.1
90980-07427	ACV3#	10/2005 - 12/2999	1
90980-07410	ACV3#	06/2004 - 09/2005	1
90980-07410	ACV3#	08/2001 - 06/2004	1
82001C - CABLE, BOND, NO.2
90980-07400	ACV3#,MCV30	06/2004 - 12/2999	1
90980-07400	ACV3#,MCV30	08/2001 - 06/2004	1
82001C - CABLE, BOND, NO.2
90980-07400	ACV3#,MCV30	06/2004 - 12/2999	1
90980-07400	ACV3#,MCV30	08/2001 - 06/2004	1
Common parts
82711-10070
90119-06915
90119-T0019
91511-60612
91621-J0612

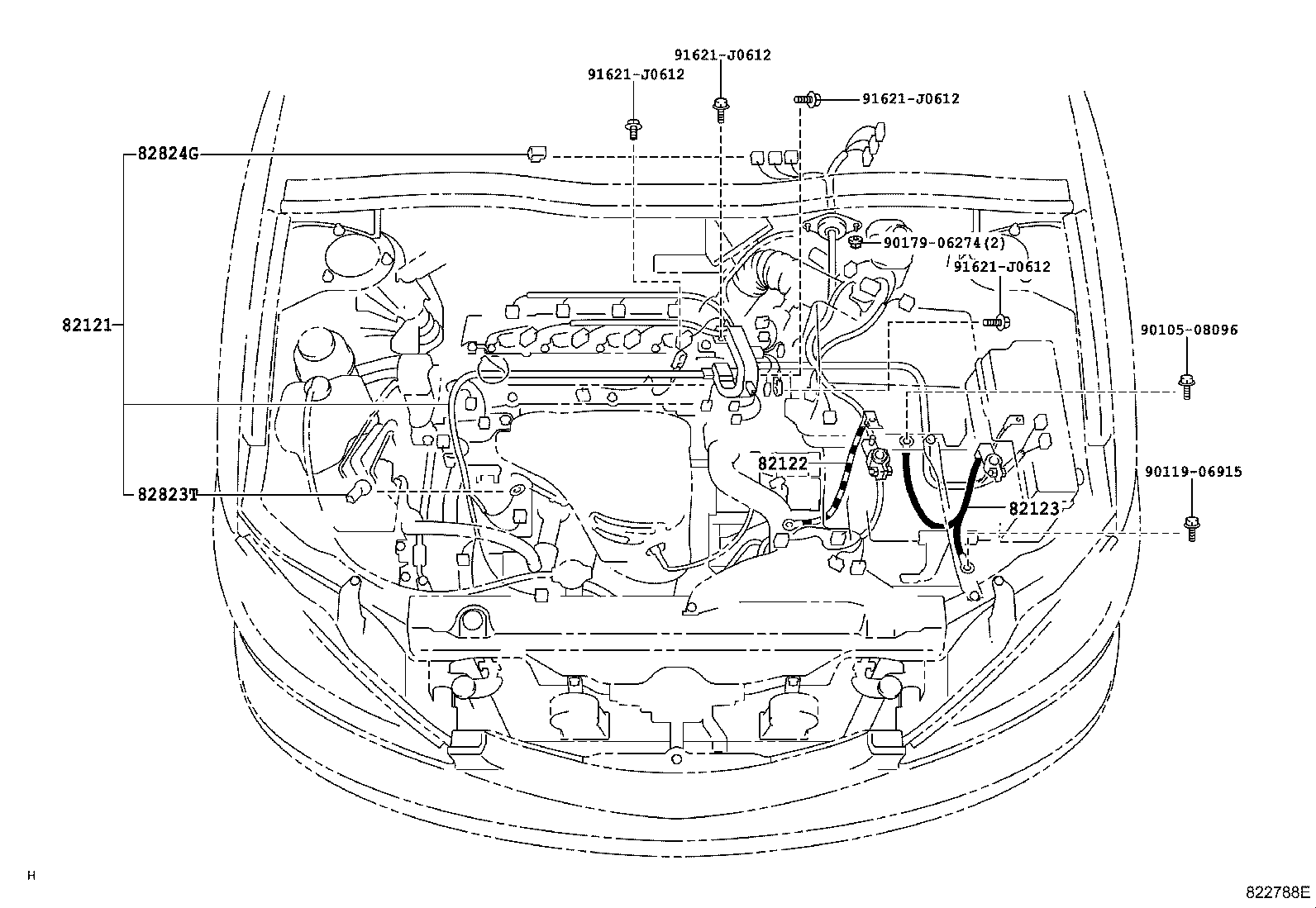

ILLUST NO. 2 OF 8(0109- )ACV3#..RHD

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-3T811	ACV30..RHD..MTM	08/2002 - 07/2003	1
82121-3T810	ACV30..RHD..MTM	09/2001 - 08/2002	1
82121-3T812	ACV30..RHD..MTM	06/2004 - 12/2999	1
82121-3T812	ACV30..RHD..MTM	07/2003 - 06/2004	1
82122 - WIRE, ENGINE, NO.2
82122-33050	ACV3#,MCV30	08/2001 - 06/2004	1
82122-33050	ACV3#,MCV30	06/2004 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-33050	ACV30..MTM	08/2001 - 06/2004	1
82123-33050	ACV30..MTM	06/2004 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22080	ACV3#,MCV30	06/2004 - 01/2006	1
82823-22080	ACV3#,MCV30	08/2001 - 06/2004	1
82824G - CONNECTOR, WIRING HARNESS
82824-50110	ACV3#,MCV30	08/2001 - 06/2004	1
82824-50110	ACV3#,MCV30	06/2004 - 12/2999	1
Common parts
90105-08096
90119-06915
90179-06274
91621-J0612

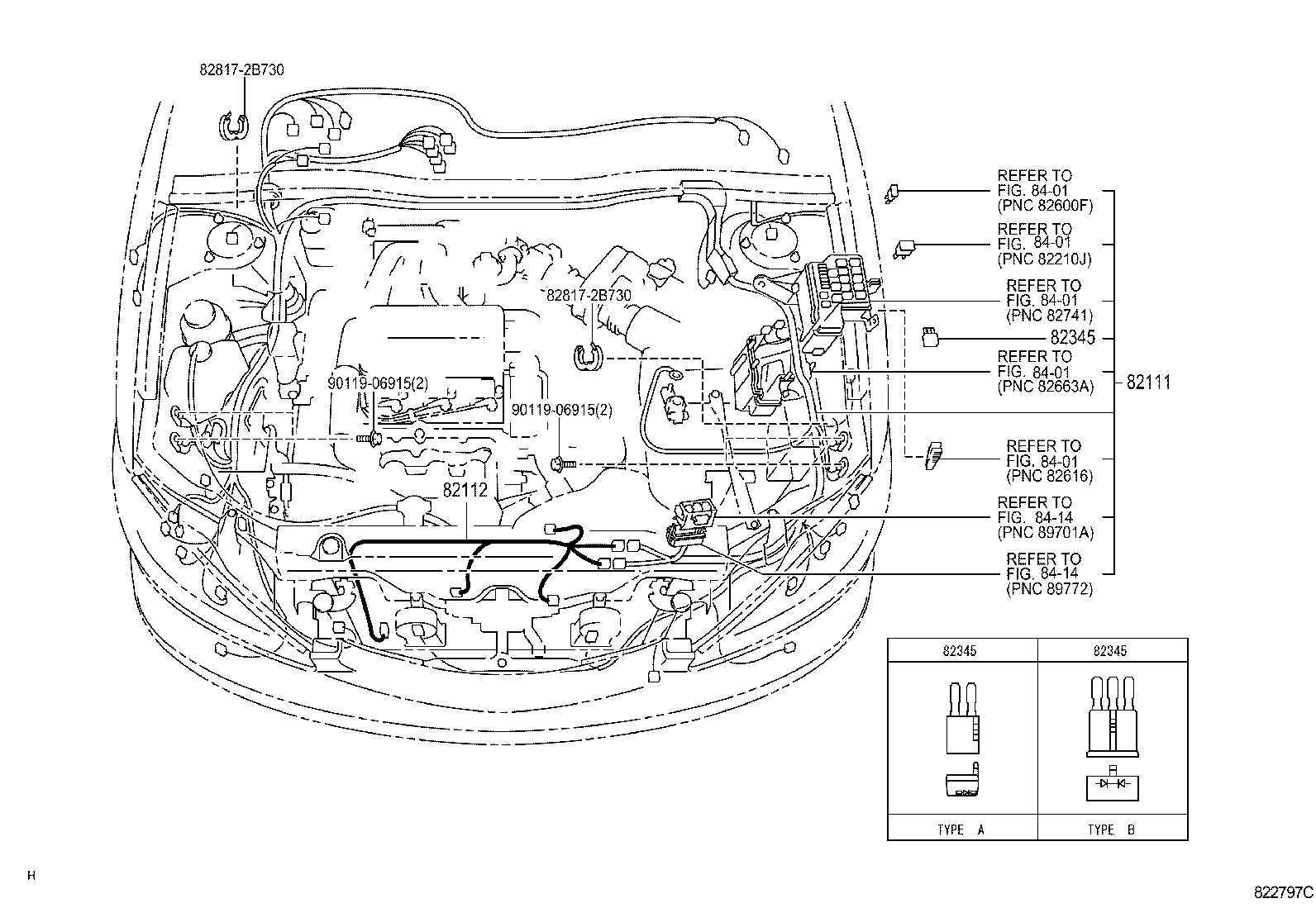

ILLUST NO. 1 OF 8(0109- )RHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-3Y080	ACV30..RHD	09/2001 - 07/2003	1
82111-3Y081	ACV30..RHD	07/2003 - 06/2004	1
82111-33C40	ACV30..RHD	06/2004 - 12/2999	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-33020	ACV3#	08/2001 - 06/2004	1
82112-33020	ACV3#	06/2004 - 12/2999	1
82345 - DIODE
82345-12050	ACV3# TYPE A:REFER TO ILLUSTRATION	08/2001 - 06/2004	1
82345-32020	ACV3#,MCV30 TYPE B:REFER TO ILLUSTRATION	08/2001 - 06/2004	1
82345-32020	ACV3# TYPE B:REFER ILLUST.	06/2004 - 12/2999	1
82345-12050	ACV3# TYPE A:REFER ILLUST.	06/2004 - 12/2999	1
Common parts
82817-2B730
90119-06915
Linked diagrams
8401
8414

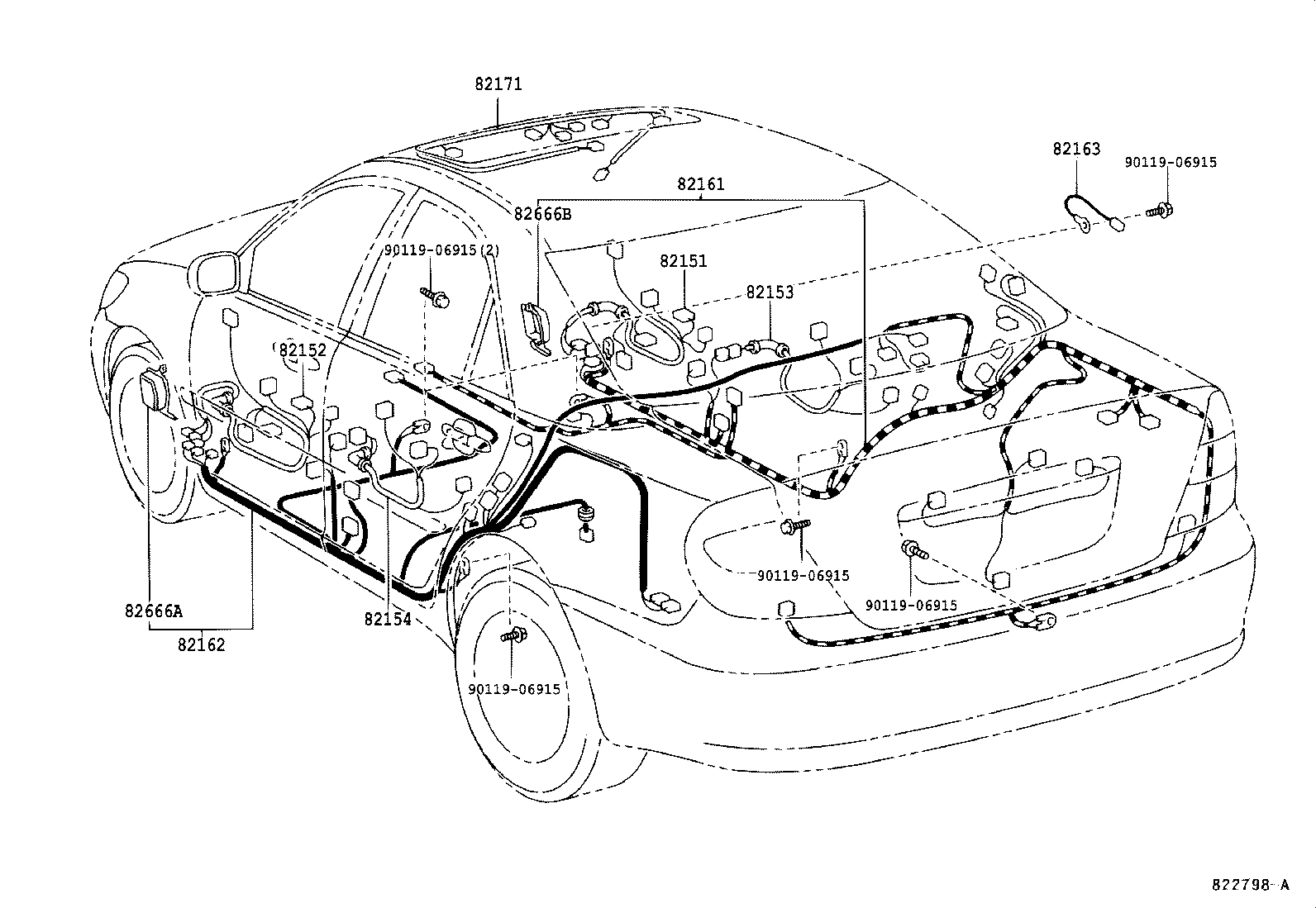

ILLUST NO. 4 OF 8(0109- )RHD

Click highlighted areas on diagram

DOOR,ROOF,FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-3T100	ACV30,MCV30..RHD W(DOUBLE-LOCK)	09/2001 - 06/2004	1
82151-3T080	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82151-3T080	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82152 - WIRE, FRONT DOOR, LH
82152-3T210	ACV30,MCV30..RHD W(DOUBLE-LOCK)	09/2001 - 06/2004	1
82152-3T190	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82152-3T190	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-33210	ACV3#,MCV30	06/2004 - 12/2999	1
82153-33210	ACV3#,MCV30	08/2001 - 06/2004	1
82153-33220	ACV30,MCV30..RHD W(DOUBLE-LOCK)	09/2001 - 06/2004	1
82154 - WIRE, REAR DOOR, NO.2
82154-33150	ACV30,MCV30..RHD W(DOUBLE-LOCK)	09/2001 - 06/2004	1
82154-33100	ACV3#,MCV30	06/2004 - 12/2999	1
82154-33100	ACV3#,MCV30	08/2001 - 06/2004	1
82161 - WIRE, FLOOR
82161-3Y880	ACV30,MCV30..RHD	09/2001 - 06/2004	1
82161-3Y890	ACV30,MCV30..RHD W(SRS AIR BAG)	09/2001 - 06/2004	1
82161-33A50	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE & SRS CURTAIN SHIELD AIR BAG)	06/2004 - 12/2999	1
82161-33A30	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE)	06/2004 - 12/2999	1
82161-33C80	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82161-33C70	ACV3#,MCV30..RHD W(SRS CURTAIN SHIELD AIR BAG)	06/2004 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-3Y311	ACV3#,MCV30..RHD W(SRS AIR BAG)	07/2003 - 06/2004	1
82162-3Y301	ACV3#,MCV30..RHD	07/2003 - 06/2004	1
82162-3Y300	ACV3#,MCV30..RHD	09/2001 - 07/2003	1
82162-3Y310	ACV3#,MCV30..RHD W(SRS AIR BAG)	09/2001 - 07/2003	1
82162-33A30	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE & SRS CURTAIN SHIELD AIR BAG)	06/2004 - 12/2999	1
82162-33B70	ACV3#,MCV30..RHD W(SRS CURTAIN SHIELD AIR BAG)	06/2004 - 12/2999	1
82162-33B80	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82162-33A20	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE)	06/2004 - 12/2999	1
82163 - WIRE, FLOOR, NO.3
82163-33070	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82163-33070	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82171 - WIRE, ROOF, NO.1
82171-33850	ACV3#,MCV30..RHD W(AUTO DAY & NIGHT MIRROR & TWIN MOON ROOF)	09/2001 - 07/2003	1
82171-33790	ACV3#,MCV30..RHD W(TWIN MOON ROOF)	09/2001 - 06/2004	1
82171-33780	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82171-33851	ACV3#,MCV30..RHD W(AUTO DAY & NIGHT MIRROR & TWIN MOON ROOF)	07/2003 - 06/2004	1
82171-33831	ACV3#,MCV30..RHD W(AUTO DAY & NIGHT MIRROR)	07/2003 - 06/2004	1
82171-33830	ACV3#,MCV30..RHD W(AUTO DAY & NIGHT MIRROR)	09/2001 - 07/2003	1
82171-33831	ACV3#,MCV30..RHD W(EC MIRROR)	06/2004 - 12/2999	1
82171-33790	ACV3#,MCV30..RHD W(MOON ROOF)	06/2004 - 12/2999	1
82171-33851	ACV3#,MCV30..RHD W(EC MIRROR & MOON ROOF)	06/2004 - 12/2999	1
82171-33780	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82666A - HOLDER, CONNECTOR NO.2
82666-33250	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82666-33250	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-33260	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82666-33260	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
Common parts
90119-06915

ILLUST NO. 6 OF 8(0108- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-16790
82711-1E260
82711-2A380
82711-30370
82711-33130
82711-33550
82711-3F040
82711-50870
82715-33420
82715-33490
82817-33690
91621-J0612

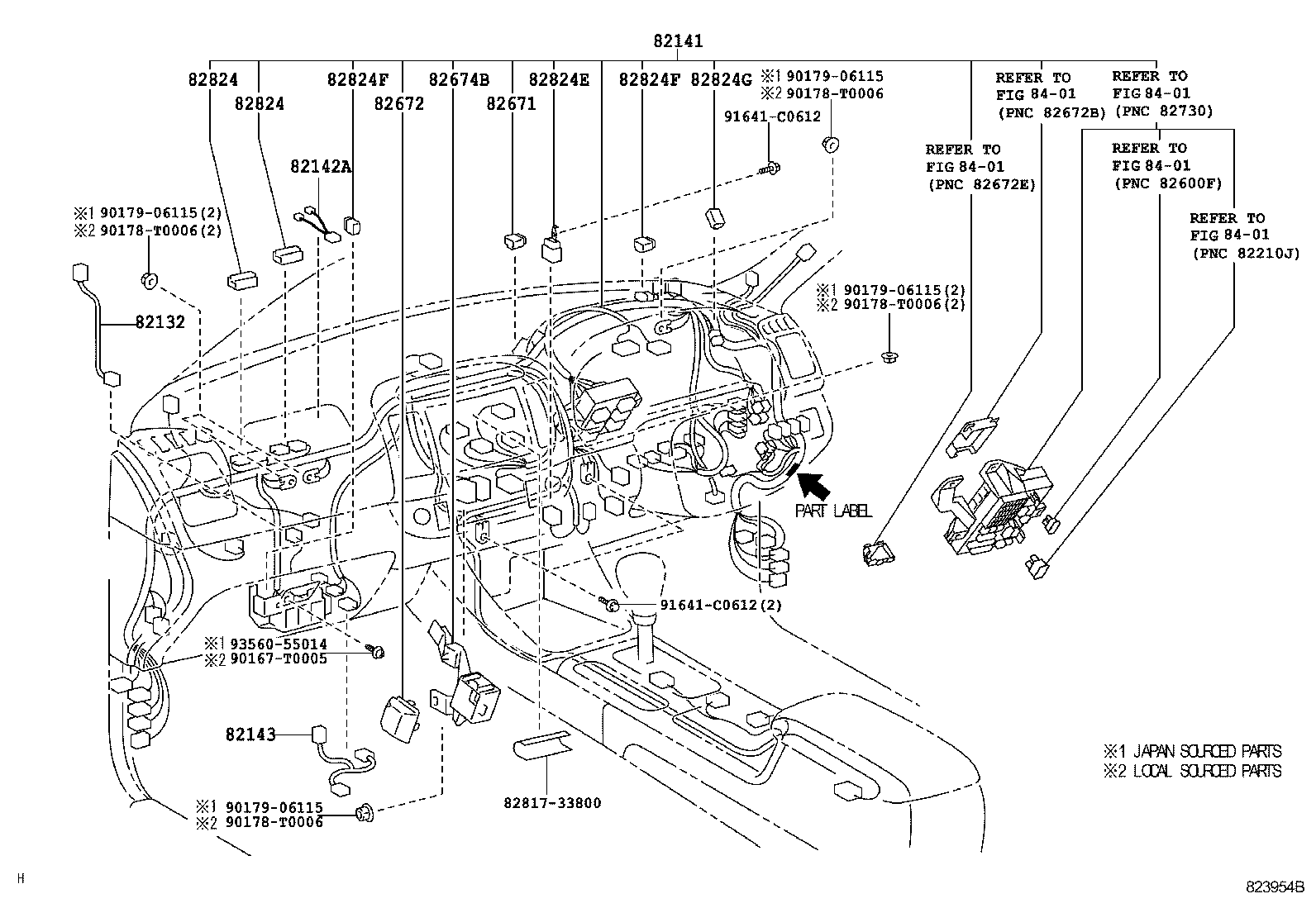

ILLUST NO. 3 OF 8(0109-0406)RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-33010	ACV3#,MCV30	06/2004 - 12/2999	1
82132-33010	ACV3#,MCV30	08/2001 - 06/2004	1
82141 - WIRE, INSTRUMENT PANEL
82141-3Y281	ACV30..RHD PART NUMBER LABEL=82141-3Y281	07/2003 - 06/2004	1
82141-3Y260	ACV30..RHD PART NUMBER LABEL=82141-3Y260	09/2001 - 07/2003	1
82141-3Y280	ACV30..RHD PART NUMBER LABEL=82141-3Y280	09/2001 - 07/2003	1
82141-33C60	ACV30..RHD PART NUMBER LABEL=82141-33C60	06/2004 - 12/2999	1
82141-3Y261	ACV30..RHD PART NUMBER LABEL=82141-3Y261	07/2003 - 06/2004	1
82141-33G90	ACV30..RHD PART NUMBER LABEL=82141-33G90	06/2004 - 12/2999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-33060	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82143-33060	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82671 - BLOCK, JUNCTION
82671-30370	ACV3#,MCV30	06/2004 - 12/2999	1
82671-30370	ACV3#,MCV30	08/2001 - 06/2004	1
82672 - COVER, JUNKTION BLOCK
82672-33250	ACV3#,MCV30	08/2001 - 06/2004	1
82672-33250	ACV3#,MCV30	06/2004 - 12/2999	1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-33040	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82674-33040	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824-12210	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824-12210	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824E - CONNECTOR, WIRING HARNESS
82824-20130	ACV3#,MCV30	06/2004 - 12/2999	1
82824-20130	ACV3#,MCV30	08/2001 - 06/2004	1
82824F - CONNECTOR, WIRING HARNESS
82824-30220	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824-30220	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824F - CONNECTOR, WIRING HARNESS
82824-30220	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824-30220	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824G - CONNECTOR, WIRING HARNESS
82824-50110	ACV3#,MCV30	08/2001 - 06/2004	1
82824-50110	ACV3#,MCV30	06/2004 - 12/2999	1
Common parts
82817-33800
90167-T0005
90178-T0006
90179-06115
91641-C0612
93560-55014
Linked diagrams
8401

ILLUST NO. 8 OF 8(0108- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10887
90980-11019
90980-11060
90980-11095
90980-11096
90980-11148
90980-11149
90980-11156
90980-11162
90980-11587

ILLUST NO. 5 OF 8(0406- )RHD

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-33180	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-33080	ACV3#,MCV30..RHD W(POWER SEAT)	09/2001 - 06/2004	1
82191-33050	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82191-33210	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE)	06/2004 - 12/2999	1
82191-33230	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82191 - WIRE, FRONT SEAT, RH
82191-33180	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-33080	ACV3#,MCV30..RHD W(POWER SEAT)	09/2001 - 06/2004	1
82191-33050	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82191-33210	ACV3#,MCV30..RHD W(POWER SEAT, DRIVER'S SIDE)	06/2004 - 12/2999	1
82191-33230	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82192 - WIRE, FRONT SEAT, LH
82192-33030	ACV3#,MCV30..RHD W(POWER SEAT & SEAT HEATER)	09/2001 - 06/2004	1
82192-33040	ACV3#,MCV30..RHD W(POWER SEAT)	09/2001 - 06/2004	1
82192-33170	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE)	06/2004 - 12/2999	1
82192-33180	ACV3#,MCV30..RHD W(POWER SEAT, PASSENGER SIDE & SEAT HEATER)	06/2004 - 12/2999	1

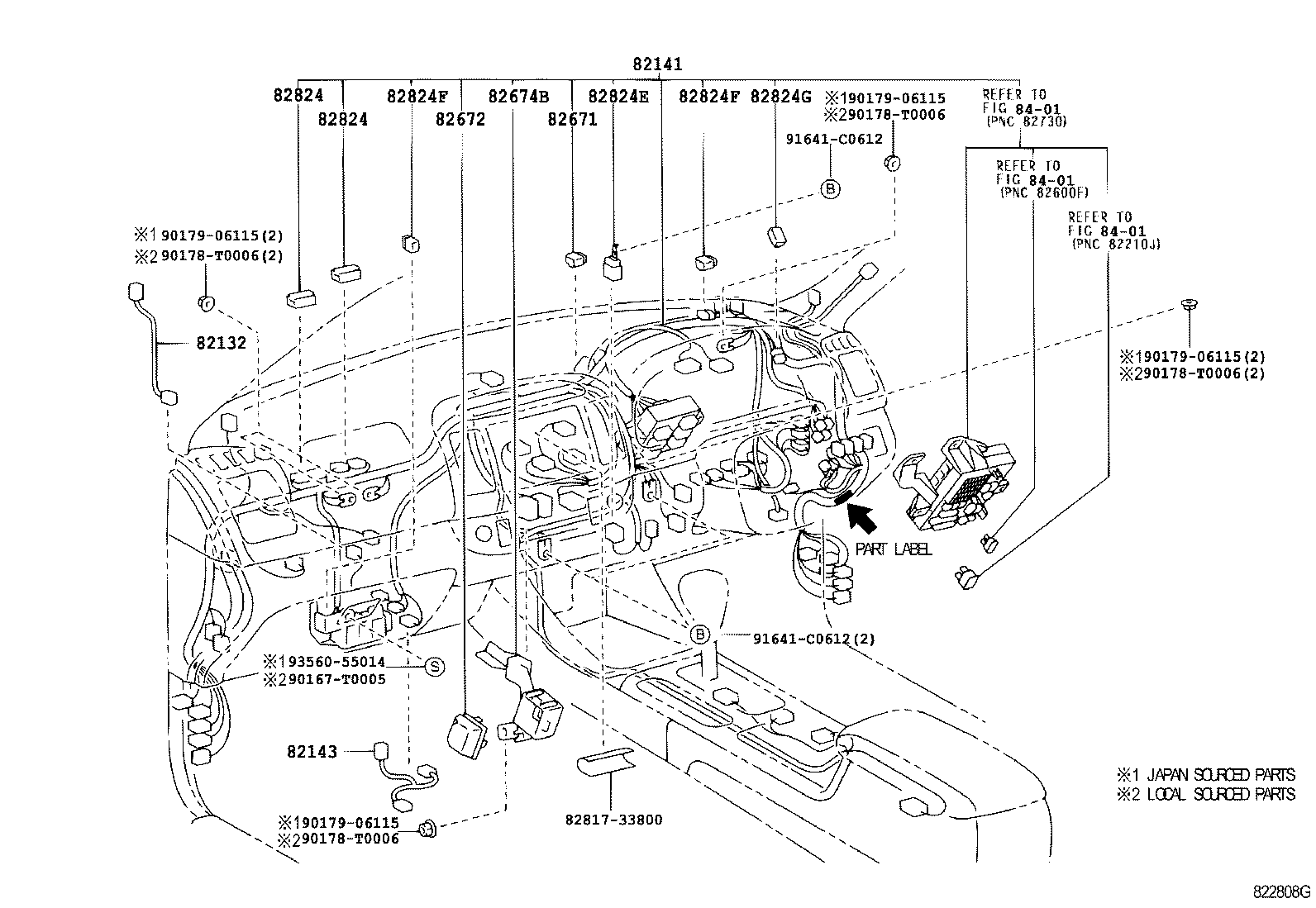

ILLUST NO. 3 OF 8(0406- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-33010	ACV3#,MCV30	06/2004 - 12/2999	1
82132-33010	ACV3#,MCV30	08/2001 - 06/2004	1
82141 - WIRE, INSTRUMENT PANEL
82141-3Y281	ACV30..RHD PART NUMBER LABEL=82141-3Y281	07/2003 - 06/2004	1
82141-3Y260	ACV30..RHD PART NUMBER LABEL=82141-3Y260	09/2001 - 07/2003	1
82141-3Y280	ACV30..RHD PART NUMBER LABEL=82141-3Y280	09/2001 - 07/2003	1
82141-33C60	ACV30..RHD PART NUMBER LABEL=82141-33C60	06/2004 - 12/2999	1
82141-3Y261	ACV30..RHD PART NUMBER LABEL=82141-3Y261	07/2003 - 06/2004	1
82141-33G90	ACV30..RHD PART NUMBER LABEL=82141-33G90	06/2004 - 12/2999	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82142-33120	ACV3#,MCV30	06/2004 - 12/2999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-33060	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82143-33060	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82671 - BLOCK, JUNCTION
82671-30370	ACV3#,MCV30	06/2004 - 12/2999	1
82671-30370	ACV3#,MCV30	08/2001 - 06/2004	1
82672 - COVER, JUNKTION BLOCK
82672-33250	ACV3#,MCV30	08/2001 - 06/2004	1
82672-33250	ACV3#,MCV30	06/2004 - 12/2999	1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-33040	ACV3#,MCV30..RHD	06/2004 - 12/2999	1
82674-33040	ACV3#,MCV30..RHD	09/2001 - 06/2004	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824-12210	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824-12210	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824E - CONNECTOR, WIRING HARNESS
82824-20130	ACV3#,MCV30	06/2004 - 12/2999	1
82824-20130	ACV3#,MCV30	08/2001 - 06/2004	1
82824F - CONNECTOR, WIRING HARNESS
82824-30220	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824-30220	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824F - CONNECTOR, WIRING HARNESS
82824-30220	ACV3#,MCV30..RHD	06/2004 - 12/2999	2
82824-30220	ACV3#,MCV30..RHD	09/2001 - 06/2004	2
82824G - CONNECTOR, WIRING HARNESS
82824-50110	ACV3#,MCV30	08/2001 - 06/2004	1
82824-50110	ACV3#,MCV30	06/2004 - 12/2999	1
Common parts
82817-33800
90167-T0005
90178-T0006
90179-06115
91641-C0612
93560-55014
Linked diagrams
8401

ILLUST NO. 6 OF 8(0108- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-2A730
82715-2J050
82715-2J060
82715-2J070
82715-2J080
82715-33200
82715-33210
82715-33370
82715-33390
82715-33400
82715-33470
82715-33480
82715-33500
82715-33510
82715-33520
82715-33530
82715-33540
82715-33570
82715-33590
82717-33010
90105-10197
90105-10471
90119-06423
90119-06915
90119-08708
90119-T0062
91621-J0612
91631-J0612
91651-B0814

ACV30R-AEMNKW (2001)

ILLUST NO. 5 OF 8(0108-0406)

ILLUST NO. 7 OF 8(0108- )

ILLUST NO. 2 OF 8(0109- )ACV3#..RHD

ILLUST NO. 1 OF 8(0109- )RHD

ILLUST NO. 4 OF 8(0109- )RHD

ILLUST NO. 6 OF 8(0108- )

ILLUST NO. 3 OF 8(0109-0406)RHD

ILLUST NO. 8 OF 8(0108- )

ILLUST NO. 5 OF 8(0406- )RHD

ILLUST NO. 3 OF 8(0406- )RHD

ILLUST NO. 6 OF 8(0108- )

Part Price Details
