3102 - CLUTCH PEDAL & FLEXIBLE HOSE

ACV30R-AEMNKW (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0108-0601)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-33050	ACV30..RHD..MTM	09/2001 - 06/2004	1
31301-33050	ACV30..RHD..MTM	06/2004 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-07033	ACV30..MTM	06/2004 - 12/2999	1
90905-07033	ACV30..MTM	08/2001 - 06/2004	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ACV30..MTM	08/2001 - 06/2004	2
90541-06036	ACV30..MTM	06/2004 - 12/2999	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ACV30..MTM	08/2001 - 06/2004	2
90541-06036	ACV30..MTM	06/2004 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ACV30..MTM	06/2004 - 12/2999	2
90386-13015	ACV30..MTM	08/2001 - 06/2004	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ACV30..MTM	06/2004 - 12/2999	2
90386-13015	ACV30..MTM	08/2001 - 06/2004	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	ACV30..MTM	08/2001 - 06/2004	1
90101-10369	ACV30..MTM	06/2004 - 12/2999	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055	ACV30..MTM	06/2004 - 12/2999	1
90389-06055	ACV30..MTM	08/2001 - 06/2004	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03110	ACV30..MTM	08/2001 - 06/2004	1
90949-03110	ACV30..MTM	06/2004 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-52010	ACV30..MTM	08/2001 - 06/2004	1
31321-52010	ACV30..MTM	06/2004 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90109-10167	ACV30..MTM	08/2001 - 06/2004	1
90109-10167	ACV30..MTM	06/2004 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-35010	ACV30..MTM	06/2004 - 12/2999	1
31353-35010	ACV30..MTM	08/2001 - 06/2004	1
31358 - CAP, OVER CENTER SPRING
31358-42010	ACV30..MTM	08/2001 - 06/2004	1
31358-42010	ACV30..MTM	06/2004 - 12/2999	1
31395 - HOOK, PEDAL SPRING
31395-33010	ACV30..MTM NO.1	08/2001 - 06/2004	1
31395-33010	ACV30..MTM NO.1	06/2004 - 12/2999	1
31395-33020	ACV30..MTM NO.2	08/2001 - 06/2004	1
31395-33020	ACV30..MTM NO.2	06/2004 - 12/2999	1
31395 - HOOK, PEDAL SPRING
31395-33010	ACV30..MTM NO.1	08/2001 - 06/2004	1
31395-33010	ACV30..MTM NO.1	06/2004 - 12/2999	1
31395-33020	ACV30..MTM NO.2	08/2001 - 06/2004	1
31395-33020	ACV30..MTM NO.2	06/2004 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143	ACV30..MTM L=30	06/2004 - 12/2999	1
90249-08143	ACV30..MTM L=30	08/2001 - 06/2004	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	ACV30..MTM	08/2001 - 06/2004	1
90386-08033	ACV30..MTM	06/2004 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-33030	ACV30..RHD..MTM	09/2001 - 06/2004	1
55107-33030	ACV30..RHD..MTM	06/2004 - 02/2005	1
Common parts
90179-10088
90468-16142
91645-80825
94130-61000
96160-00600
Linked diagrams
8401
8408

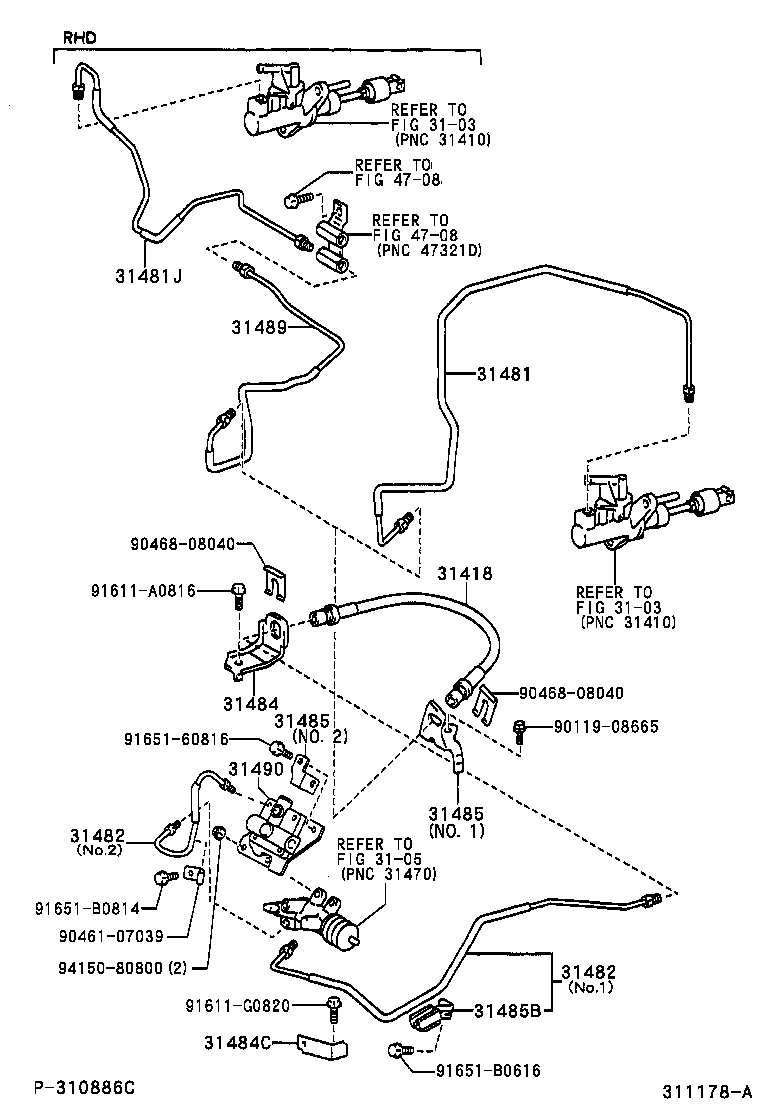

ILLUST NO. 2 OF 2(0108-0307)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02C56	ACV30..MTM	06/2004 - 12/2999	1
90947-02C56	ACV30..MTM	08/2001 - 06/2004	1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-33060	ACV30..RHD..MTM	09/2001 - 05/2003	1
31481-33060	ACV30..RHD..MTM	06/2004 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-33060	ACV30..RHD..MTM	09/2001 - 07/2003	1
31482-33070	ACV30..MTM NO.2	07/2003 - 06/2004	1
31482-33061	ACV30..MTM NO.1	06/2004 - 12/2999	1
31482-33070	ACV30..MTM NO.2	06/2004 - 12/2999	1
31482-33061	ACV30..MTM NO.1	07/2003 - 06/2004	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-33030	ACV30..MTM	06/2004 - 12/2999	1
31484-33030	ACV30..MTM	08/2001 - 06/2004	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320	ACV30..MTM	06/2004 - 01/2006	1
31484-20320	ACV30..MTM	08/2001 - 06/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-42080	ACV30..MTM NO.2	07/2003 - 06/2004	1
31485-33010	ACV30..MTM NO.1	06/2004 - 12/2999	1
31485-33010	ACV30..MTM NO.1	08/2001 - 06/2004	1
31484-42080	ACV30..MTM NO.2	06/2004 - 12/2999	1
31485B - BRACKET, TUBE CLAMP
47386-33040	ACV30..MTM	08/2001 - 06/2004	1
47386-33040	ACV30..MTM	06/2004 - 12/2999	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-33010	ACV30..RHD..MTM	06/2004 - 12/2999	1
31489-33010	ACV30..RHD..MTM	09/2001 - 06/2004	1
Common parts
90119-08665
90468-08040
91611-A0816
91611-G0820
91651-B0616
Linked diagrams
3103
3105
4708

ILLUST NO. 2 OF 2(0307-0601)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02C56	ACV30..MTM	06/2004 - 12/2999	1
90947-02C56	ACV30..MTM	08/2001 - 06/2004	1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-33060	ACV30..RHD..MTM	09/2001 - 05/2003	1
31481-33060	ACV30..RHD..MTM	06/2004 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-33060	ACV30..RHD..MTM	09/2001 - 07/2003	1
31482-33070	ACV30..MTM NO.2	07/2003 - 06/2004	1
31482-33061	ACV30..MTM NO.1	06/2004 - 12/2999	1
31482-33070	ACV30..MTM NO.2	06/2004 - 12/2999	1
31482-33061	ACV30..MTM NO.1	07/2003 - 06/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-33060	ACV30..RHD..MTM	09/2001 - 07/2003	1
31482-33070	ACV30..MTM NO.2	07/2003 - 06/2004	1
31482-33061	ACV30..MTM NO.1	06/2004 - 12/2999	1
31482-33070	ACV30..MTM NO.2	06/2004 - 12/2999	1
31482-33061	ACV30..MTM NO.1	07/2003 - 06/2004	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-33030	ACV30..MTM	06/2004 - 12/2999	1
31484-33030	ACV30..MTM	08/2001 - 06/2004	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320	ACV30..MTM	06/2004 - 01/2006	1
31484-20320	ACV30..MTM	08/2001 - 06/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-42080	ACV30..MTM NO.2	07/2003 - 06/2004	1
31485-33010	ACV30..MTM NO.1	06/2004 - 12/2999	1
31485-33010	ACV30..MTM NO.1	08/2001 - 06/2004	1
31484-42080	ACV30..MTM NO.2	06/2004 - 12/2999	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-42080	ACV30..MTM NO.2	07/2003 - 06/2004	1
31485-33010	ACV30..MTM NO.1	06/2004 - 12/2999	1
31485-33010	ACV30..MTM NO.1	08/2001 - 06/2004	1
31484-42080	ACV30..MTM NO.2	06/2004 - 12/2999	1
31485B - BRACKET, TUBE CLAMP
47386-33040	ACV30..MTM	08/2001 - 06/2004	1
47386-33040	ACV30..MTM	06/2004 - 12/2999	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-33010	ACV30..RHD..MTM	06/2004 - 12/2999	1
31489-33010	ACV30..RHD..MTM	09/2001 - 06/2004	1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-42010	ACV30..MTM	06/2004 - 12/2999	1
31490-42010	ACV30..MTM	07/2003 - 06/2004	1
Common parts
90119-08665
90461-07039
90468-08040
91611-A0816
91611-G0820
91651-60816
91651-B0616
91651-B0814
94150-80800
Linked diagrams
3103
3105
4708
