ACV30R-AEMNKW (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

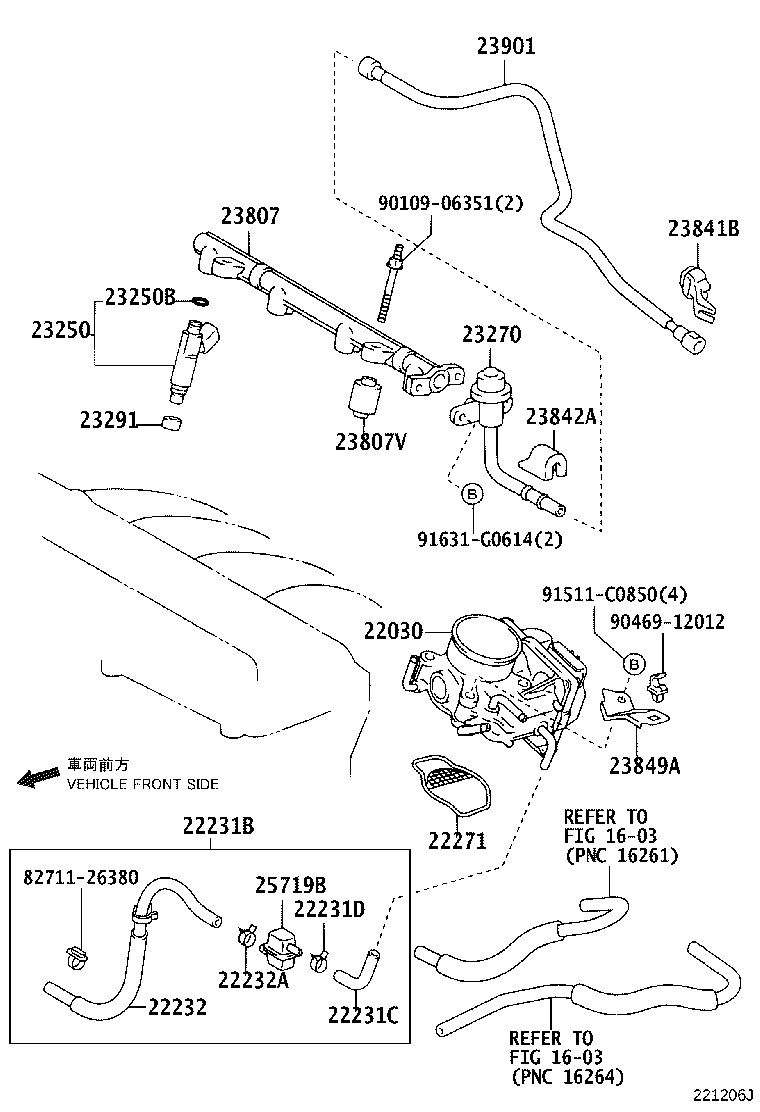

ILLUST NO. 1 OF 2(0108- )1AZFE,2AZFE

Click highlighted areas on diagram

diagram 1603 1603 22030 22231B 22231C 22231D 22232 22232A 22271 23250 23250B 23270 23291 23807 23807V 23841B 23842A 23849A 23901 25719B 8271126380 9010906351 9046912012 91511C0850 91631G0614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-28040

1AZFE,2AZFE..ACV3#

 1
22030-28040

1AZFE,2AZFE..ACV3#

 1
22030-28030

1AZFE,2AZFE..ACV3#

 1
22231B - HOSE, THROTTLE BODY
22231-28030

1AZFE,2AZFE..ACV3#

 1
22231-28030

1AZFE,2AZFE..ACV3#

 1
22231C - HOSE, THROTTLE BODY, NO.1
22231-28040

1AZFE,2AZFE..ACV3#

 1
22231-28040

1AZFE,2AZFE..ACV3#

 1
22231D - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
90467-12056

1AZFE,2AZFE..ACV3#

 1
90467-12056

1AZFE,2AZFE..ACV3#

 1
22232 - HOSE, THROTTLE BODY, NO.2
22232-28010

1AZFE,2AZFE..ACV3#

 1
22232-28010

1AZFE,2AZFE..ACV3#

 1
22232A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
90467-12056

1AZFE,2AZFE..ACV3#

 1
90467-12056

1AZFE,2AZFE..ACV3#

 1
22271 - GASKET, THROTTLE BODY
22271-28020

1AZFE,2AZFE..ACV3#

 1
22271-28020

1AZFE,2AZFE..ACV3#

 1
23250 - INJECTOR ASSY, FUEL
23209-28020

2AZFE..ACV30

 4
23209-28020

2AZFE..ACV30

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

1AZFE,2AZFE..ACV3#

 4
90301-07024

1AZFE,2AZFE..ACV3#

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28020

1AZFE,2AZFE..ACV3#

 1
23270-28020

1AZFE,2AZFE..ACV3#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1AZFE,2AZFE..ACV3#

 4
23291-41010

1AZFE,2AZFE..ACV3#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-28031

1AZFE,2AZFE..ACV3#

 1
23814-28031

1AZFE,2AZFE..ACV3#

 1
23814-28030

1AZFE,2AZFE..ACV3#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08053

1AZFE,2AZFE..ACV3#

 2
90561-08053

1AZFE,2AZFE..ACV3#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010

1AZFE,2AZFE..ACV3#

 1
23841-28010

1AZFE,2AZFE..ACV3#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020

1AZFE,2AZFE..ACV3#

 1
23842-28010

1AZFE,2AZFE..ACV3#

 1
23842-28010

1AZFE,2AZFE..ACV3#

 1
23849A - SUPPORT, FUEL PIPE
23849-28030

1AZFE,2AZFE..ACV3#

 1
23849-28030

1AZFE,2AZFE..ACV3#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-28210

1AZFE,2AZFE..ACV3#

 1
23901-28210

1AZFE,2AZFE..ACV3#

 1
23901-28130

1AZFE,2AZFE..ACV3#

 1
25719B - TANK, VACUUM SURGE
25719-62050

1AZFE,2AZFE..ACV3#

 1
25719-28040

1AZFE,2AZFE..ACV3#

 1
25719-62050

1AZFE,2AZFE..ACV3#

 1
Common parts
82711-26380
90109-06351
90469-12012
91511-C0850
91631-G0614
Linked diagrams
1603

ILLUST NO. 2 OF 2(0108- )1AZFE,2AZFE

Click highlighted areas on diagram

diagram 7701
Part # Description Qty Price
Linked diagrams
7701
