ACV30L-AEPNKW (2001)

Toyota Camry

Production Aug 2001 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )MCV30 ; (0406- )ACV3#..LHD..ATM

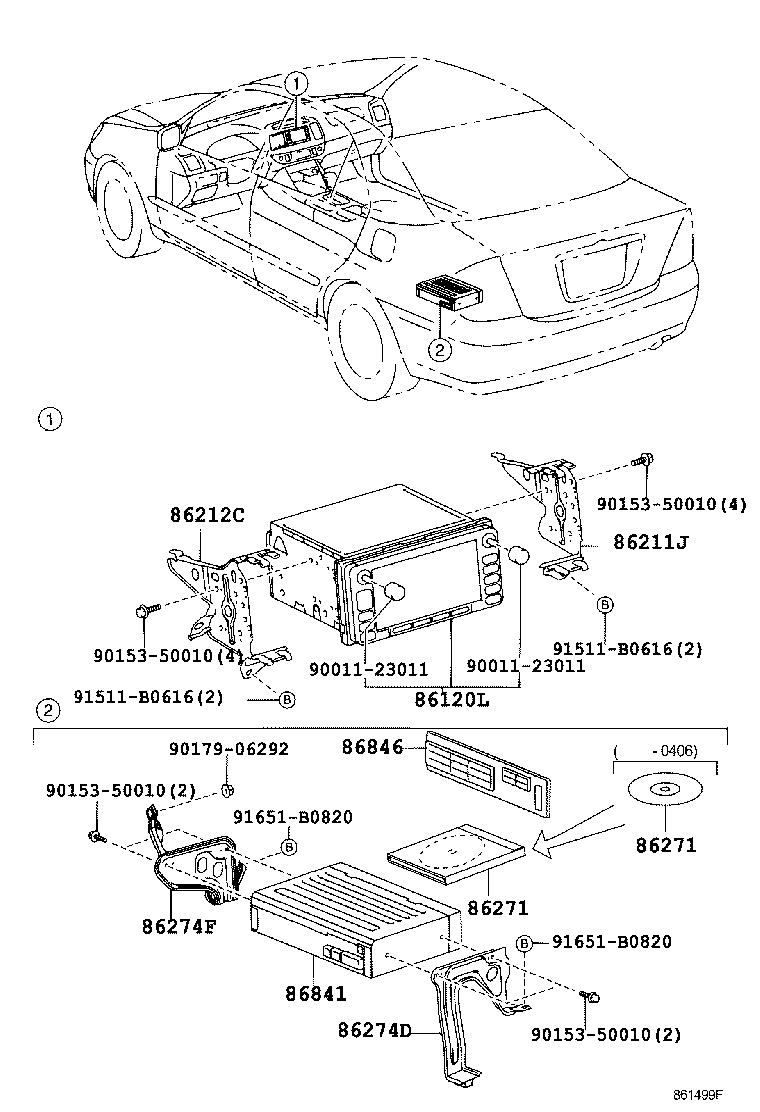

Click highlighted areas on diagram

diagram 86120L 86211J 86212C 86271 86271 86274D 86274F 86841 86846 9001123011 9001123011 9015350010 9015350010 9015350010 9015350010 9017906292 91511B0616 91511B0616 91651B0820 91651B0820
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-33660

ACV3#..LHD..ATM

FUJITSU TEN

 1
86271 - DISC, DISC PLAYER
86807-0N011

ACV3#..LHD..ATM

 1
86807-0N013

ACV3#..LHD..ATM

 1
86807-0N012

ACV3#..LHD..ATM

 1
86807-0N010

ACV3#..LHD..ATM

 1
86271 - DISC, DISC PLAYER
86807-0N011

ACV3#..LHD..ATM

 1
86807-0N013

ACV3#..LHD..ATM

 1
86807-0N012

ACV3#..LHD..ATM

 1
86807-0N010

ACV3#..LHD..ATM

 1
86274D - BRACKET, DISC PLAYER
86274-33190

ACV3#..LHD..ATM

 1
86274F - BRACKET, DISC PLAYER, NO.2
86274-33200

ACV3#..LHD..ATM

 1
86841 - COMPUTER, NAVIGATION
86841-33090

ACV3#..LHD..ATM

 1
86846 - PLATE, NAVIGATION COMPUTER
86846-33020

ACV3#..LHD..ATM

 1
Common parts
90011-23011
90153-50010
90179-06292
91511-B0616
91651-B0820
