ACV30L-AEMNKW (2001)
Toyota Camry
(0108- )

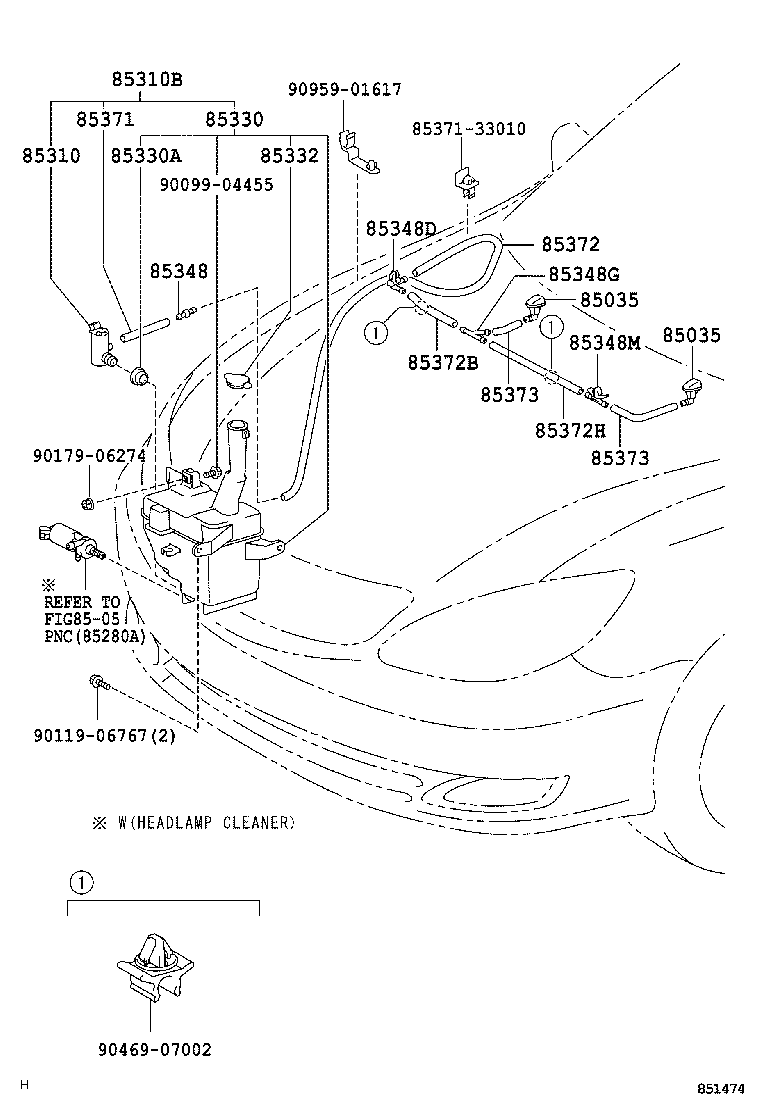

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA040 |
ACV3#,MCV30 |
2 | ||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA041 |
ACV3#,MCV30 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA040 |
ACV3#,MCV30 |
2 | ||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA041 |
ACV3#,MCV30 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-33020 |
ACV3#,MCV30 |
1 | ||
| 85330-33020 |
ACV30,MCV30..LHD W(HEADLAMP CLEANER) |
2 | ||
| 85330-33020 |
ACV3#,MCV30 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-33260 |
ACV3#,MCV30 |
1 | ||
| 85315-33260 |
ACV3#,MCV30 |
1 | ||
| 85355-33080 |
ACV30,MCV30..LHD W(HEADLAMP CLEANER) |
1 | ||
| 85315-33280 |
ACV30,MCV30..LHD W(HEADLAMP CLEANER) |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
ACV3#,MCV30 |
1 | ||
| 85334-22470 |
ACV3#,MCV30 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85376-10250 |
ACV3#,MCV30 |
1 | ||
| 85376-10250 |
ACV3#,MCV30 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
ACV3#,MCV30 |
1 | ||
| 85348-14390 |
ACV3#,MCV30 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-20800 |
ACV3#,MCV30 |
1 | ||
| 85375-20800 |
ACV3#,MCV30 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
ACV30,MCV30..LHD *H,L=100,W(HEADLAMP CLEANER) |
2 | ||
| 90099-33075 |
ACV3#,MCV30 *H,L=100 |
1 | ||
| 90099-33075 |
ACV3#,MCV30 *H,L=100 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
ACV3#,MCV30 *H,L=1730 |
1 | ||
| 90099-33803 |
ACV3#,MCV30 *H,L=1730 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ACV3#,MCV30 *H,L=350 |
1 | ||
| 90099-33080 |
ACV3#,MCV30 *H,L=350 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ACV3#,MCV30 *H,L=520 |
1 | ||
| 90099-33080 |
ACV3#,MCV30 *H,L=520 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| Common parts | ||||
| 85371-33010 | ||||
| 90119-06767 | ||||
| 90179-06274 | ||||
| 90469-07002 | ||||
(0108- )ACV30,MCV30..LHD
W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA040 |
ACV3#,MCV30 |
2 | ||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA041 |
ACV3#,MCV30 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA040 |
ACV3#,MCV30 |
2 | ||
| 85381-AA042 |
ACV3#,MCV30 |
2 | ||
| 85381-AA041 |
ACV3#,MCV30 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-33020 |
ACV3#,MCV30 |
1 | ||
| 85330-33020 |
ACV30,MCV30..LHD W(HEADLAMP CLEANER) |
2 | ||
| 85330-33020 |
ACV3#,MCV30 |
1 | ||
| 85310B - MOTOR & PUMP ASSY, WINDSHIELD WASHER | ||||
| 85355-33080 |
ACV30,MCV30..LHD |
1 | ||
| 85355-33080 |
ACV30,MCV30..LHD |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-33260 |
ACV3#,MCV30 |
1 | ||
| 85315-33260 |
ACV3#,MCV30 |
1 | ||
| 85355-33080 |
ACV30,MCV30..LHD W(HEADLAMP CLEANER) |
1 | ||
| 85315-33280 |
ACV30,MCV30..LHD W(HEADLAMP CLEANER) |
2 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
ACV30,MCV30..LHD |
2 | ||
| 90099-32089 |
ACV30,MCV30..LHD |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-33050 |
ACV30,MCV30..LHD |
2 | ||
| 85316-33050 |
ACV30,MCV30..LHD |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-22470 |
ACV3#,MCV30 |
1 | ||
| 85334-22470 |
ACV3#,MCV30 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85376-10250 |
ACV3#,MCV30 |
1 | ||
| 85376-10250 |
ACV3#,MCV30 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
ACV3#,MCV30 |
1 | ||
| 85348-14390 |
ACV3#,MCV30 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-20800 |
ACV3#,MCV30 |
1 | ||
| 85375-20800 |
ACV3#,MCV30 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33075 |
ACV30,MCV30..LHD *H,L=100,W(HEADLAMP CLEANER) |
2 | ||
| 90099-33075 |
ACV3#,MCV30 *H,L=100 |
1 | ||
| 90099-33075 |
ACV3#,MCV30 *H,L=100 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
ACV3#,MCV30 *H,L=1730 |
1 | ||
| 90099-33803 |
ACV3#,MCV30 *H,L=1730 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ACV3#,MCV30 *H,L=350 |
1 | ||
| 90099-33080 |
ACV3#,MCV30 *H,L=350 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ACV3#,MCV30 *H,L=520 |
1 | ||
| 90099-33080 |
ACV3#,MCV30 *H,L=520 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| 90068-33024 |
ACV3#,MCV30 L=170 |
2 | ||
| Common parts | ||||
| 85371-33010 | ||||
| 90099-04455 | ||||
| 90119-06767 | ||||
| 90179-06274 | ||||
| 90469-07002 | ||||
| 90959-01617 | ||||
| Linked diagrams | ||||
| 8505 | ||||
