GSV50L-RETGKX (2014)

Toyota Camry/Hybrid

Production Nov 2014 - Mar 2018
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1411- )

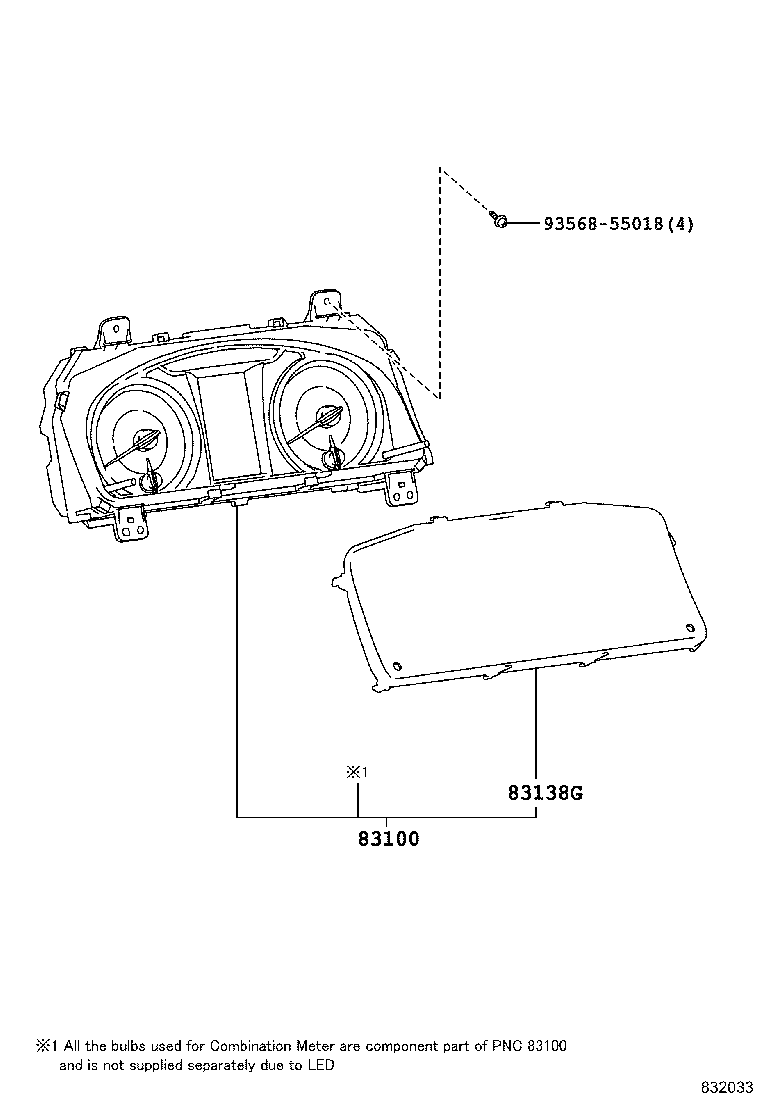

Click highlighted areas on diagram

diagram 83100 83138G 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-33L90

ACV51,ASV50,GSV50..RUP

 1
83800-0XC01

ASV50,GSV50..RUP

 1
83800-0XC00

ASV50,GSV50..RUP

 1
83138G - GLASS, COMBINATION METER
83852-33L40

ACV51,ASV50,GSV50..RUP

 1
83852-0XC00

ASV5#,GSV50..RUP

 1
Common parts
93568-55018
