GSV50L-AETGKX (2014)
Toyota Camry/Hybrid
(1409- )JPP ; (1411- )ASV50,GSV50..RUP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-33120G0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS OLIVE M.M.,6T7 |
1 | ||
| 85044-33120B2 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS DK. STEEL MC.,1H2 |
1 | ||
| 85044-33120E0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS BEIGE ME.,4T8 |
1 | ||
| 85044-33120A1 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS WHITE PEARL CS.,070 |
1 | ||
| 85044-33120B0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS SILVER ME.,1F7 |
1 | ||
| 85044-33120J0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS TRUE BLUE M.M.,8W1 |
1 | ||
| 85044-33120B1 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS GRAY ME.,1G3 |
1 | ||
| 85044-33120C0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS ATTITUDE BLACK MC.,218 |
1 | ||
| 85044-33180B0 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP SILVER ME.,1F7 |
1 | ||
| 85044-33180B1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP GRAY M.M.,1H1 |
1 | ||
| 85044-33180C0 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP ATTITUDE BLACK MC.,218 |
1 | ||
| 85044-33180D1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP RED M.M.,3R3 |
1 | ||
| 85044-33180B2 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP DK. STEEL MC.,1H2 |
1 | ||
| 85044-33180J0 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP TRUE BLUE M.M.,8W1 |
1 | ||
| 85044-33180A1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP WHITE PEARL CS.,070 |
1 | ||
| 85044-33180J1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP DK.BLUE M.M.,8W7 |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85045-33080E0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS BEIGE ME.,4T8 |
1 | ||
| 85045-33080G0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS OLIVE M.M.,6T7 |
1 | ||
| 85045-33080B0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS SILVER ME.,1F7 |
1 | ||
| 85045-33080A1 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS WHITE PEARL CS.,070 |
1 | ||
| 85045-33080C0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS ATTITUDE BLACK MC.,218 |
1 | ||
| 85045-33080B1 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS GRAY ME.,1G3 |
1 | ||
| 85045-33080J0 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS TRUE BLUE M.M.,8W1 |
1 | ||
| 85045-33080B2 |
GSV50..JPP;ASV50..RHD;ASV50..JPP..RUS DK. STEEL MC.,1H2 |
1 | ||
| 85045-33140B0 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP SILVER ME.,1F7 |
1 | ||
| 85045-33140A1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP WHITE PEARL CS.,070 |
1 | ||
| 85045-33140B2 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP DK. STEEL MC.,1H2 |
1 | ||
| 85045-33140C0 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP ATTITUDE BLACK MC.,218 |
1 | ||
| 85045-33140J0 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP TRUE BLUE M.M.,8W1 |
1 | ||
| 85045-33140D1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP RED M.M.,3R3 |
1 | ||
| 85045-33140J1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP DK.BLUE M.M.,8W7 |
1 | ||
| 85045-33140B1 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP GRAY M.M.,1H1 |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-33110 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 TYPE A:REFER ILLUST. |
1 | ||
| 85207-33040 |
GSV50;ASV50..RUS;ASV50..RHD |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-33110 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 TYPE A:REFER ILLUST. |
1 | ||
| 85208-33040 |
GSV50;ASV50..RUS;ASV50..RHD |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15057 |
GSV50;ASV50..RUS;ASV50..RHD L=220 |
1 | ||
| 90075-15097 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP L=140 |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15054 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP L=120 |
1 | ||
| 90075-15053 |
GSV50;ASV50..RUS;ASV50..RHD L=35 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15092 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP L=1800 |
1 | ||
| 90075-15072 |
GSV50;ASV50..RUS;ASV50..RHD L=1550 |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
1 | ||
| 85280-47010 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 90099-32089 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 |
1 | ||
| 90099-32089 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17009 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
3 | ||
| 90075-17001 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17009 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
3 | ||
| 90075-17001 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17009 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
3 | ||
| 90075-17001 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17003 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 |
1 | ||
| 90075-17010 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17002 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 |
1 | ||
| 90075-17012 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
1 | ||
| 85371B - HOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT) | ||||
| 90075-15053 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP L=35 |
1 | ||
| 90075-15053 |
ASV50..RUS;ASV50..RHD;AVV50,GSV50 L=35 |
1 | ||
| Common parts | ||||
| 85272-75050 | ||||
| 90075-90512 | ||||
| 90075-91002 | ||||

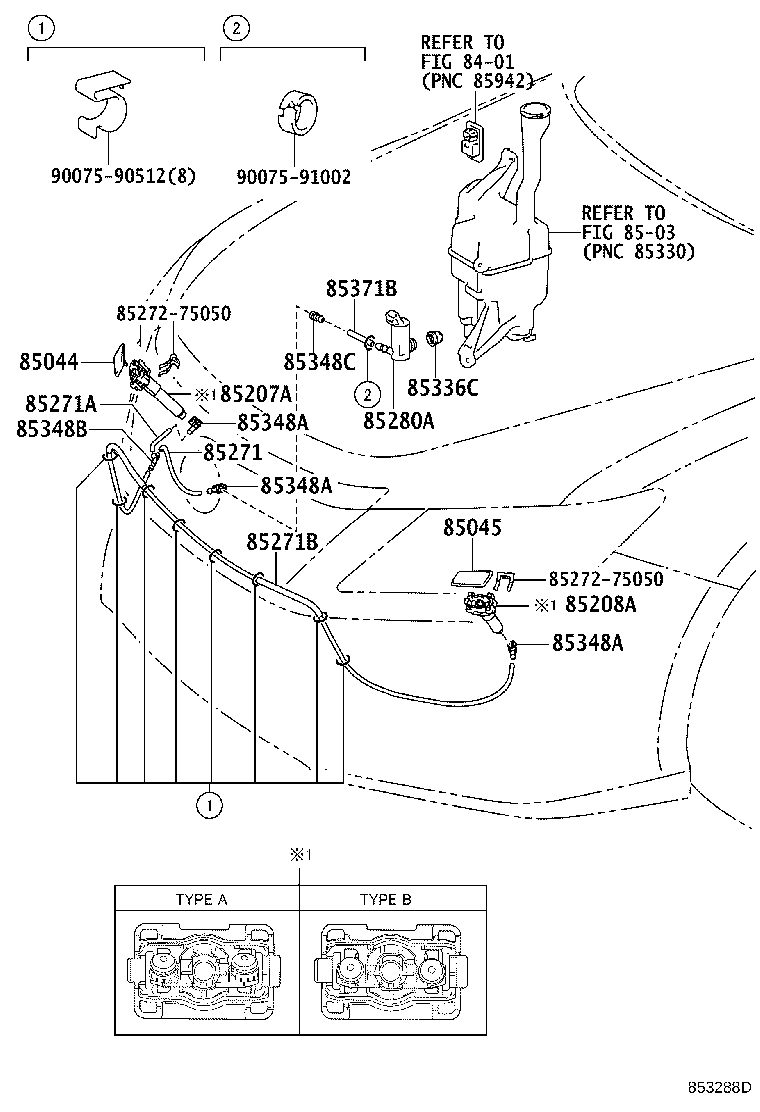

| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
