GSV50L-AETGKX (2014)

Toyota Camry/Hybrid

Production Sep 2014 - Apr 2017
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )ASV51,AVV50..LHD ; (1409- )ASV50,GSV50..JPP..LHD ; (1411- )ASV50,G

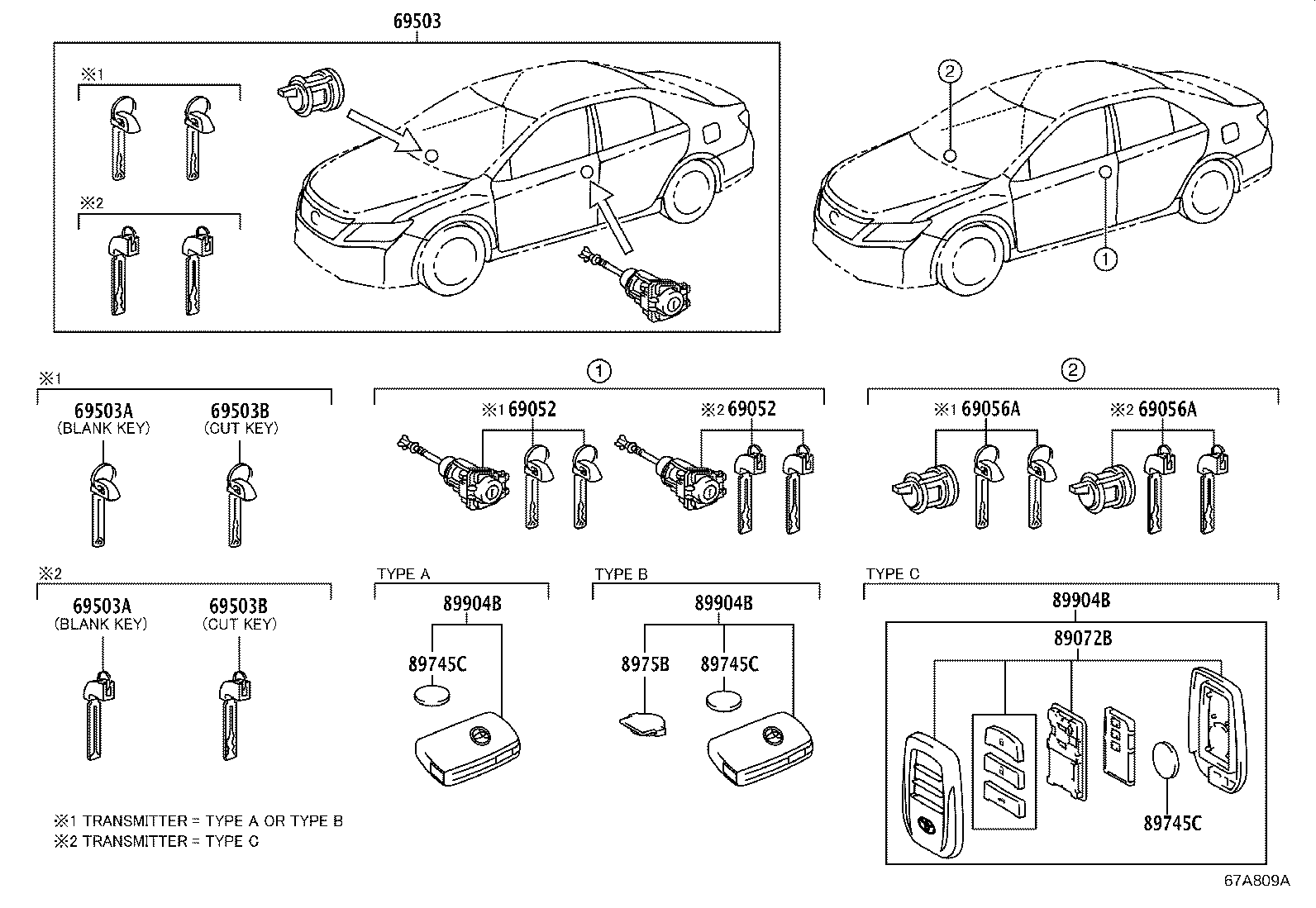

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 69052 69052 69056A 69056A 69503 69503A 69503A 69503B 69503B 89072B 89745C 89745C 89745C 8975B 89904B 89904B 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33291

AVV50,GSV50..JPP..LHD

 1
69052-33380

GSV50..JPP..RUS

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33291

AVV50,GSV50..JPP..LHD

 1
69052-33380

GSV50..JPP..RUS

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-33230

AVV50,GSV50..JPP

 1
69056-33240

GSV50..JPP..RUS

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-33230

AVV50,GSV50..JPP

 1
69056-33240

GSV50..JPP..RUS

 1
69503 - CYLINDER SET, LOCK
69005-33C51

AVV50,GSV50..JPP..LHD

 1
69005-33D40

GSV50..JPP..RUS

 1
69503A - KEY, BLANK
69515-33100

AVV50,GSV50..JPP

MASTER KEY,W(*68)

 1
69515-33120

GSV50..JPP..RUS

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
69515-33100

AVV50,GSV50..JPP

MASTER KEY,W(*68)

 1
69515-33120

GSV50..JPP..RUS

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-33090

AVV50,GSV50..JPP

MASTER KEY,W(*68)

 2
69515-33110

GSV50..JPP..RUS

MASTER KEY,W(*68)

 2
69503B - KEY, CUT
69515-33090

AVV50,GSV50..JPP

MASTER KEY,W(*68)

 2
69515-33110

GSV50..JPP..RUS

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-33800

GSV50..JPP..RUS

TYPE C:REFER ILLUST.

 1
89745C - BATTERY, TRANSMITTER
89745-50020

AVV50,GSV50..JPP..LHD

TYPE B:REFER ILLUST.

 1
89745-50020

GSV50..RUS

TYPE C:REFER ILLUST.

 1
89745C - BATTERY, TRANSMITTER
89745-50020

AVV50,GSV50..JPP..LHD

TYPE B:REFER ILLUST.

 1
89745-50020

GSV50..RUS

TYPE C:REFER ILLUST.

 1
89745C - BATTERY, TRANSMITTER
89745-50020

AVV50,GSV50..JPP..LHD

TYPE B:REFER ILLUST.

 1
89745-50020

GSV50..RUS

TYPE C:REFER ILLUST.

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-33010

AVV50,GSV50..JPP..LHD

TYPE B:REFER ILLUST.

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33500

GSV50..JPP

TYPE B:REFER ILLUST.

 2
89904-33660

GSV50..RUS

TYPE C:REFER ILLUST.

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33500

GSV50..JPP

TYPE B:REFER ILLUST.

 2
89904-33660

GSV50..RUS

TYPE C:REFER ILLUST.

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33500

GSV50..JPP

TYPE B:REFER ILLUST.

 2
89904-33660

GSV50..RUS

TYPE C:REFER ILLUST.

 2
