Toyota Camry/hybrid GSV50 FRONT BUMPER & BUMPER STAY

GSV50L-AETGKX (2014)

Toyota Camry/Hybrid

Production Sep 2014 - Apr 2017

Engine 2GRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

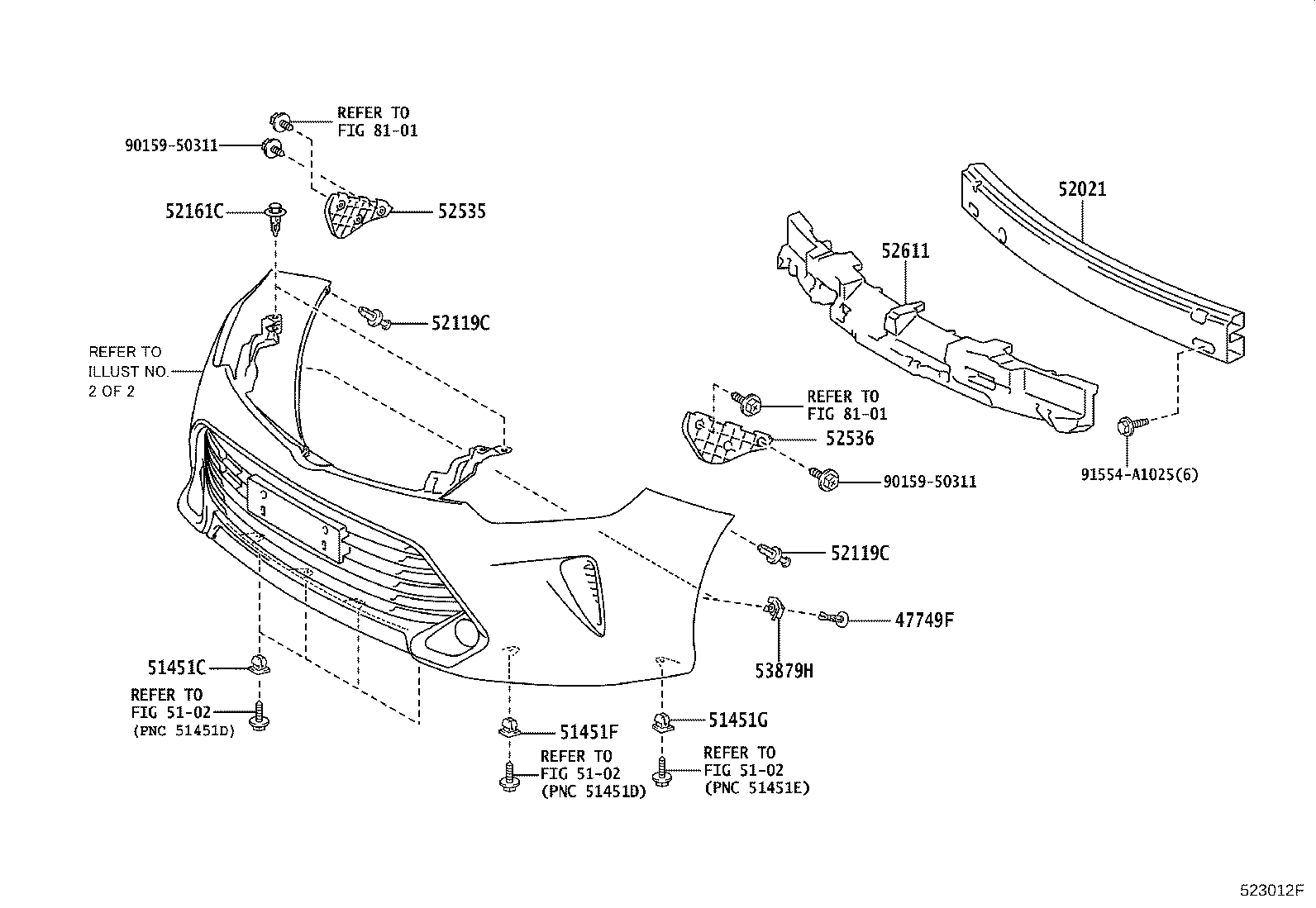

Click highlighted areas on diagram

Part #	Description	Period	Qty
47749F - CLIP, PIN HOLD
47749-58010	ASV50,AVV50,GSV50..JPP	08/2011 - 09/2014	2
51451F - GROMMET, NO.1
90189-06193	ASV50..RUS;ASV50..RHD;ACV51,GSV50	08/2011 - 11/2014	4
51451G - GROMMET, NO.2
90189-06193	ASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50	08/2011 - 11/2014	2
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-33180	ACV51,ASV50,AVV50,GSV50	08/2011 - 04/2013	1
52021-33181	ASV50,AVV50,GSV50..JPP	09/2014 - 04/2017	1
52119C - CLIP, FRONT BUMPER COVER
90467-05090B1	ACV51,ASV50,AVV50,GSV50 DK.GRAY	08/2011 - 12/2012	2
52119C - CLIP, FRONT BUMPER COVER
90467-05090B1	ACV51,ASV50,AVV50,GSV50 DK.GRAY	08/2011 - 12/2012	2
52161C - PIECE, FRONT BUMPER
52161-16010	ASV50,AVV50,GSV50..JPP	09/2014 - 04/2017	2
52161-16010	ASV50,AVV50,GSV50..JPP	08/2011 - 09/2014	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33050	ASV50,AVV50,GSV50..JPP	08/2011 - 09/2014	1
52535-33050	ASV50,AVV50,GSV50..JPP	09/2014 - 04/2017	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33050	ASV50,AVV50,GSV50..JPP	08/2011 - 09/2014	1
52536-33050	ASV50,AVV50,GSV50..JPP	09/2014 - 04/2017	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33200	ASV50,GSV50..JPP	08/2011 - 09/2014	1
52611-33260	ASV50,AVV50,GSV50..JPP	09/2014 - 04/2017	1
53879H - RETAINER, FRONT FENDER LINER
53879-30040	ACV51,ASV50,AVV50,GSV50	08/2011 - 11/2014	2
53879-30050	ASV50,AVV50,GSV50..JPP	09/2014 - 04/2017	2
Common parts
90159-50311
91554-A1025
Linked diagrams
5102
8101

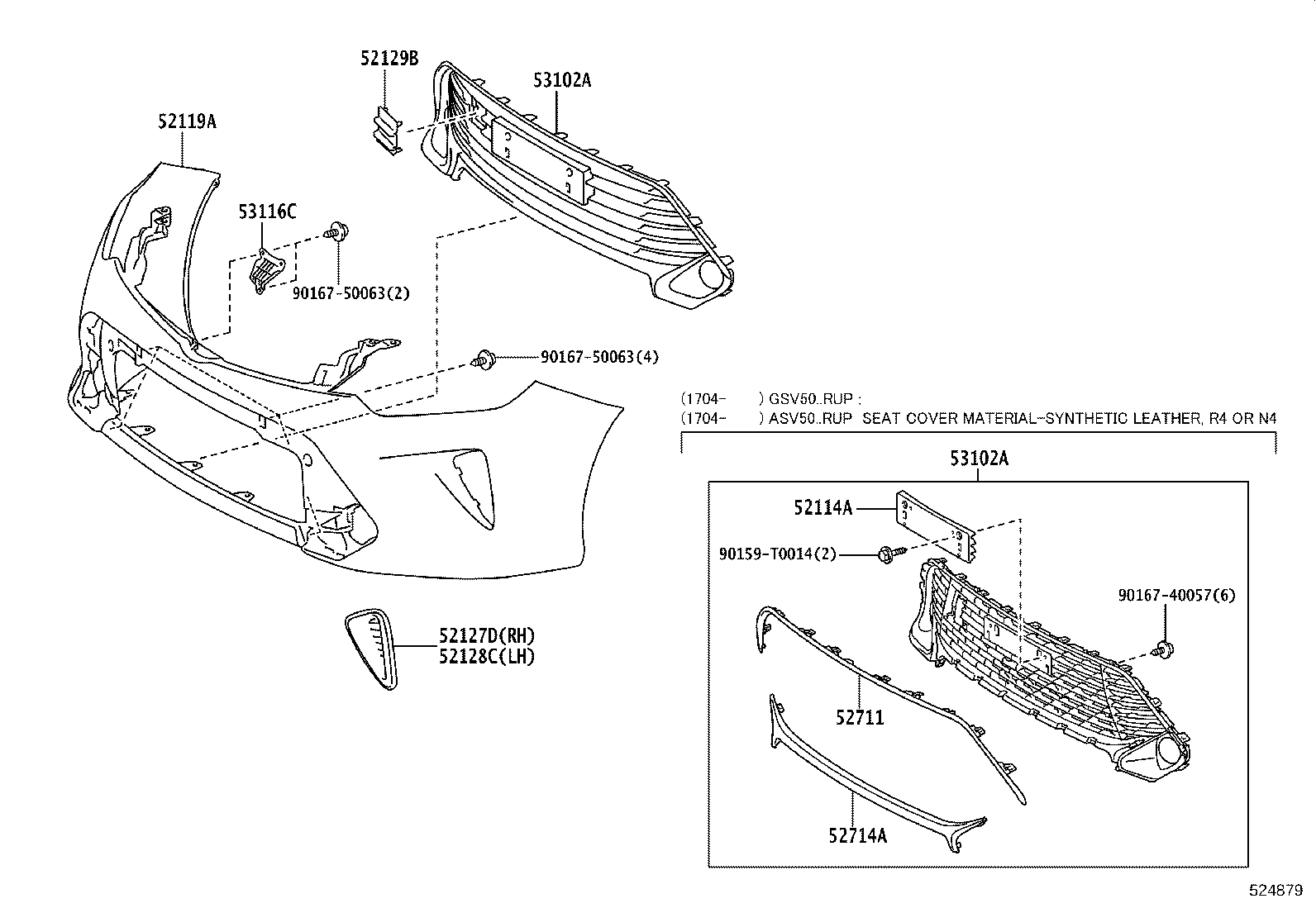

Click highlighted areas on diagram

Part #	Description	Period	Qty
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-33280	ASV50,GSV50..JPP	08/2011 - 09/2014	1
52119A - COVER, FRONT BUMPER
52119-3T904	ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP PAINT REQ.	09/2014 - 11/2015	1
52119-33987	GSV50;ASV50..RUS;ASV50..RHD PAINT REQ.	08/2011 - 11/2014	1
52119-3T927	ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP PAINT REQ.	11/2015 - 04/2017	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-33130	ASV50,GSV50..JPP	08/2011 - 06/2013	1
52127-33060	GSV50;ASV50,AVV50..JPP	09/2014 - 04/2017	1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-33130	ASV50,GSV50..JPP	08/2011 - 06/2013	1
52128-33180	GSV50;ASV50,AVV50..JPP	09/2014 - 04/2017	1
52129B - COVER, FRONT BUMPER, LOWER
52129-33071	ASV50,AVV50,GSV50..JPP	10/2015 - 04/2017	1
52129-33906	ACV51,ASV50,GSV50	08/2011 - 11/2014	1
52129-33070	ASV50,AVV50,GSV50..JPP	09/2014 - 10/2015	1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-33021	ASV50,AVV50,GSV50..JPP	10/2015 - 04/2017	1
53102-33020	ASV50,AVV50,GSV50..JPP	09/2014 - 10/2015	1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-33021	ASV50,AVV50,GSV50..JPP	10/2015 - 04/2017	1
53102-33020	ASV50,AVV50,GSV50..JPP	09/2014 - 10/2015	1
53116C - BRACKET, RADIATOR GRILLE, NO.2
53115-33030	ASV50,AVV50,GSV50..JPP	09/2014 - 04/2017	1
Common parts
90159-T0014
90167-40057
90167-50063
