AXVH71R-AEXNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2006)RHD

Click highlighted areas on diagram

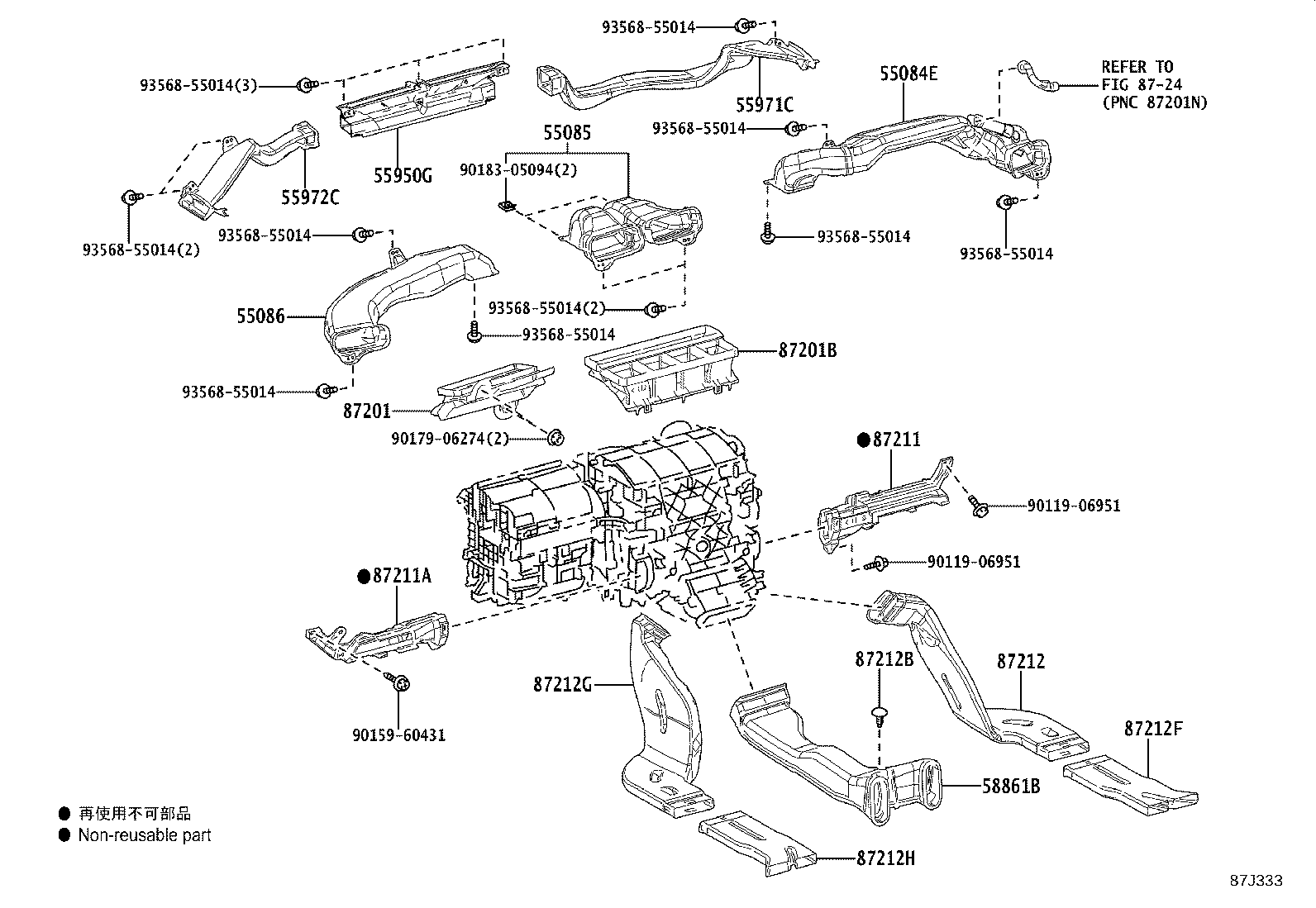

AIR DUCT

diagram 55084E 55085 55086 55950G 55971C 55972C 58861B 87201 87201B 87211 87211A 87212 87212B 87212F 87212G 87212H 8724 9011906951 9011906951 9015960431 9017906274 9018305009 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55870-33050

ASV70,AXVH71..RHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55844-33200

ASV70,AXVH71..RHD

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55845-33190

ASV70,AXVH71..RHD

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-33150

ASV70,AXVH71..RHD

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-33160

ASV70,AXVH71..RHD

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-33170

ASV70,AXVH71..RHD

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-33120

ASV70,AXVH71..RHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33510

ASV70,AXVH71..RHD

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33540

ASV70,AXVH71..RHD

 1
87211 - DUCT, AIR, NO.1
87201-33490

ASV70,AXVH71..RHD

 1
87211A - DUCT, AIR, NO.2
87201-33500

ASV70,AXVH71..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-33060

ASV70,AXVH71..RHD

 1
87212B - CLIP, AIR DUCT
90467-05161C0

ASV7#,AXVA70,AXVH71,GSV70

BLACK

 1
87212F - DUCT, AIR, REAR NO.2
87215-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
87212G - DUCT, AIR, REAR NO.3
87213-33080

ASV70,AXVH71..RHD

 1
87212H - DUCT, AIR, REAR NO.4
87216-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90119-06951
90159-60431
90179-06274
90183-05009
93568-55014
Linked diagrams
8724

(1709-2102)AXVH71..RHD

Click highlighted areas on diagram

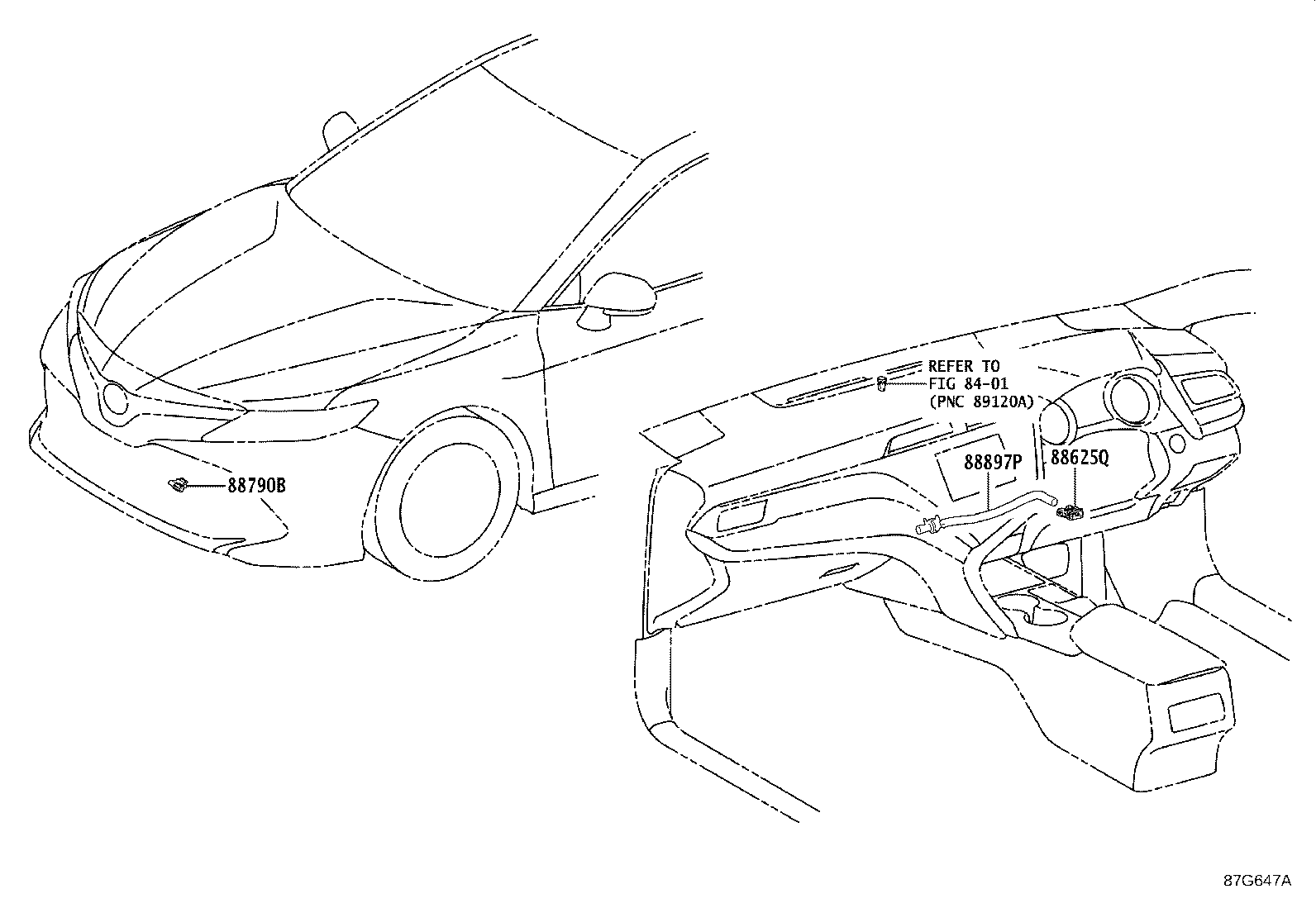

SENSOR

diagram 8401 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
88790B - THERMISTOR ASSY
88790-28100

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
88897P - ASPIRATOR
87201-33520

ASV70,AXVH71..RHD

 1
Linked diagrams
8401

(1709-2102)RHD

Click highlighted areas on diagram

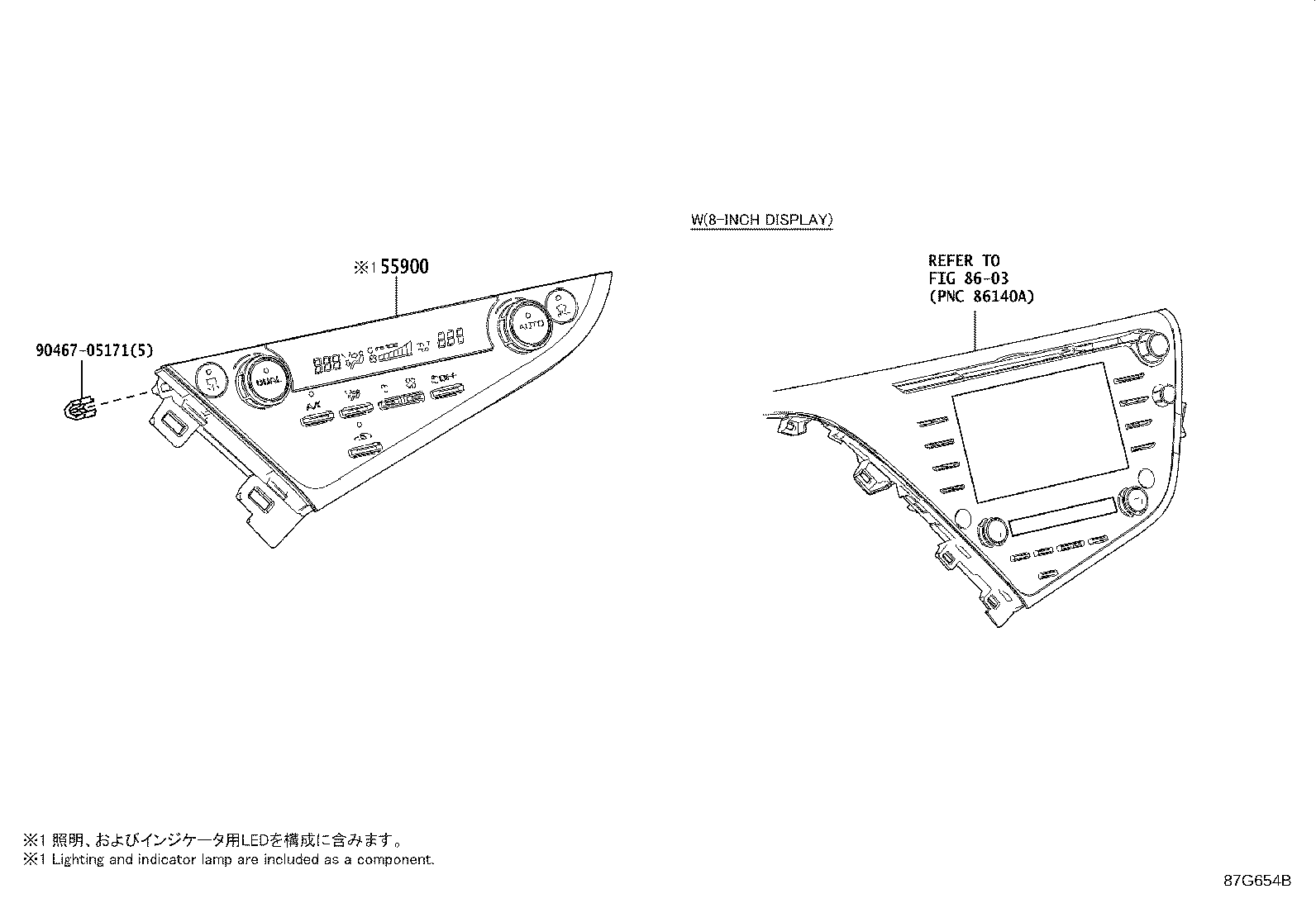

HEATER CONTROL PANEL

diagram 55900 8603 9046705171
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-33K80

ASV70,AXVH71..RHD..N

LATIN AMERICA SPEC

 1
55900-33M90

AXVH71..RHD..D

 1
Common parts
90467-05171
Linked diagrams
8603

(2007-2102)RHD

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55086 55950G 55971C 55972C 58861B 87201 87201B 87211 87211A 87212 87212B 87212F 87212G 87212H 8724 9011906951 9011906951 9015960431 9017906274 9018305094 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55870-33050

ASV70,AXVH71..RHD

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55844-33200

ASV70,AXVH71..RHD

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55845-33190

ASV70,AXVH71..RHD

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-33150

ASV70,AXVH71..RHD

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-33160

ASV70,AXVH71..RHD

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-33170

ASV70,AXVH71..RHD

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-33120

ASV70,AXVH71..RHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33510

ASV70,AXVH71..RHD

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33540

ASV70,AXVH71..RHD

 1
87211 - DUCT, AIR, NO.1
87201-33490

ASV70,AXVH71..RHD

 1
87211A - DUCT, AIR, NO.2
87201-33500

ASV70,AXVH71..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-33060

ASV70,AXVH71..RHD

 1
87212B - CLIP, AIR DUCT
90467-05161C0

ASV7#,AXVA70,AXVH71,GSV70

BLACK

 1
87212F - DUCT, AIR, REAR NO.2
87215-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
87212G - DUCT, AIR, REAR NO.3
87213-33080

ASV70,AXVH71..RHD

 1
87212H - DUCT, AIR, REAR NO.4
87216-33020

ASV70,AXVA70,AXVH7#,GSV70..EUR

 1
Common parts
90119-06951
90159-60431
90179-06274
90183-05094
93568-55014
Linked diagrams
8724
