AXVH71R-AEXNBW (2017)
Toyota Camry/Hybrid
ILLUST NO. 2 OF 2(1709- )RHD
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-33480 |
ASV70,AXVH71..RHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-33310 |
ASV70,AXVH71..RHD |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
6 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-33270 |
ASV70,AXVH71..RHD |
1 | ||
| 55223-33310 |
ASV70,AXVH71..RHD |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
ASV70,AXVH71..RHD |
4 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
3 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
3 | ||

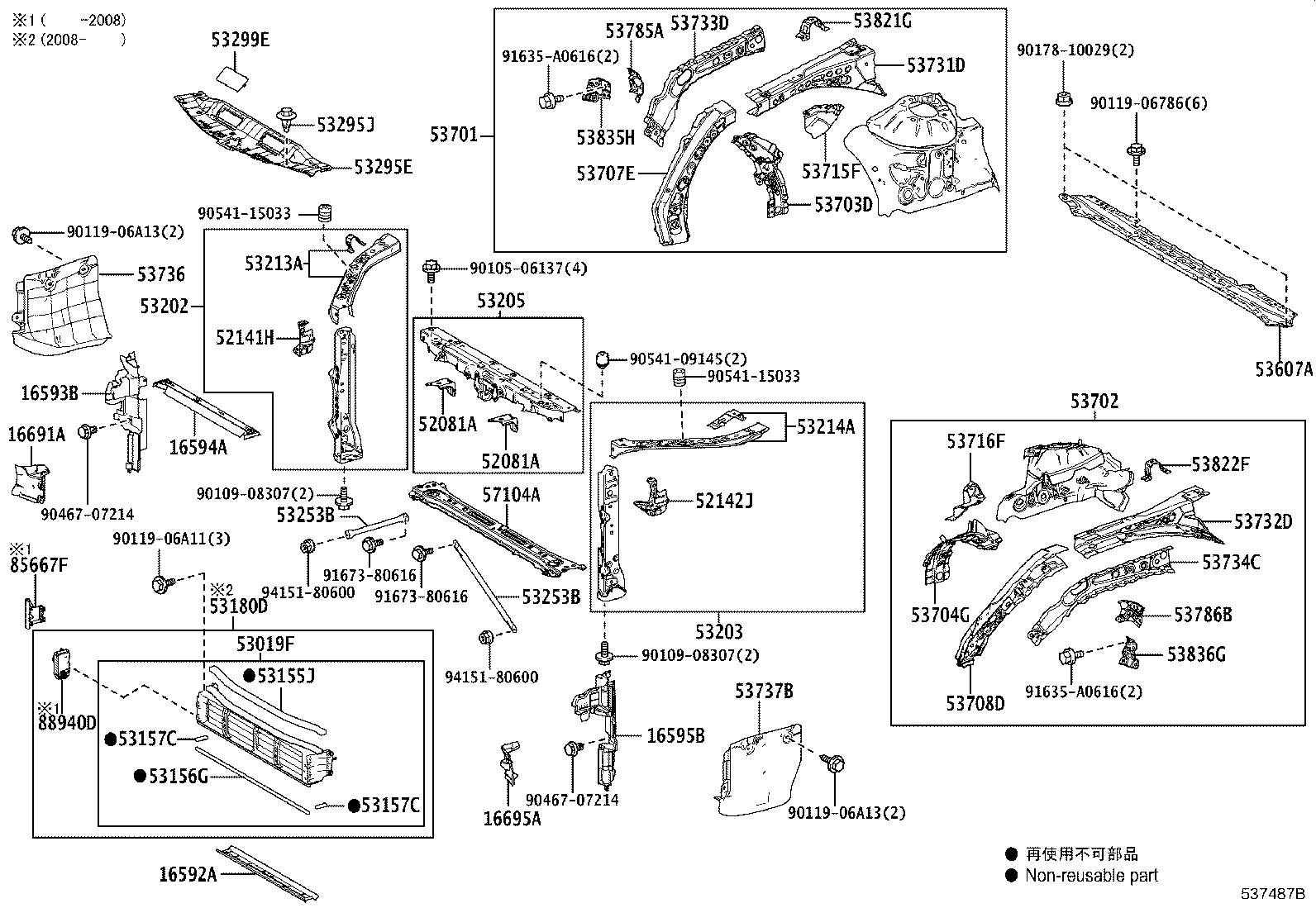

ILLUST NO. 1 OF 2(1709- )AXVH71..RHD
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-25010 |
A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-25010 |
A25AFXS..AXVH7# |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-25010 |
A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-25010 |
A25AFXS..AXVH7# |
1 | ||
| 16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH | ||||
| 16691-25050 |
A25AFXS..AXVH7# |
1 | ||
| 16691-25010 |
A25AFXS..AXVH71 |
1 | ||
| 16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH | ||||
| 16695-25010 |
A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR |
1 | ||
| 52081A - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 52081A - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52081-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 52141H - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 52142J - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-33110 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-33010 |
AXVH71 |
1 | ||
| 53019-33020 |
AXVH7# |
1 | ||
| 53019-33011 |
AXVH71 |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-33070 |
AXVH71 |
1 | ||
| 53155-33120 |
AXVH7# |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-33010 |
AXVH7# |
1 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-33010 |
AXVH7# |
2 | ||
| 53157C - SEAL, RADIATOR GRILLE, NO.3 | ||||
| 53157-33010 |
AXVH7# |
2 | ||
| 53180D - SHUTTER ASSY, RADIATOR | ||||
| 53180-33090 |
AXVH7# |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-33903 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-33902 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-33901 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-33902 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-33902 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53253B - BRACKET, RADIATOR MOUNTING, UPPER | ||||
| 53253-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 53253B - BRACKET, RADIATOR MOUNTING, UPPER | ||||
| 53253-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
2 | ||
| 53295E - SEAL, COOL AIR INTAKE DUCT | ||||
| 53295-33130 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53295J - CLIP, COOL AIR INTAKE DUCT SEAL | ||||
| 90467-07217 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
5 | ||
| 53299E - PLATE, COOL AIR INTAKE DUCT | ||||
| 53299-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER | ||||
| 53607-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-33190 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-33150 |
AXVH7# |
1 | ||
| 53702-33170 |
AXVH7# |
1 | ||
| 53703D - APRON SUB-ASSY, FRONT FENDER, NO.2 RH | ||||
| 53703-33060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53704G - APRON SUB-ASSY, FRONT FENDER, NO.2 LH | ||||
| 53704-33060 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-33020 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-33010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 53715F - APRON, FENDER SIDE, RH | ||||
| 53715-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53716F - APRON, FENDER SIDE, LH | ||||
| 53716-33010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-33100 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-33090 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-33060 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-33060 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-33050 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-33030 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53785A - GUSSET, FRONT FENDER APRON, UPPER RH | ||||
| 53785-33010 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53786B - GUSSET, FRONT FENDER APRON, UPPER LH | ||||
| 53786-33010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 53821G - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53822F - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-33070 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-33110 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-33120 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-33080 |
ASV70,AXVA70,AXVH7#,GSV70..EUR |
1 | ||
| 85667F - COVER, MOTOR | ||||
| 85667-10010 |
AXVH71 |
1 | ||
| 88940D - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-33050 |
AXVH71 |
1 | ||
| 88940-33070 |
AXVH71 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90109-08307 | ||||
| 90119-06786 | ||||
| 90119-06A11 | ||||
| 90119-06A13 | ||||
| 90178-10029 | ||||
| 90467-07214 | ||||
| 90541-09145 | ||||
| 90541-15033 | ||||
| 91635-A0616 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
