AXVH71L-AEXNBW (2021)
Toyota Camry/Hybrid

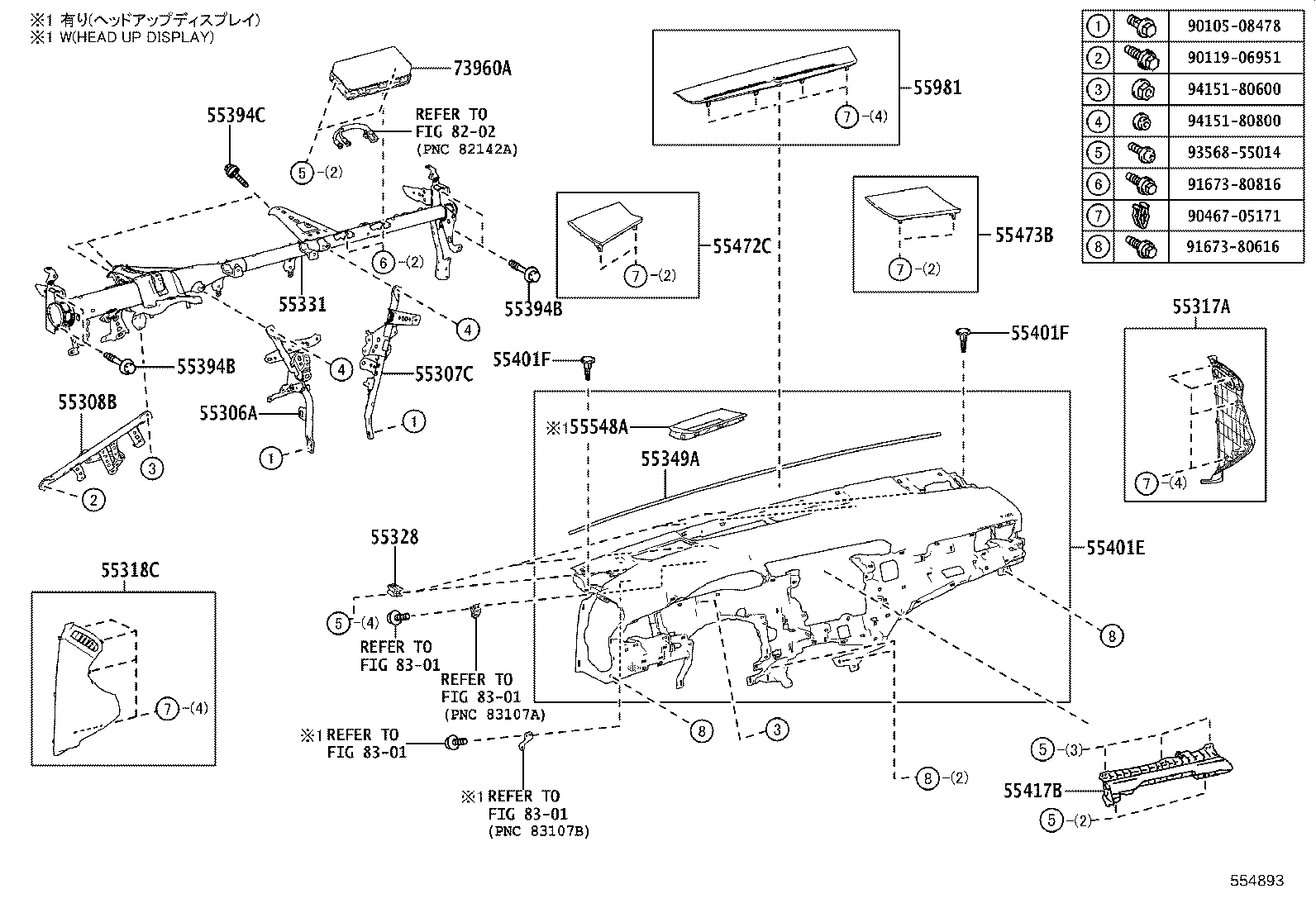

ILLUST NO. 1 OF 3(2102- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-33200 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-33230 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-33160 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-33170 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-33140 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
AXVA70,AXVH7#,GSV70,MXVA71 |
4 | ||
| 55328-60090 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
4 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-33470 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-33060 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
1 | ||
| 55349-33060 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
AXVA70,AXVH7#,GSV70,MXVA71 |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
AXVA70,AXVH7#,GSV70,MXVA71 |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 90119-08D16 |
AXVA70,AXVH7#,GSV70,MXVA71 |
3 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-33908B0 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55401-33908C2 |
AXVA70,AXVH7#,GSV70..LHD..(D,G,N)..EUR SOFT BLACK,TRIM2# |
1 | ||
| 55401-33909B0 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,NEUTRAL WARM GRAY,TRIM4# |
1 | ||
| 55401-33909C2 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6,SOFT BLACK,TRIM2# |
1 | ||
| 55401-33911C1 |
AXVH71..S SOFT BLACK,TRIM2#,3# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 52161-16010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 52161-16010 |
AXVA70..LHD;ASV7#,AXVH7#,GSV70..D,G,N |
2 | ||
| 55417B - RETAINER, RADIO TUNER FINISH | ||||
| 55417-33080 |
AXVH71..S |
1 | ||
| 55417-33030 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-33280 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-33130 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-33130 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-33160 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-33290 |
AXVA70,AXVH71,GSV70,MXVA71..G,N,S |
1 | ||
| 73960-33180 |
AXVH71..D |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8301 | ||||

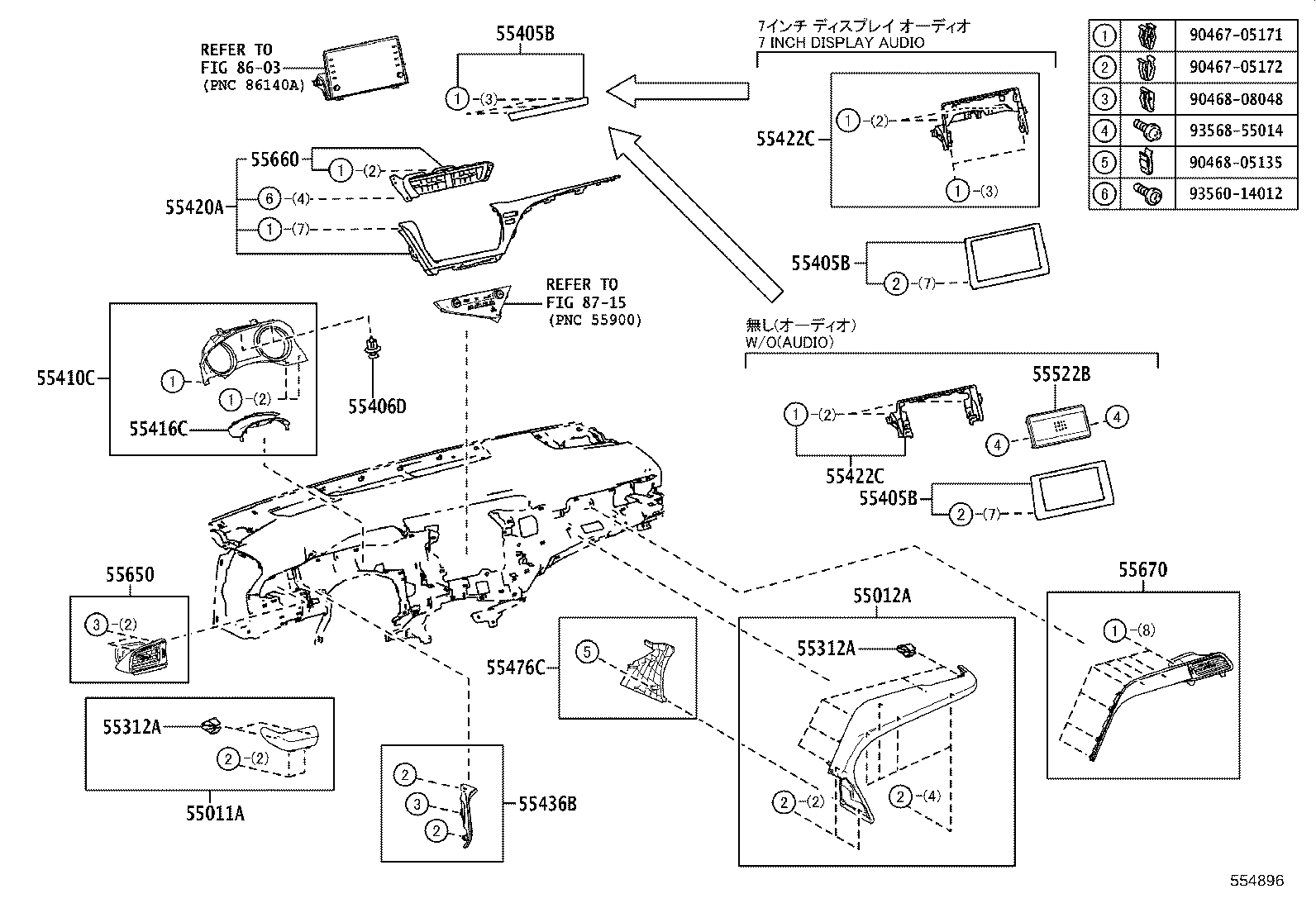

ILLUST NO. 2 OF 3(2102- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-33070C1 |
GSV70..RUS;AXVH71..LHD..D BLACK/GRAY,TRIM20 |
1 | ||
| 55011-33070A2 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) FROMAGE/DK.GRAY,TRIM4# |
1 | ||
| 55011-33070C4 |
MXVA71;AXVA70,AXVH7#,GSV70..LHD..(G,N)..EUR BLACK/DK.GRAY,TRIM2# |
1 | ||
| 55011-33080D2 |
AXVH71..S SENSUAL RED/GRAY,TRIM3# |
1 | ||
| 55011-33080C1 |
AXVH71..S BLACK/GRAY,TRIM2# |
1 | ||
| 55011-33070C4 |
AXVH71..LHD..D;AXVA70,GSV70..RUS BLACK/DK.GRAY,TRIM20 |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-33050C4 |
MXVA71;AXVA70,AXVH7#,GSV70..LHD..(G,N)..EUR BLACK/DK.GRAY,TRIM2# |
1 | ||
| 55012-33060D2 |
AXVH71..S SENSUAL RED/GRAY,TRIM3# |
1 | ||
| 55012-33050A2 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) FROMAGE/DK.GRAY,TRIM4# |
1 | ||
| 55012-33050C1 |
GSV70..RUS;AXVH71..LHD..D BLACK/GRAY,TRIM20 |
1 | ||
| 55012-33050C4 |
AXVH71..LHD..D;AXVA70,GSV70..RUS BLACK/DK.GRAY,TRIM20 |
1 | ||
| 55012-33060C1 |
AXVH71..S BLACK/GRAY,TRIM2# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
AXVA70,AXVH7#,GSV70,MXVA71 MELLOW WHITE |
7 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
AXVA70,AXVH7#,GSV70,MXVA71 MELLOW WHITE |
7 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-33330 |
AXVH71..D;AXVA70,MXVA71..RUS |
1 | ||
| 55405-33340 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 3 |
1 | ||
| 55405-33340 |
AXVH71,GSV70..G,N;AXVA70,AXVH70..EUR |
1 | ||
| 55405-33340 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 55405-33340 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 55405-33390 |
AXVH71..S |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-33330 |
AXVH71..D;AXVA70,MXVA71..RUS |
1 | ||
| 55405-33340 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 3 |
1 | ||
| 55405-33340 |
AXVH71,GSV70..G,N;AXVA70,AXVH70..EUR |
1 | ||
| 55405-33340 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 55405-33340 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 55405-33390 |
AXVH71..S |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-33330 |
AXVH71..D;AXVA70,MXVA71..RUS |
1 | ||
| 55405-33340 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 3 |
1 | ||
| 55405-33340 |
AXVH71,GSV70..G,N;AXVA70,AXVH70..EUR |
1 | ||
| 55405-33340 |
AXVH71..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 55405-33340 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 55405-33390 |
AXVH71..S |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165C3 |
AXVA70,AXVH7#,GSV70,MXVA71 BLACK |
2 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33120 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 55410-33080 |
GSV70..RUS;AXVH71..LHD..D;AXVA70,AXVH70,MXVA71..LHD |
1 | ||
| 55410-33120 |
AXVH71,GSV70..LHD..(G,N)..EUR |
1 | ||
| 55410-33120 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-33110 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 55416-33110 |
AXVH71,GSV70..LHD..(G,N)..EUR |
1 | ||
| 55416-33110 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 55416-33070 |
GSV70..RUS;AXVH71..LHD..D;AXVA70,AXVH70,MXVA71..LHD |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-33070 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-33070 |
AXVH71..LHD..D;AXVA70,MXVA71..RUS |
1 | ||
| 55422-33100 |
AXVH71..S |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-33070 |
AXVH71..LHD..D;AXVA70,MXVA71..RUS |
1 | ||
| 55422-33100 |
AXVH71..S |
1 | ||
| 55436B - CLUSTER, METER HOOD, NO.2 | ||||
| 55436-33100 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-33280E0 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55476-33280C0 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55476-33290C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
AXVH71..S |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33500 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33350 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33540 |
AXVH71..LHD..D;AXVA70,MXVA71..LHD |
1 | ||
| 55670-33560 |
AXVH7#,GSV70..LHD..(G,N)..EUR |
1 | ||
| 55670-33560 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 4 |
1 | ||
| 55670-33560 |
AXVH71..LHD..D EU SALE SPECIFICATIONS 6 |
1 | ||
| 55670-33580 |
AXVH71..S |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8715 | ||||

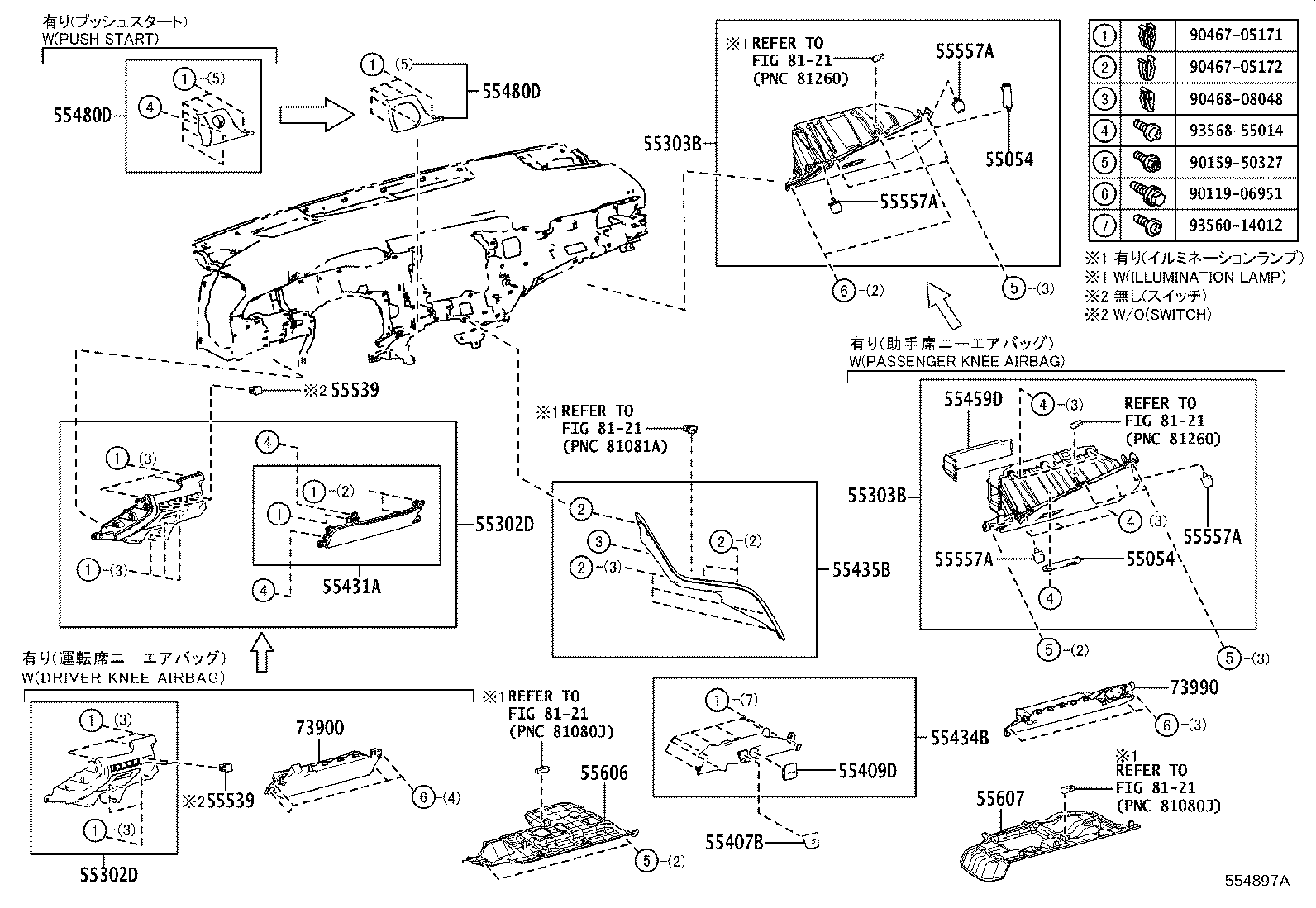

ILLUST NO. 3 OF 3(2102- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXVA70,AXVH71,GSV70,MXVA71 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AXVA70,AXVH71,GSV70,MXVA71 |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-33281E0 |
AXVH7#,GSV70..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33281C0 |
AXVH7#,GSV70..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55302-33331C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-33281E0 |
AXVH7#,GSV70..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55302-33281C0 |
AXVH7#,GSV70..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55302-33331C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-33330C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55303-33310E0 |
AXVA70,AXVH71,GSV70..LHD..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55303-33310C0 |
AXVA70,AXVH71,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-33330C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55303-33310E0 |
AXVA70,AXVH71,GSV70..LHD..EUR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55303-33310C0 |
AXVA70,AXVH71,GSV70..LHD..EUR BLACK,TRIM2# |
1 | ||
| 55407B - BASE SUB-ASSY, SWITCH HOLE | ||||
| 55407-33050C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55407-33100C1 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55407-33100E1 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409D - BASE SUB-ASSY, CIGAR LIGHTER | ||||
| 55409-33130C1 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55409-33120E1 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55409-33120C1 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-33110E1 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55434-33110C1 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55434-33130C1 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-33100 |
AXVA70,AXVH7#,GSV70,MXVA71..LHD |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-33190E0 |
AXVA70,MXVA71..RUS;AXVH7#,GSV70..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55480-33190C0 |
AXVA70,MXVA71..RUS;AXVH7#,GSV70..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55480-33210C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-33190E0 |
AXVA70,MXVA71..RUS;AXVH7#,GSV70..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55480-33190C0 |
AXVA70,MXVA71..RUS;AXVH7#,GSV70..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 55480-33210C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
AXVA70,AXVH7#,GSV70,MXVA71 BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
AXVA70,AXVH7#,GSV70,MXVA71 BLACK |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-33030 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33170 |
AXVA70,AXVH7#,GSV70..LHD..EUR |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-33120C0 |
AXVH7#,GSV70..LHD..(D,G,N) BLACK,TRIM2# |
1 | ||
| 73900-33130C0 |
AXVH71..S BLACK,TRIM2#,3# |
1 | ||
| 73900-33120E0 |
AXVH7#,GSV70..LHD..(D,G,N) NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
